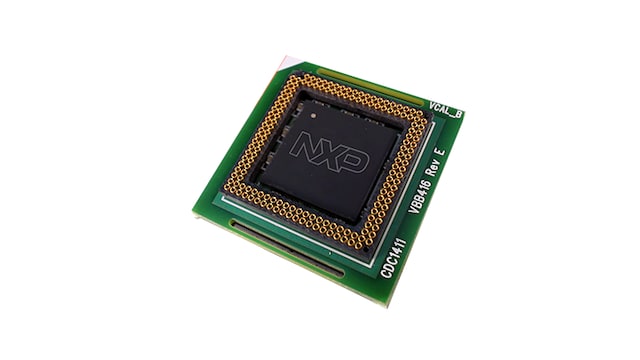

Name: MPC5565 VertiCal Base Boards
Price: 978.60 USD
Availability: BackOrder

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

MPC55xx MCU

MPC5565: 32-bit MCU for Automotive Powertrain and Industrial Applications

Features

Specifications

VertiCal system compatible
Standardized hardware across MPC5565 MCUs (using production silicon)
Up to 330 pins
Pitch 1.00 mm
Allows system calibration without impacting standard MCU I/O resources
Interconnect standard supported by multiple calibration tool developers
Support for simplified implementation of overlay memory
Flexibility to support new MCU features for prototyping use
Uses tried and tested technology

購入オプション

クリックして展開

LFVBBOM65U2A
アクティブ

Qorivva MPC5565 330 PIN 1.0MM Vertical Calibration Base Board.

キットの内容

Extraction Tool
Bill of Materials
Packing List

$978.60 USD

保留中の在庫

カートに入れる

代理店からの注文

販売代理店	地域	在庫	在庫日	注文

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

クリックして展開

LFVBBM65U1A
アクティブ

Qorivva MPC5565 324 PIN 1.0MM PGA Vertical Calibration Base Board.

キットの内容

Extraction Tool
Bill of Materials
Packing List

代理店からの注文

販売代理店	地域	在庫	在庫日	注文

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

ドキュメント

クイック・リファレンスドキュメンテーションの種類

4 ドキュメント

コンパクトリスト

LFVBBOM65U2A 2D Mechanical Drawing[LFVBBOM65U2A-LAYOUT1]

PDFApr 11, 2012改訂 0
LFVBBOM65U2A 3D Mechanical Drawing[LFVBBOM65U2A-INTERACTIVE]

PDFApr 11, 2012改訂 0
LFVBBM65U1A Mechanical Drawing[LFVBBM65U1A-LAYOUT]

PDFApr 9, 2012改訂 E
LFVBBM65U1A Mechanical Drawing[LFVBBM65U1A-INTERACTIVE]

PDFApr 9, 2012改訂 E
