I3C/I2C-Bus ±0.5 °C Accurate Digital Temperature Sensor
P3T1085UK アラートの受信
P3T1085UK is a ±0.5°C accurate temperature-to-digital converter with a -40 °C to +125 °C range. It uses an on-chip band gap temperature sensor and A-to-D conversion technique with overtemperature detection. The temperature register always stores a 12-bit complement data, giving a temperature resolution of 0.0625 °C.
P3T1085UK can be configured for different operation conditions: continued conversion, one-shot mode or shutdown mode. The device supports 2-wire serial I3C (up to 12.5 MHz) and I2C (up to 3.4 MHz) as communication interface. In I2C, the device supports up to four target addresses and an alert function. In I3C, the devices supports in-band interrupt (IBI), where the same bus is used to report the alert interrupts.
製品詳細
Features
Temperature Accuracy
- ±0.5°C accurate temperature sensor
- Internal 12-bit A-to-D converter (0.0625°C resolution)
- Programable under and over temperature alerts
Performance
- Operating voltage from 1.4V up to 3.6V
- Low quiescent current: 6µA (maximum)
Market Segments
- Consumer/Industrial: P3T1085UK
Plastic Package

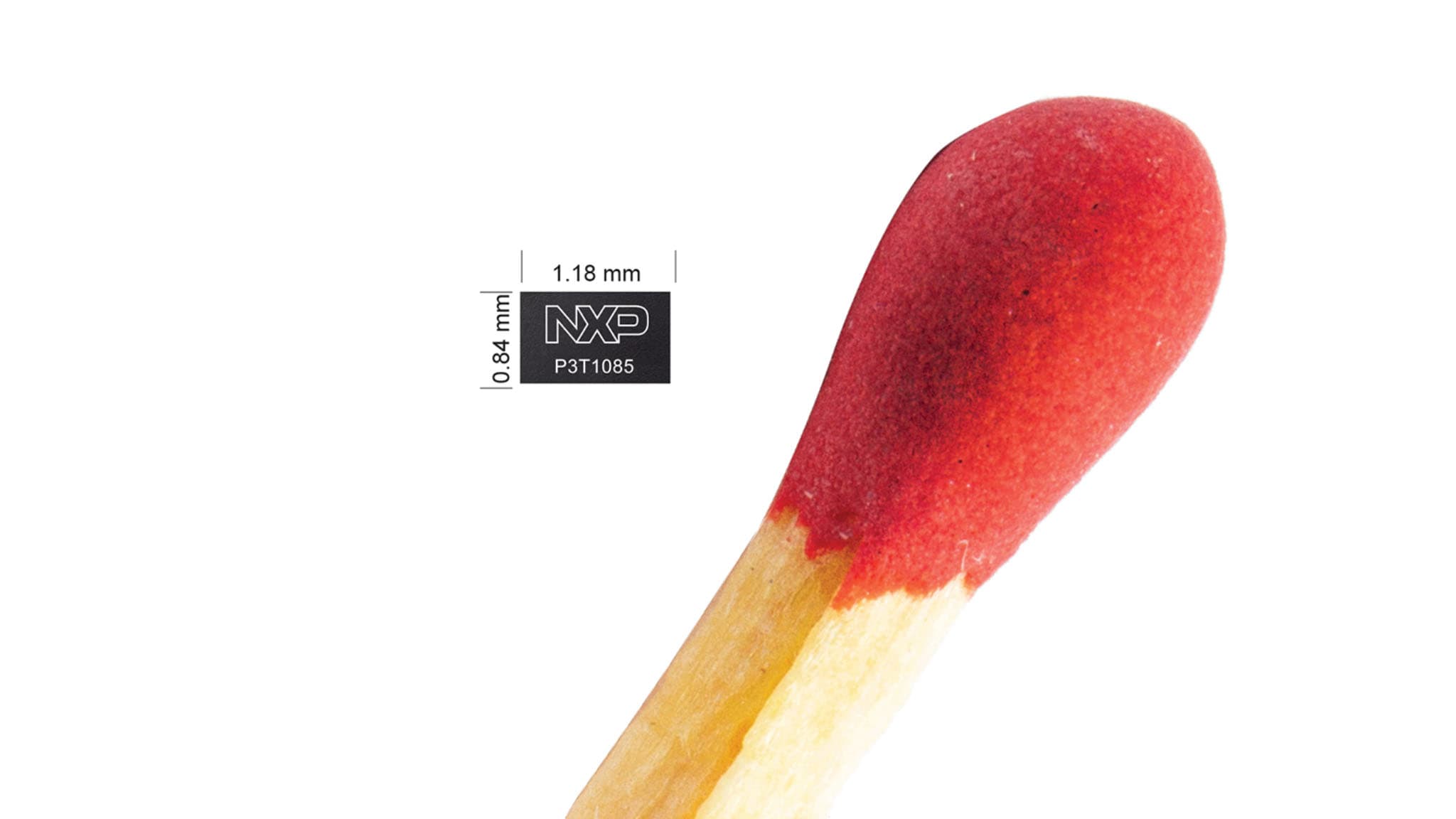

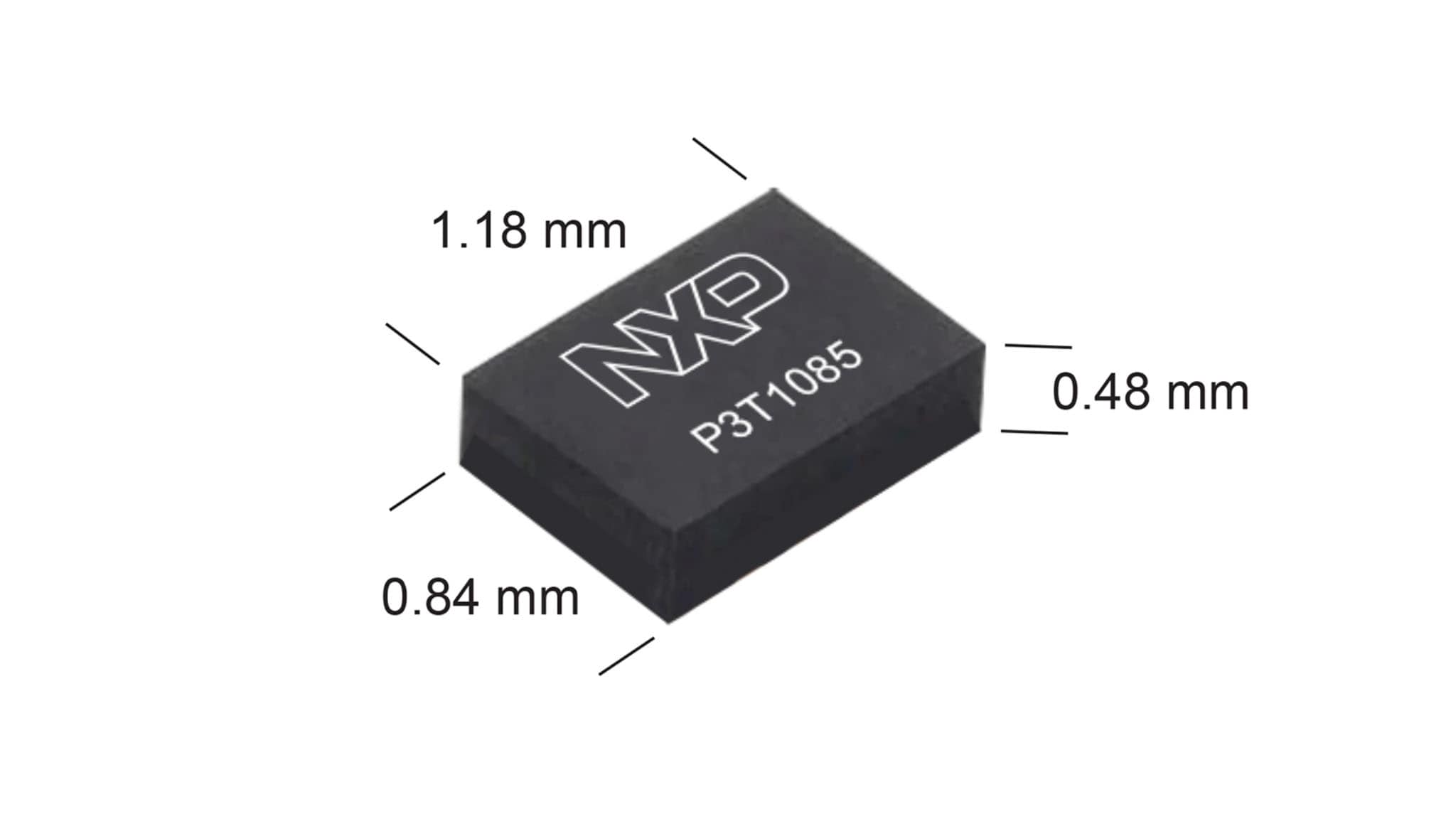

- WLCSP6: 1.18mm x 0.84mm x 0.48mm
