LS1088A

動画の上をクリックすると再生されます。

The LS10x8A family of multicore communications processors combines four up to and eight Arm^® Cortex^®-A53 cores with the advanced, high-performance data path and network peripheral interfaces required for wireless access points, networking infrastructure, intelligent edge access, including virtual customer premise equipment (vCPE) and high-performance industrial applications.

The Arm^® general-purpose processors and DPAA2 are supported by a powerful software toolkit that provides a higher level of hardware abstraction and makes software development quick and simple. This combination balances ease-of-use with high-performance processing in a Linux^® environment that is familiar to any software programmer.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

データシート

リファレンス・マニュアル

製品詳細

ブロック図

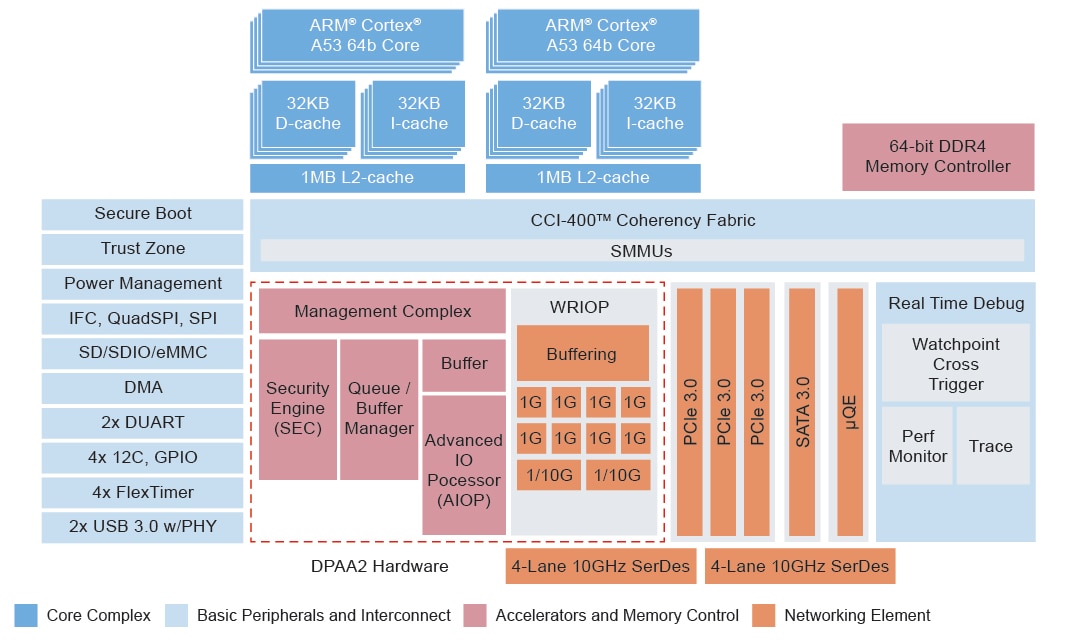

LS1088A Block Diagram

図を取得する PDF

Features

Core Complex

8x Cortex-A53 CPUs
- Up to 1.6 GHz with 64-bit ISA support
- Each two core clusters shares 1 MB L2 cache
1x 64-bit DDR4 up to 2.1GT/s
- ECC support

Networking Elements

Wire Rate I/O processor, featuring:
- 2x 10 GbE + 8x 1 GbE
- MACSEC on 4x 1G
- XFI/KR, QSGMII, SGMII/KX, RGMII
Advanced IO processor (AIOP)
- up to 10 Gb/s complex packet processing
10 Gb/s SEC crypto acceleration

Interfaces

Supports x4, x2, 3x1 PCIe Gen 3 controllers
SR-IOV support, Root Complex
1x SATA 3.0
2x USB 3.0 with PHY
2x TDM/HDLC interfaces

Additional Features

Support for HW virtualization and partitioning enforcement
Industry-standard APIs
Functional data path libraries
Tailored CodeWarrior^{^®} Development Suites

Original Design Manufacturers Partners

Description	Feature	Partner
Accton LS1088 Carrier uCPE & Enterprise SDWAN Platform	2-port 1 GbE RJ45/SFP Combo 8-port 1000Base-T Ethernet (RJ45) One SO-DIMM with 32G Bytes DDR4 DDR4 speed: 1600MT/s
Nexcom LS2088A Industrial 4.0 Edge Computing Gateway	NXP LS-series CPU LS2088A up to 8 CPU Cores, up to 2.0 GHz NXP LS2085/LS2088 communication processor, up to 2.0 GHz DDR4 2133/2400 UDIMM memory (1 x ECC slot, 4 x Non-ECC slot) 4 x port 1/10 GbE Copper, 4 x port SFP+

設計・リソース

ハードウェア

3 ハードウェア提供

^{評価・開発ボード}
Layerscape LS1088A Reference Design Board注目

LS1088A-RDB
^{エミュレータ、プローブ、プログラマ}
LS Processor Probe Tips for CodeWarrior TAP

CWH-CTP-CTX10-YE
^{エミュレータ、プローブ、プログラマ}
CodeWarrior^® TAP

CW_TAP

1-5 の 16 ハードウェア提供

^{評価・開発ボード}
STKLS10xxA

Embedded Cortex A53/A72 Evaluation Kit based on LS1046A, LS1043A, LS1088A with 10 Gbit Ethernet interfaces for many network professional applications.

By TQ-Systems GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
TRACE32 JTAG/SWD Debugger for ARM

Lauterbach is making world class microprocessor development tools since 1979. TRACE32 debug and real-time trace solutions support the whole range of NXP processors.

By Lauterbach Gold パートナー
^{テストアクセサリとデバッガ}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum パートナー
^{テストアクセサリとデバッガ}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum パートナー
^{コンパニオン・シリコンとモジュール}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold パートナー
^{組込みボードソリューション}

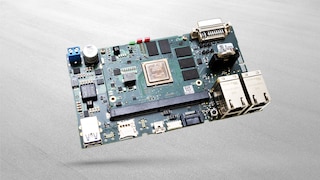

miriac® SBC-LS1088A
