i.MX8M Plus

動画の上をクリックすると再生されます。

The i.MX 8M Plus family focuses on machine learning and vision, advanced multimedia, and industrial automation with high reliability. It is built to meet the needs of Smart Home, Building, City and Industry 4.0 applications.

Powerful quad or dual Arm^® Cortex^®-A53 processor with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS.
Dual image signal processors (ISP) and two camera inputs for an effective advanced vision system.
The multimedia capabilities include video encode (including h.265) and decode, 3D/2D graphic acceleration, and multiple audio and voice functionalities.
Real-time control with Cortex-M7. Robust control networks supported by dual CAN FD and dual Gigabit Ethernet with Time Sensitive Networking (TSN).
High industrial reliability with DRAM inline ECC.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

データシート

リファレンス・マニュアル

製品詳細

ブロック図

i.MX 8M Plus Processors

図を取得する PDF

Features

Multicore Processing and Memory Interfaces

4x or 2x Cortex-A53 up to 1.8 GHz
Cortex-M7 up to 800 MHz
32-bit DDR4 & LPDDR4 up to 4.0GT/s

Machine Learning and Vision

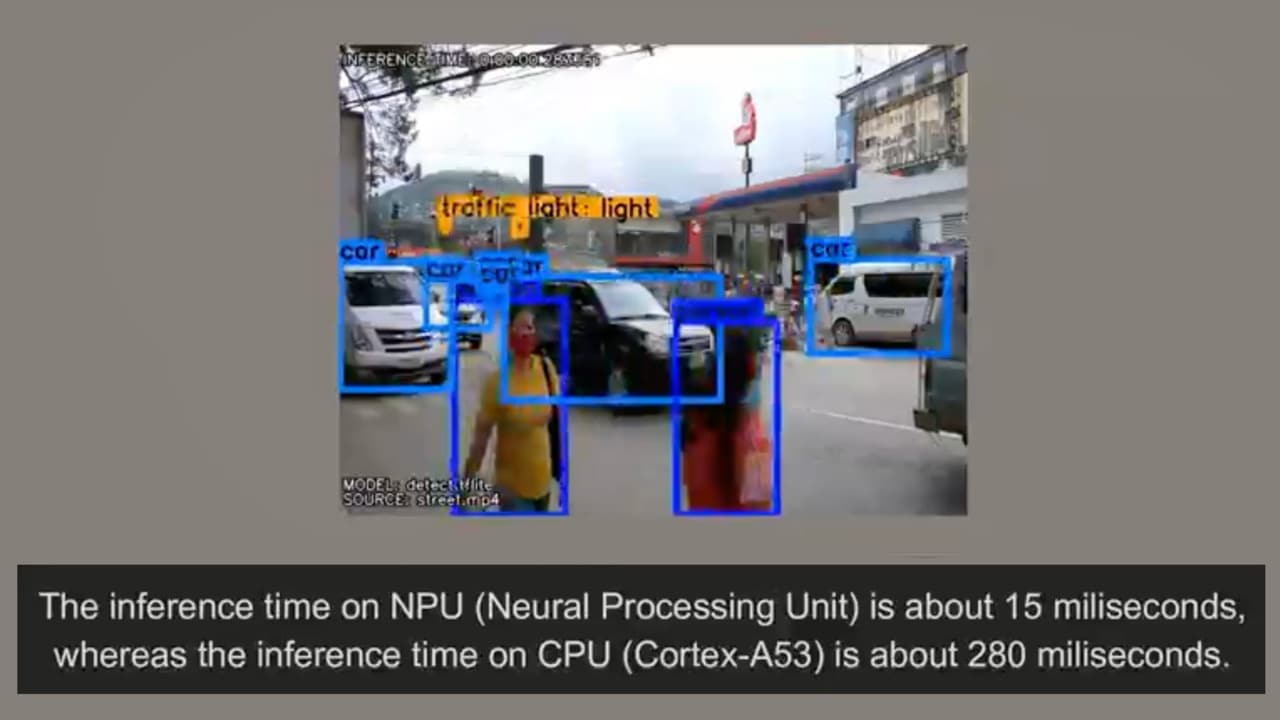

Neural Processing Unit (NPU): Delivers up to 2.3 TOPS
Dual Image Signal Processor (ISPs): Resolution up to 12MP and input rate up to 375MPixels/s
Camera Interface: 2x MIPI CSI

Advanced Multimedia and Display

Video Decode: 1080p60, h.265/4, VP9, VP8
Video Encode: 1080p60, h.265/4
GPU: 16 GFLOPS (high-precision) OpenGL^{^®} ES 3.1/3.0, Vulkan^®, Open CL^™ 1.2 FP, OpenVG^™ 1.1
Audio: 18x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-ch PDM Mic input, eARC, ASRC
Low power voice accelerator: Cadence^® Tensilica^® HiFi 4 DSP @ 800 MHz
Display: MIPI-DSI, HDMI 2.0a Tx, LVDS (4/8-lane) Tx

High Speed Interfaces

2x Gigabit Ethernet with AVB, IEEE 1588, EEE and 1x w/ TSN
2x USB 3.0/2.0 Dual-Role with PHY type C
PCIe Gen 3
3x SDIO 3.0
2x CAN FD

Industrial Reliability

DDR Inline ECC for LPDDR4 and DDR4
14 FinFET process with low soft error rate (SER)

Operating Systems

Linux^{^®}, Android^®, Windows 10 IoT Enterprise, FreeRTOS

Package and Temperature

FCBGA, 15x15 0.5 mm pitch
Consumer (0 °C to 95 °C Tj)
Industrial (-40 °C to 105 °C Tj)

Product Programs

EdgeLock^® Assurance

The i.MX 8M Plus applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.
