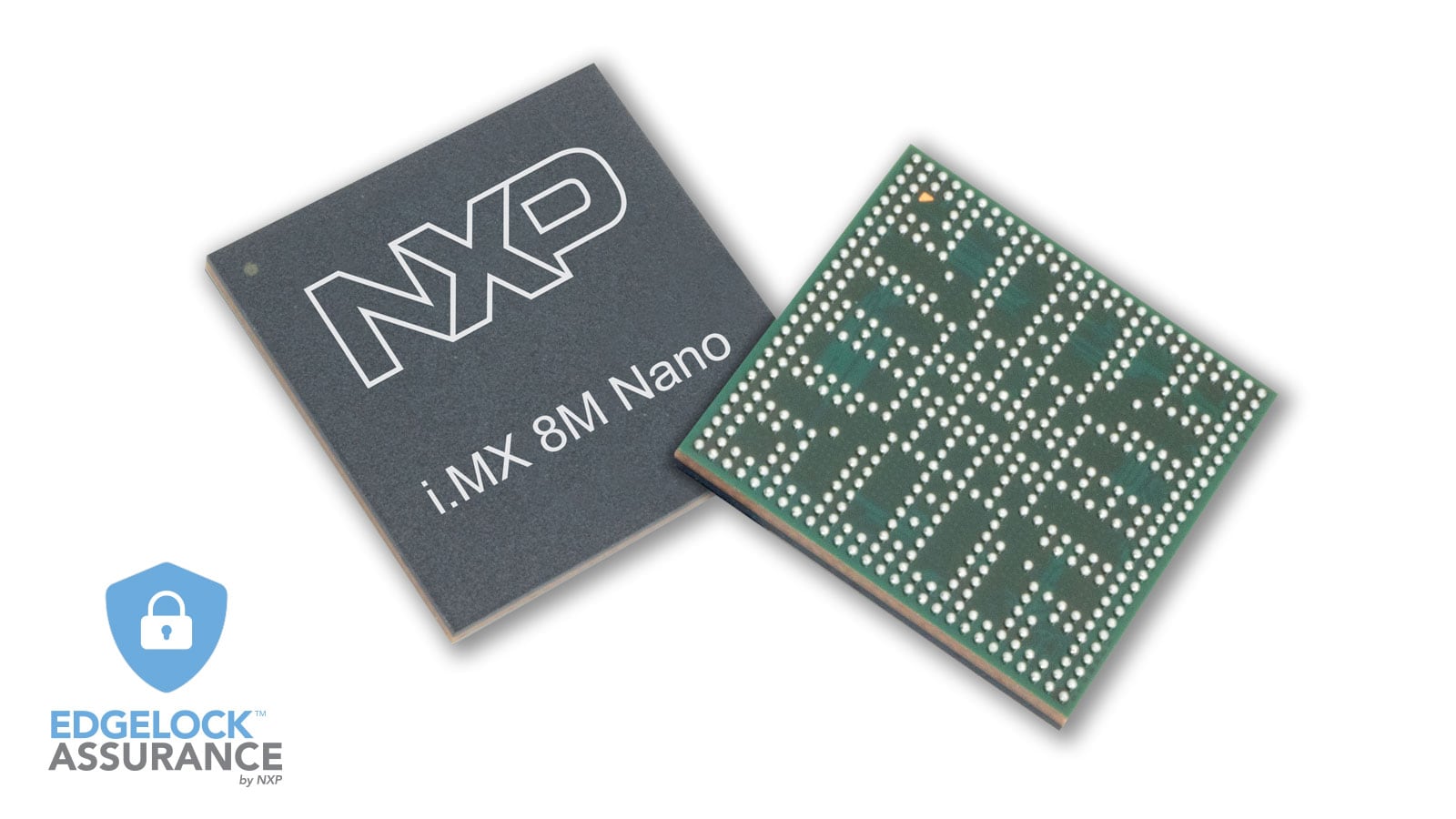

NXP's i.MX 8M Nano family of applications processors provide cost-effective integration and affordable performance for smart, connected, power-efficient devices requiring graphics, vision, voice control, intelligent sensing and general-purpose processing.

The i.MX 8M Nano family includes the *i.MX 8M Nano UltraLite (*currently in preproduction), the i.MX 8M Nano Lite, and i.MX 8M Nano. Click on the below button to view the main family key features and differentiators:

Key Features and Differentiation

Featuring up to 4x Arm® Cortex®-A53 cores and 1x Cortex-M7 core, the i.MX 8M Nano family of applications processors are pin-compatible, scalable offering to the popular i.MX 8M Mini applications processors. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Nano family may be used in any general purpose industrial and IoT application.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

データシート

リファレンス・マニュアル

製品詳細

ブロック図

i.MX 8M Nano Processors

図を取得する PDF

Features

Multicore Processing

4x Cortex-A53 core platforms up to 1.5GHz per core
32 kB L1-I Cache / 32 kB L1-D Cache
512 kB L2 Cache
1x Cortex-M7 core up to 750MHz
512 kB on-chip RAM (OCRAM)

GPU

3D GPU (2x shader, OpenGL^{^®} ES2.0/3.0/3.1, OpenCL^™ 1.2, Vulkan^®)
- *Not available on i.MX 8M Nano UltraLite and 8M Nano Lite

Display Interface

1x MIPI DSI (4-lane) with PHY

*Not available on i.MX 8M Nano UltraLite

Camera Interface

1x MIPI CSI (4-lane) with PHY

Audio

4x SAI (6Tx + 6Rx external I2S lanes)
8ch PDM input
Hardware Asynchronous Sample Rate Conversion (ASRC)

External Memory Interfaces

16-bit DRAM interface (LPDDR4-3200. DDR4-2400, DDR3L-1600)
8-bit NAND flash controller supports raw MLC/SLC (BCH62, ONFI3.2)
eMMC 5.0/5.1, SPI NOR, FlexSPI (XIP)

USB

1x USB 2.0 OTG controller with integrated PHY

Ethernet

1x Gigabit Ethernet (MAC) with AVB and IEEE 1588, Energy Efficient Ethernet (EEE) for low power

Operating Systems

Linux, Android, Windows 10 IoT Enterprise, FreeRTOS

Temperature

Consumer (0°C to 95°C Tj)
Industrial (-40°C to 105°C Tj)

Package

i.MX 8M Nano and Nano Lite: FCBGA, 14 x 14 0.5mm pitch
i.MX 8M Nano UltraLite: FCBGA, 11 x 11 0.5mm pitch

Family Comparison Table

**Products in preproduction **

	i.MX 8M Nano UltraLite Applications Processor	i.MX 8M Nano Lite Applications Processor	i.MX 8M Nano Applications Processor
Processor	1x / 2x / 4x Cortex-A53 (1.4 GHz)	1x / 2x / 4x Cortex-A53 (1.4 GHz / 1.5 GHz)
Processor	Cortex-M7 (750 MHz)
Display	No MIPI-DSI	4-lane MIPI-DSI with PHY
GPU	No GPU	No GPU	3D GPU: 2-shader, OpenGL^® ES 3.1, OpenCL 1.2, OpenGL^® Vulkan^®
Software	Linux, FreeRTOS^®	Linux, Android, FreeRTOS^®
Package Size	11 x 11	14 x 14

Product Programs

EdgeLock^® Assurance

The i.MX 8M Nano applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.

設計・リソース

設計・ファイル

3 設計・ファイル

^モデル
IBIS Model for i.MX 8M Nano UltraLite (11x11 package)

ZIP改訂 1May 3, 2021 16:40:009.2 MBIMX-8M-NANO-ULTRALITE-IBIS-ZIP

ダウンロード
^モデル
i.MX 8M Nano UltraLite (11X11) BSDL

ZIP改訂 0Jun 4, 2021 09:37:00649.8 KBIMX8M-NANO-ULTRALITE-11X11-BSDL
サインインが必要です

ダウンロード
^モデル
i.MX 8M Nano 14x14 IBIS Model

ZIP改訂 3Jan 8, 2021 08:09:008.7 MBIMX8MN-14x14

ダウンロード

ハードウェア

1-5 の 6 ハードウェア提供

^{評価・開発ボード}
Evaluation Kit for the i.MX 8M Nano Applications Processor注目

8MNANOD4-EVK
^{評価・開発ボード}
Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor注目

8MNANOD3L-EVK
^{評価・開発ボード}
i.MX Audio Board

MCIMX8M-AUD
追加ハードウェアを利用可能パートナー・ソリューションの特集を表示.
^{開発用ハードウェア - その他}
Murata NXP 88W8987 Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based module: Type 1ZM

MURATA-TYPE-1ZM
^{開発用ハードウェア - その他}
Azurewave Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based M.2 evaluation board: AW-CM358MA

AW-CM358
^{開発用ハードウェア - その他}
Eval kit for JODY-W263 Wi-Fi^®/Bluetooth^® module

UB-JODY-W263

全て表示

1-5 の 51 ハードウェア提供

^{評価・開発ボード}
conga-QKIT/ARM

This complete kit provides the ability to start evaluating Qseven® ARM modules immediately -Qseven Starter Kit for ARM -All accessories out of the box -Immediate evalu...

By congatec Gold パートナー
^{評価・開発ボード}
EVK-JODY-W2

Evaluation Kit for JODY-W263

By u-blox AG Gold パートナー
^{評価・開発ボード}
conga-SKIT/ARM i.MX8 SMARC 2.0 Development Kit

Starter Kit for congatec SMARC 2.0 Development -Starter Kit for SMARC 2.0 Development -All accessories out of the box -Immediate evaluation for SMARC 2.0

By congatec Gold パートナー
^{評価・開発ボード}
Starterkit PicoCore™MX8MN Linux

Extensive Starterkit with secure, industrial COM based on NXP i.MX 8M Nano running on Linux. It comes with a baseboard, display, and cable kit. Other accessories are opt...

By F&S Elektronik Systeme GmbH Gold パートナー
^{評価・開発ボード}
Ka-Ro QS8M QSBASE2 Evaluation Kit

Low-cost board for rapid evaluation and development of the QS8M Family. All functions and peripherals of the QS8M are available solder pads. Schematics and bill of mate...

By Ka-Ro electronics GmbH Gold パートナー
^{評価・開発ボード}

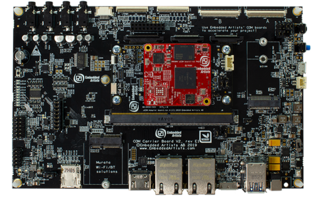

iMX8M Nano uCOM Developer's Kit
