Safety System Basis Chip (SBC) Family with Power Management, CAN and LIN
FS23 アラートの受信
- 製造開始前
- このページでは、試作品の情報を掲載しています。ここに記載されている仕様や情報は、予告なく変更されることがあります。追加情報については、 または営業担当者にお問い合わせください。

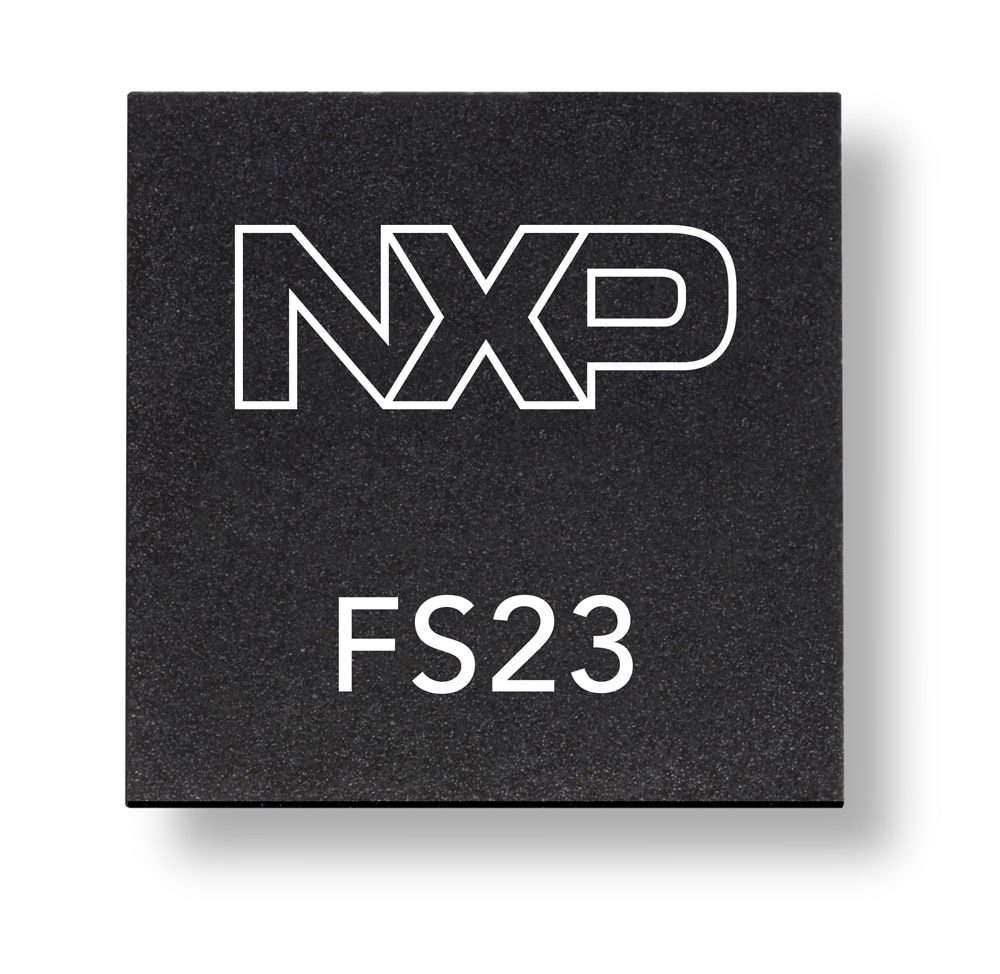

The FS23 system basis chip (SBC) offers an expandable family of devices which is pin-to-pin and software compatible. It is scalable from LDO version to DC-DC version as well as from QM to ASIL B. The FS32 SBC includes CAN and LIN transceivers along with a number of system features commonly found in the latest generation of automotive electronic control units (ECUs).
The FS23 SBC is system-added value, offering a high level of integration in order to optimize the bill of material (BOM) cost for the body and comfort market.
The device is suitable for S32K processor-based applications, as well as multi-vendor processors, thanks to its high level of flexibility.
FS23 silicon and enablement (documentation, software and boards) are available for select customers (NDA required). Please contact your local NXP sales representative for more information.
製品詳細
Features
Power Management
- Tree power rails to supply the microcontroller and sensors
- Scalable family from 100 mA to minimum 400 mA solution with a pin-to-pin compatibility
- Configurable voltages and power up / down sequences
- 3 power modes (run, low power ON and low power off) to manage low system quiescent current and faster wake-up
System Solutions
- CAN flexible data rate (FD) up to 5 Mbit/s transceiver and a LIN transceiver
- High side drivers with cyclic sense or wake-up source
- Analog multiplexer for system sensing
- Long duration timer with independent counter up to 194 days
- External voltage monitoring on the board
- Configurable GPIOs (high voltage and low voltage)
- Wake-up sources
- Advanced 'limp home' functionality
Functional Safety
- Scalable safety concept (QM and ASIL B) by design and process ISO 26262)
- Supports fail-safe features including an advanced watchdog
- Implements a ABIST on demand for latent fault monitoring
- Contains FCCU independent MCU HW monitoring to address several type of applications
Configuration and Enablement

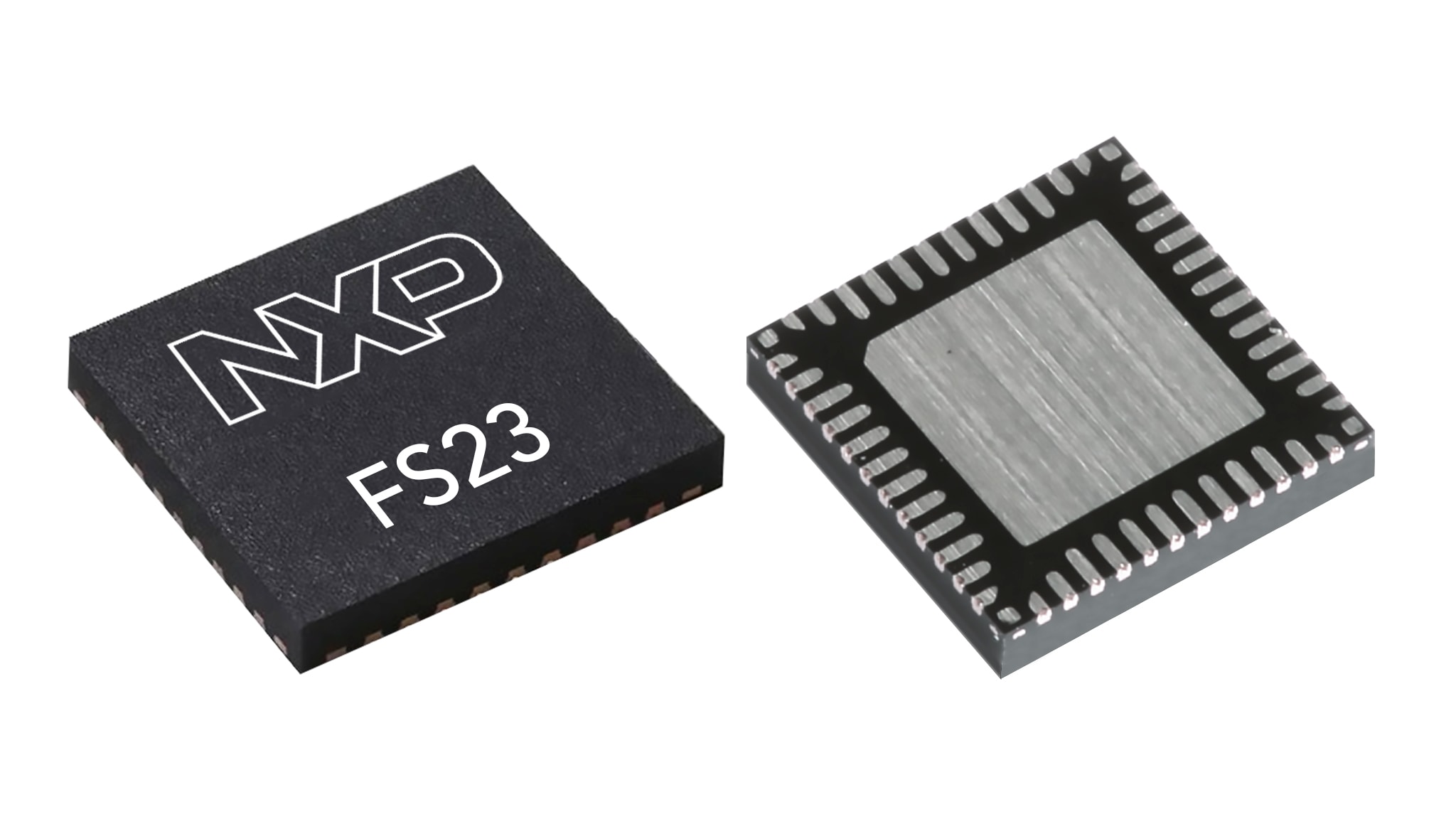

- QFN48 pins with exposed pad for optimized thermal management
- Permanent device customization via one-time-programming (OTP) fuse memory
- Temporary OTP emulation mode for system development and evaluation
比較表
|
High Voltage DC-DC
|
High Voltage LDO1
|
High Voltage LDO2
|
High Voltage LDO3
|
CAN FD Transceiver
|
LIN Transceiver
|
Long Duration Timer
|
32bit SPI/I2C
|
Analog Multiplexers
|
High Voltage IOs
|
Low Voltage IOs
|
Wake up pins
|
High Side Drivers
|
Watchdog
|
LIMP0/1/2
|
FCCU Monitoring
|
Fail Safe Output
|
External Voltage
|
ABIST on Demand
|
Functional Safety
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS2300M | QM | |||||||||||||||||||
| FS2301M | QM | |||||||||||||||||||
| FS2302M | QM | |||||||||||||||||||
| FS2303M | QM | |||||||||||||||||||
| FS2300B | ASIL B | |||||||||||||||||||
| FS2301B | ASIL B | |||||||||||||||||||
| FS2302B | ASIL B | |||||||||||||||||||
| FS2303B | ASIL B | |||||||||||||||||||
| FS2320M | QM | |||||||||||||||||||
| FS2321M | QM | |||||||||||||||||||
| FS2322M | QM | |||||||||||||||||||
| FS2323M | QM | |||||||||||||||||||
| FS2320B | ASIL B | |||||||||||||||||||
| FS2321B | ASIL B | |||||||||||||||||||
| FS2322B | ASIL B | |||||||||||||||||||
| FS2323B | ASIL B | |||||||||||||||||||
