H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz


NXP MC33887 Power Actuation

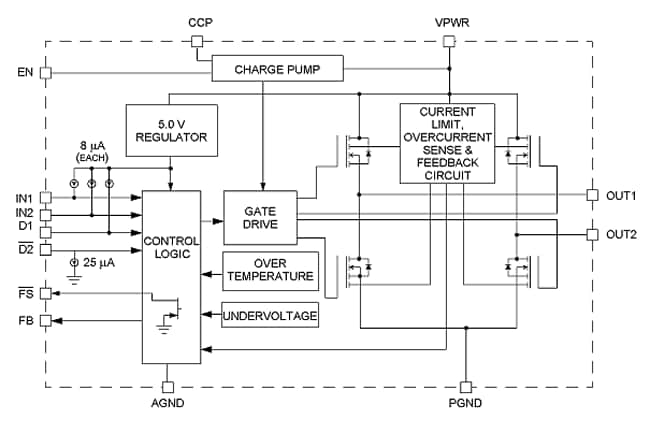

NXP MC33887 Internal Block Diagram


Key Features

  • Fully specified operation 5.0 V to 28 V
  • Limited operation with reduced performance up to 40 V
  • 120 mΩ RDS(ON) typical H-Bridge MOSFETs
  • TTL/CMOS compatible inputs
  • PWM frequencies up to 10 kHz
  • Active current limiting (regulation)
  • Fault status reporting
  • Sleep mode with current draw ≤50 μA (inputs floating or set to match default logic states)
  • Polarity control through two independent inputs
  • Exhibit high-impedance through two disable inputs
  • Load supply voltage min. 5 V, max. 28 V
  • Parallel interface and input control
  • Ambient operating temperature -40 to 125 °C

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC33887 is included in the 15-year program

部品番号: MC33887APVW, MC33887PEK, MC33887PFK, MC33887PNB.
