H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz

MC33886

The NXP® MC33886 is a monolithic power IC comprising control logic, charge pump, gate drive, and low RDS(ON)MOSFET output H-Bridge circuitry in a small surface mount package.

  • Six integrated low side drivers, three pre-drivers, a variable reluctance sensor input circuit, a voltage pre-regulator using an external pass transistor and two 5.0 volt internal regulators, one for the MCU VCC supply and one for use as a protected sensor supply
  • The current drive can be pulse-width modulated at frequencies to 10 kHz
  • Undervoltage, overtemperature, and overcurrent conditions are detected and reported via a status flag output
  • Typical applications include: DC-motor acme lead screw actuators, servo gear actuators, bi-directional thrust solenoids, and fractional horsepower DC-motor control
  • The KIT33887EKEVBE is the recommended evaluation board for the MC33886

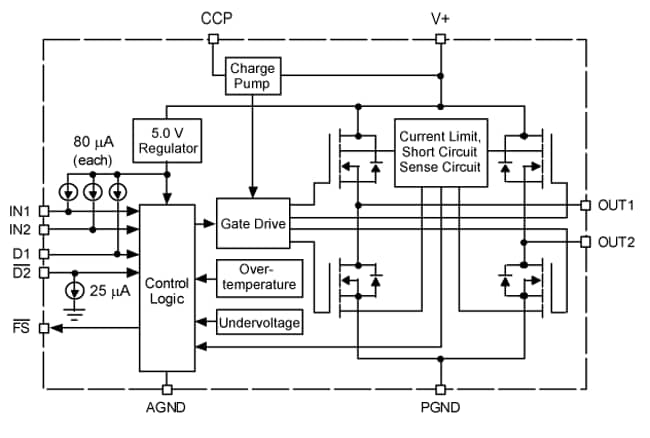

ブロック図

H-Bridge, Brushed DC Motor Driver, 5-28V, 5A, 10kHz

H-Bridge, Brushed DC Motor Driver, 5-28V, 5A, 10kHz
図を取得する PDF

Features

Key Features

  • Continuous DC Load Current up to 5.2 A min
  • Output Current Limitation at min. 5.2 A with PWM Current Regulation
  • Short-Circuit Shutdown for Output Currents over 8 A
  • Logic Inputs TTL/CMOS Compatible
  • Operating Frequency up to 10 kHz
  • Over temperature and Short Circuit Protections
  • Undervoltage Disable Function
  • Output control via two independent inputs (forward, reverse, free-wheeling low/high)
  • Two disable inputs are provided: Low = True and High = True
  • Load supply voltage min. 0 V, max. 30 V
  • Parallel interface and input control
  • Ambient operating temperature -40 to 125 °C
