Evaluation Kit - 33887, Inductive Load Driver

KIT33887EKEVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

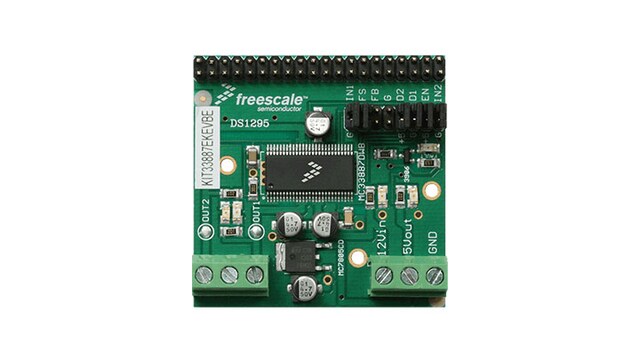

The KIT33887EKEVBE evaluation kit features the MC33887 monolithic power IC comprising control logic, charge pump, gate drive, and low RDS(on) MOSFET output H-Bridge circuitry contained in a small surface mount package.

  • Designed to drive inductive loads with RMS currents up to 5.2 A, in both directions
  • The current drive can be pulse width modulated (PWM) at frequencies up to 20 kHz
  • An internal current mirror circuit provides a proportional (1/375 th) sample of the output current, which may be used to provide feedback or load information to a MCU’s A/D input

製品詳細

対応製品

パワーマネージメント

BLDC、Hブリッジ、ステッパ

  • MC33886: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz
  • MC33887: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz

Features

Key Features

  • 120 mΩ RDS(ON) typical H-Bridge MOSFETs
  • PWM frequencies up to 10 kHz
  • Active current limiting (regulation)
  • Fault status reporting

Connectivity

  • TTL/CMOS compatible inputs

Power Management

  • Fully specified operation 5.0 V to 28 V
  • Limited operation with reduced performance up to 40 V
  • Sleep mode with current draw ≤50 μA (inputs floating or set to match default logic states)

購入オプション

KIT33887EKEVBE-Image

クリックして展開

  • KIT33887EKEVBE
    アクティブ

  • Evaluation Kit - MC33887EK, H-Bridge, 120mOhm RDSON Typical with Sleep Mode and Current Sense.

    • KIT33887EKEVBE Hardware
    • Quick Reference Guide
  • $104.65 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 20
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPKIT33887EKEVBEja 2 データ・シート Data Sheet t520 1 ユーザ・ガイド User Guide t792 1 ja 2 1 17.0 English The 33887 is a monolithic H-Bridge Power IC with a load current feedback feature making it ideal for closed-loop DC motor control. F992544609347 TSP 1.2 MB None None documents None F992544609347 /docs/en/data-sheet/MC33887.pdf 1244058 /docs/en/data-sheet/MC33887.pdf MC33887 N N 2018-09-17 MC33887, 5.0 A H-Bridge with Load Current Feedback - Data Sheet /docs/en/data-sheet/MC33887.pdf /docs/en/data-sheet/MC33887.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Sep 17, 2018 Data Sheet t520 データ・シート Data Sheet Y N MC33887, 5.0 A H-Bridge with Load Current Feedback - Data Sheet 2 2.0 English The KIT33887EKEVB evaluation kit features the MC33887 H-bridge power IC, which has a load current feedback function that is ideal for closed-loop DC motor control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. 1233598469418707840919 TSP 700.1 KB None None documents Y None 1233598469418707840919 /docs/en/user-guide/KT33887UG.pdf 700116 /docs/en/user-guide/KT33887UG.pdf KT33887UG N N 2009-02-06 KIT33887EKEVB, Evaluation Board - User Guide /docs/en/user-guide/KT33887UG.pdf /docs/en/user-guide/KT33887UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Apr 25, 2013 User Guide t792 ユーザ・ガイド User Guide Y N KIT33887EKEVB, Evaluation Board - User Guide false ja 0 false ja false 0 KIT33887EKEVBE downloads ja true 0 Y TSP データ・シート 1 /docs/en/data-sheet/MC33887.pdf 2018-09-17 F992544609347 TSP 1 Sep 17, 2018 Data Sheet データ・シート The 33887 is a monolithic H-Bridge Power IC with a load current feedback feature making it ideal for closed-loop DC motor control. None /docs/en/data-sheet/MC33887.pdf English 1244058 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33887.pdf MC33887, 5.0 A H-Bridge with Load Current Feedback - Data Sheet /docs/en/data-sheet/MC33887.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 17.0 N N MC33887, 5.0 A H-Bridge with Load Current Feedback - Data Sheet 1.2 MB MC33887 N F992544609347 ユーザ・ガイド 1 /docs/en/user-guide/KT33887UG.pdf 2009-02-06 1233598469418707840919 TSP 2 Apr 25, 2013 User Guide ユーザ・ガイド The KIT33887EKEVB evaluation kit features the MC33887 H-bridge power IC, which has a load current feedback function that is ideal for closed-loop DC motor control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. Y None /docs/en/user-guide/KT33887UG.pdf English 700116 None User Guide 2023-06-19 N /docs/en/user-guide/KT33887UG.pdf KIT33887EKEVB, Evaluation Board - User Guide /docs/en/user-guide/KT33887UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N N KIT33887EKEVB, Evaluation Board - User Guide 700.1 KB KT33887UG N 1233598469418707840919 true Y Tools
