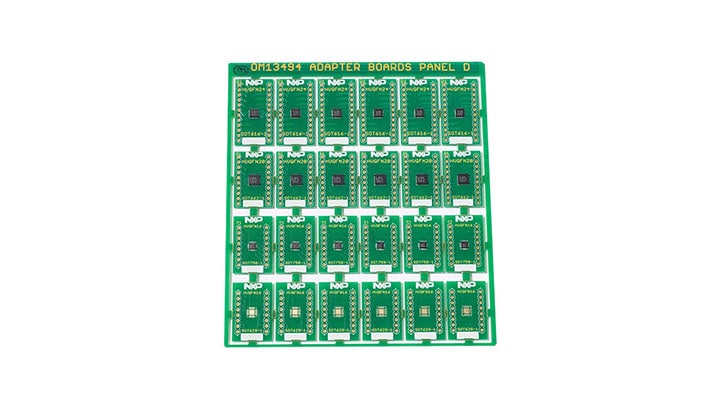

OM13494
-
Surface Mount to DIP Evaluation Board.
Surface Mount to DIP Evaluation Board
OM13494 アラートの受信
The OM13494 allows one to evaluate small, surface mount devices by breaking out the package leads to 100 mil centers pins, emulating a DIP package. The OM13494 supports the following packages: HVQFN24 (SOT616), HVQFN20 (SOT662), HVQFN16 (SOT758), HVQFN14 (SOT629).
製品詳細
対応製品
インターフェース
汎用I/O (GPIO)
- PCA9670BS: Remote 8-Bit I/O Expander for Fm+ I²C-Bus with Reset
- PCA6408A: Low-Voltage, 8-Bit I²C-Bus and SMBus I/O Expander with Interrupt Output, Reset and Configuration Registers
- PCA9500: 8-Bit I2C-Bus and SMBus I/O Port with 2-Kbit EEPROM
- PCA9534: 8-Bit I²C-Bus and SMBus Low Power I/O Port with Interrupt
- PCA9538: 8-Bit I²C-Bus and SMBus Low-Power I/O Port with Interrupt and Reset
- PCA9538A: Low-Voltage 8-Bit I²C-Bus I/O Port with Interrupt and Reset
- PCA9554_PCA9554A: 8-Bit I²C-Bus and SMBus I/O Port with Interrupt
- PCA9554B_PCA9554C: Low-Voltage 8-Bit I²C-Bus and SMBus Low Power I/O Port with Interrupt, Weak Pull-Up
- PCA9557: 8-Bit I²C-Bus and SMBus I/O Port with Reset
- PCA9574: 8-Bit I²C-Bus and SMBus, Level Translating, Low Voltage GPIO with Reset and Interrupt
- PCA9672: Remote 8-Bit I/O Expander for Fm+ I²C-Bus with Interrupt and Reset
- PCA9674_PCA9674A: Remote 8-Bit I/O Expander for Fm+ I²C-Bus with Interrupt
- PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander
- PCAL9538A: Low-Voltage 8-Bit I²C-Bus and SMBus Low-Power I/O Port with Interrupt, Reset and Agile I/O
- PCAL9554B_PCAL9554C: Low-Voltage 8-Bit I²C-Bus and SMBus Low-Power I/O Port with Interrupt, Weak Pull-Up and Agile I/O
アナログとミックスド・シグナル
電圧レベル変換器
- NVT2003_06: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
Features
Key Features
- 100 mil center headers emulate DIP package for easy bread boarding
- Allows evaluation of device that is only available in surface mount packages
- Eliminates costly sockets and custom printed circuit boards
Connectivity
- Easy connection to small surface mount packages
- Expand the kit with add-on I²C daughter cards
