TEA2017DB1580
-
240 W Demo Board.
Kit contains
- TEA2017DB1580 demo board
設計・ファイル
2 設計・ファイル
-
プリント基板と回路図
TEA2017DB1580 Design Files
-
プリント基板と回路図
Schematics for the TEA2017DB1580 Evaluation Board
240 W Demo Board
TEA2017DB1580 アラートの受信

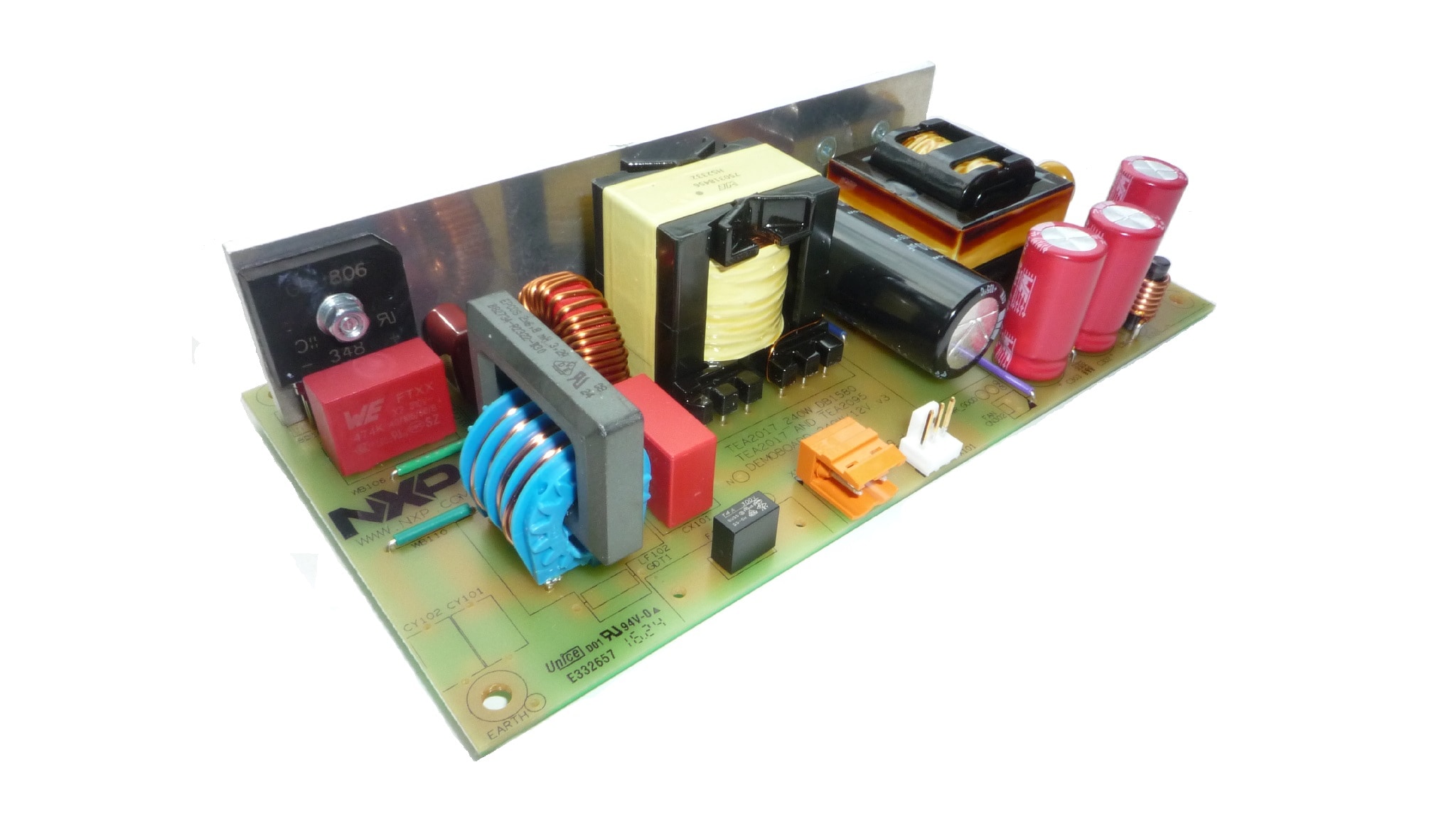

The TEA2017DB1580 is a 240 W demo board built around the TEA2017, which includes both the PFC and LLC controller.
The PFC can be configured to operate in DCM/QR, fixed frequency or multimode (DCM/QR/CCM). The input current is shaped such that an optimum THD/PF is reached. The no-load power consumption is below 100 mW and the efficiency can meet the efficiency regulations of Energy Star, the Department of Energy (DoE), the Ecodesign Directive of the European Union, the European Code of Conduct and other guidelines.
The board is on-the-fly digital configurable, which means that the properties of the TEA2017 can be adapted while the circuit is working.
製品詳細
Features
Distinctive Features
- Output 12 V/20 A
- Input voltage range 90 V-264 V
- DCM/QR/CCM fixed frequency mode PFC controller
- Excellent PF and THD performance
- Integrated X-capacitor discharge without additional external components
- Power good function
- Digital configurable
- Synchronous rectifier at secondary side
Green Features
- No-load power < 100 mW
- High efficiency from low load to high load
Protection Features
- Overpower protection (OPP)
- Brown-in/brown-out protection
- Overcurrent protection (OCP)
- Capacitive mode regulation (CMR)
- Accurate overvoltage protection (OVP)
- Inrush current protection (ICP)
- Supply undervoltage protection (UVP)
- Internal and external overtemperature protection (OTP)
- Independently configurable levels and timers
- Many protections can independently be set to be latched, safe restart or latched after several attempts to restart
購入オプション
設計・リソース
サポート
関連ハードウェア:

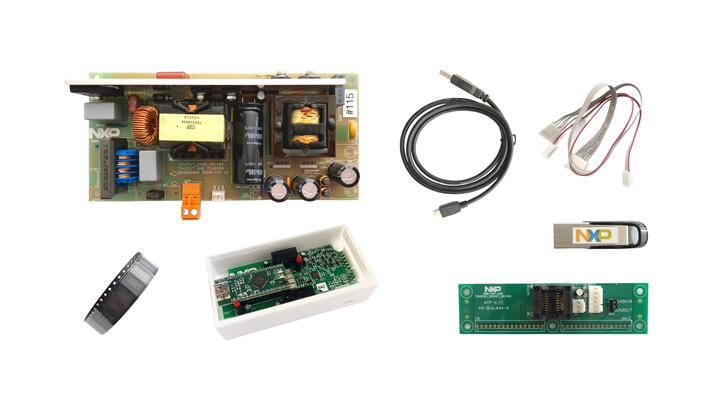

TEA2017 PFC + LLC Resonant Power Supply Development Kit
