eIQ® Inference with TensorFlow™ Lite

eIQTensorFlowLite

Integrated into NXP's Yocto development environment, eIQ software delivers TensorFlow Lite for NXP’s MPU platforms. Developed by Google to provide reduced implementations of TensorFlow (TF) models, TF Lite uses many techniques for achieving low latency such as pre-fused activations and quantized kernels that allow smaller and (potentially) faster models. Furthermore, like TensorFlow, TF Lite utilizes the Eigen library to accelerate matrix and vector arithmetic.

TF Lite defines a model file format, based on FlatBuffers. Unlike TF’s protocol buffers, FlatBuffers have a smaller memory footprint allowing better use of cache lines, leading to faster execution on NXP devices. TF Lite supports a subset of TF neural network operations, and also supports recurrent neural networks (RNNs) and long short-term memory (LSTM) network architectures.

ソフトウェア詳細

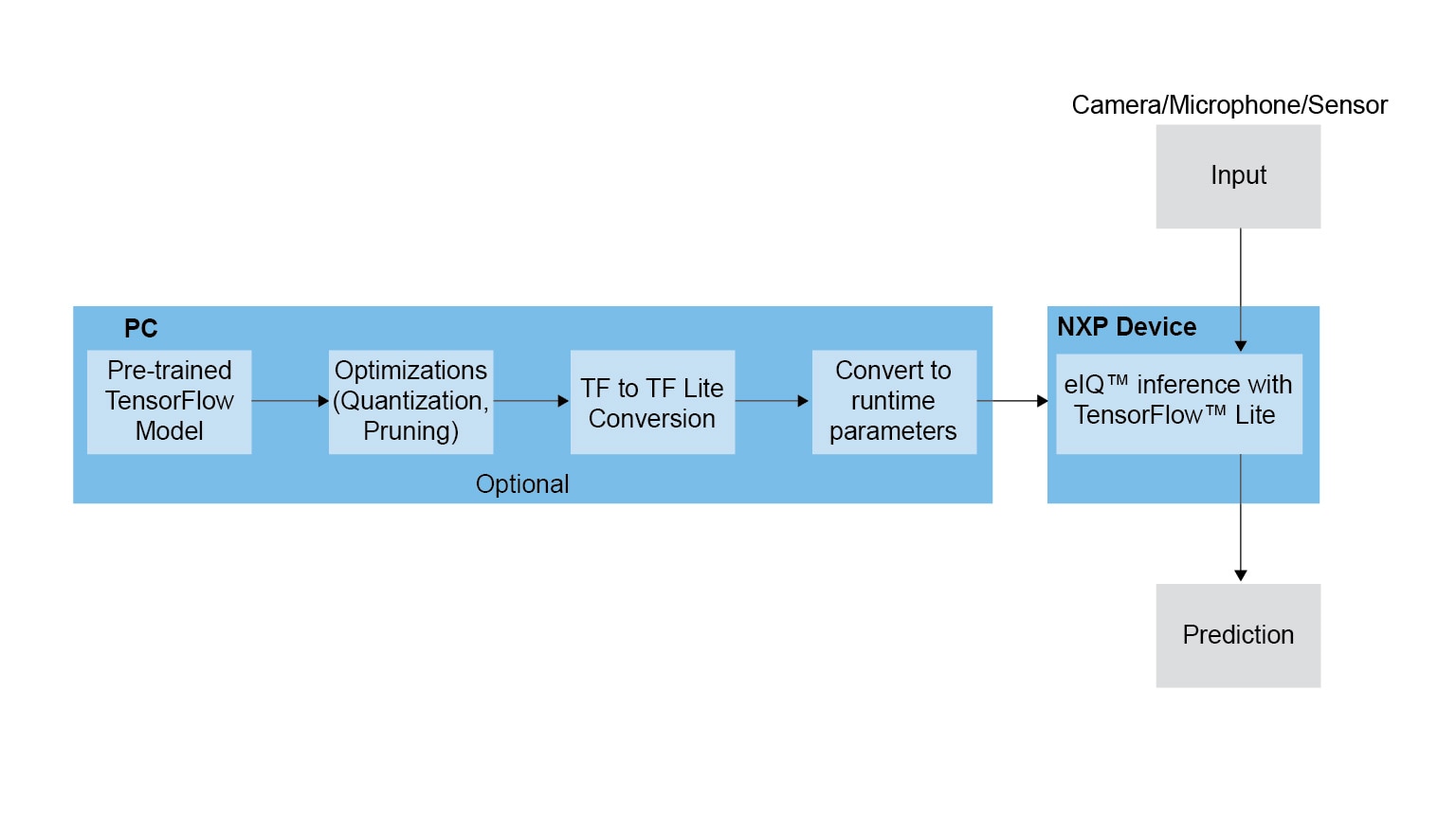

図

eIQ® TensorFlow Lite

eIQ<sup>&reg;</sup> TensorFlow Lite
図を取得する PDF

Features

  • Delivered as middleware in NXP Yocto BSP releases
  • NXP eIQ software support available for i.MX applications processors
  • Provides the ability to run inferencing on Arm® Cortex®-M, Cortex-A, Verisilicon GPUs and NPU
  • Faster and smaller than TensorFlow — enables inference at the edge with lower latency and smaller binary size
  • Uses open source libraries to accelerate matrix and vector arithmetic (Eigen and GEMMLOWP)
  • NXP optimized implementation of GEMMLOWP uses Arm® Cortex®-M7 SIMD instructions yielding 2-3x performance increase compared to out-of-the-box implementation

対応製品

  • i.MX8: i.MX 8ファミリ - Arm® Cortex®-A53、Cortex-A72、仮想化、ビジョン、3Dグラフィックス、4Kビデオ
  • i.MX8M: i.MX 8Mファミリ - Arm® Cortex®-A53、Cortex-M4、オーディオ、音声、ビデオ
  • i.MX8MMINI: i.MX 8M Mini - Arm® Cortex®-A53、Cortex-M4搭載、オーディオ、音声、ビデオ向け
  • i.MX8MNANO: i.MX 8M Nanoファミリ - Arm® Cortex®-A53、Cortex-M7
  • i.MX8X: i.MX 8Xファミリ - Arm® Cortex®-A35、3Dグラフィックス、4Kビデオ、DSP、DDRの誤り訂正符号 (ECC)
