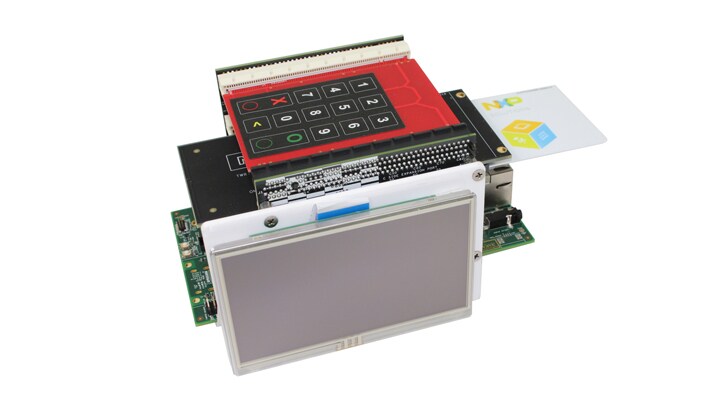

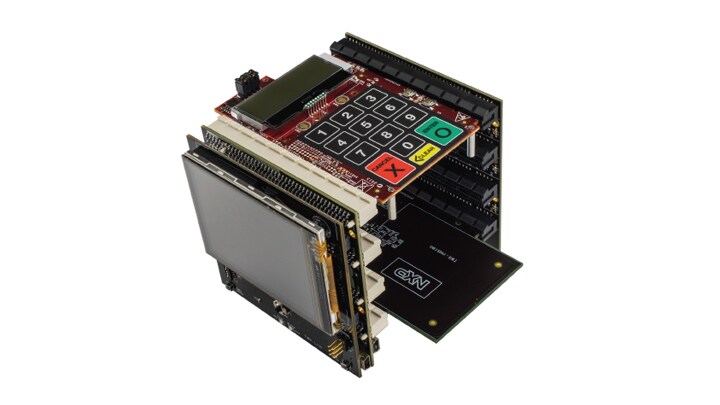

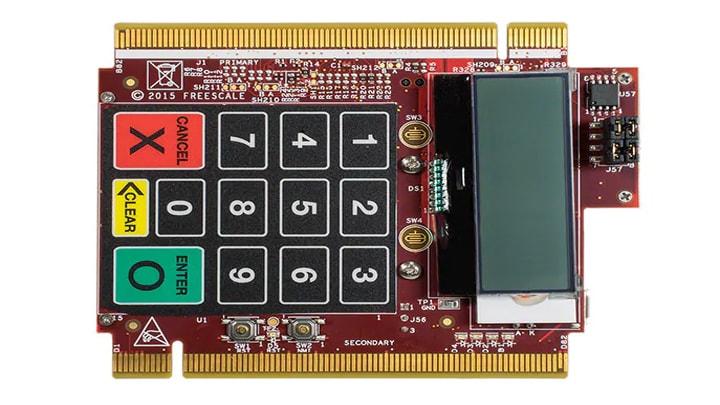

Point of Sale (PoS) terminals are key elements in payment systems for retailers or restaurants in Smart Cities. These battery-powered terminals have small form factors and can integrate functions such as a display, a card reader, a keypad and a printer. Terminals usually include wireless communication to a back-office server or a main stationary ePOS terminal. They also support magnetic, smart and contactless payment cards.

NXP solutions power secure, on-the-go mobile payment terminals, providing end users the ease-of-use of contact and contactless payment. Our security features help the designer to get the necessary PCI PTS PIN entry device (PED) and EMVCo certifications.

アプリケーションの詳細

ブロック図

POS

の推奨製品です。:

POS

ブロックを選択すると、推奨製品が表示されます。.

  • PCF85053A: 2つのI2Cバス、128バイトSRAM、およびアラーム機能を備えたブータブルCPU RTC
  • PCF2129: Accurate RTC with Battery Backup
  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal
  • TDA8035HN: High-Integrated and Low-Power Smart Card Interface
  • TDA8026ET: Multiple Smart Card Slot Interface
  • PN5190: NFC Frontend supporting challenging RF environment for payment, physical access control
  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander
  • PCAL9722: Agile I/O機能搭載22ビットSPI I/Oエクスパンダ
  • PCAL9714: Agile I/O機能搭載14ビットSPI I/Oエクスパンダ
  • MWPR1516: 15 Watt Wireless Charging Receiver ICs
  • PCA9306: Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator
  • P3A9606: Dual Bidirectional I3C/I2C-Bus and SPI Voltage-Level Translator
  • NX5P3290UK: USB PD and Type-C Current-Limited Power Switch
  • PCA9632: 4-Bit Fm+ I²C-Bus Low-Power LED Driver
