Arm® Cortex®-M0+|Kinetis® KW41Z 2.4 GHz Bluetooth Low Energy Thread Zigbee Radio MCUs

動画の上をクリックすると再生されます。

Note: K32W061/41 is preferred for any new Zigbee^®, Thread and Bluetooth^® LE 5.0 design. No new software releases planned

The KW41Z is an ultra-low-power, highly-integrated single-chip device that enables Bluetooth^® Low Energy v4.2 and IEEE^® 802.15.4 RF connectivity for portable, extremely low-power embedded systems. Applications include portable healthcare devices, wearable sports and fitness devices, AV remote controls, computer keyboards and mice, gaming controllers, access control security systems, smart energy, and home area networks.

The KW41Z MCU integrates a 2.4 GHz transceiver supporting FSK/GFSK and O-QPSK modulations, an Arm^® Cortex^®-M0+ CPU, up to 512 KB Flash and up to 128 KB SRAM, 802.15.4 packet processor, hardware security and peripherals optimized to meet the requirements of the target applications.

The KW41Z is an ideal solution for true single-chip designs that require concurrent communication on both a Bluetooth Low Energy network and an 802.15.4 based network such as Thread and Zigbee. This multi-mode capability enables direct communication using Bluetooth Low Energy via a mobile device and participating in a mesh network for local and remote control/monitoring.

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by NXP^® Semiconductors is under license.

データシート

リファレンス・マニュアル

製品詳細

ブロック図

Kinetis^® W Series KW40Z MCUs Block Diagram

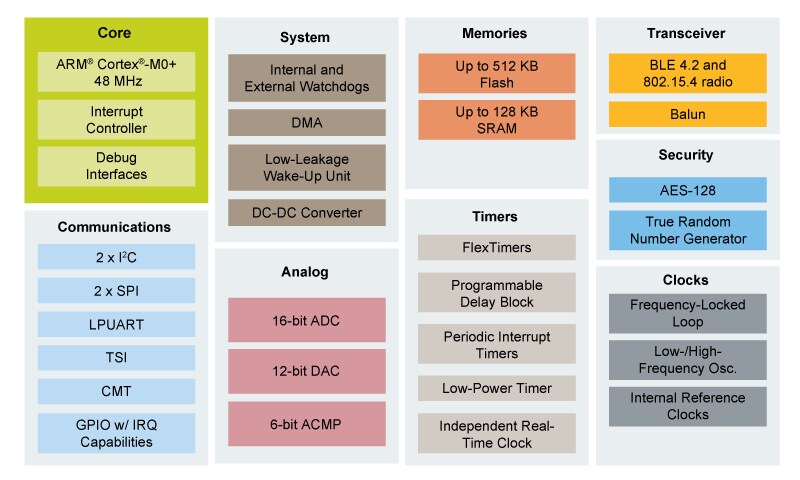

Kinetis<sup>®</sup> W Series KW41Z MCUs Block Diagram

図を取得する PDF

Features

Multi-Protocol Radio

2.4 GHz Bluetooth Low Energy version 4.2 Compliant
IEEE Std. 802.15.4 Standard Compliant
Typical Receiver Sensitivity (Bluetooth Low Energy) = -95 dBm
Typical Receiver Sensitivity (802.15.4) = -100 dBm
Programmable Transmitter Output Power up to +3.5 dBm

Core and Memories

Up to 48 MHz Arm^® Cortex^®-M0+ core
Up to 512 KB Flash memory
Up to 128 KB SRAM
Excellent coexistence performance
Integrated balun to reduce system cost and PCB board area

Low Power Consumption and Operating Voltage Ranges

Nine low-power modes to provide power optimization based on application requirements
Typical Rx/Tx Current (DC/DC Enabled): 6.5 mA / 8.4 mA
Typical Rx/Tx Current (DC/DC Enabled): 6.8/6.1 mA
Bypass Voltage: 1.71V to 3.6V
DCDC Converter Buck Configuration: 2.1V to 4.2V
DCDC Converter Boost Configuration: 0.9V to 1.795V

Analog modules

16-bit Analog-to-Digital Converter (ADC)
12-bit Digital-to-Analog Converter (DAC)
6-bit High Speed Analog Comparator (CMP)

Security

AES-128 Accelerator (AESA), True Random Number Generator (TRNG)

Supported Software

Bluetooth Low Energy Host Stack and Profiles
Generic FSK Link Layer Software

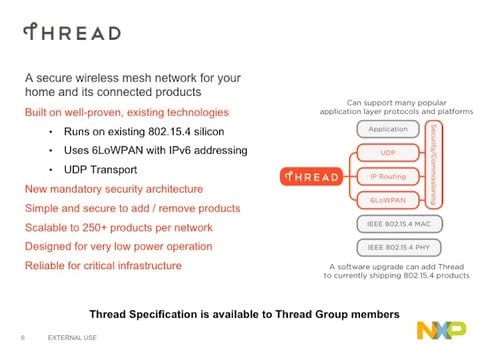

Thread
Thread + Bluetooth Low Energy Stack
Zigbee 3.0
Zigbee 3.0 + Bluetooth Low Energy Stack
Kinetis^® Software Development Kit (SDK)
FreeRTOS kernel and a bare-metal non-preemptive task scheduler
Support for MCUXpresso and IAR

比較表

Kinetis KW41Z Family Solutions

Part Number	Wireless Connectivity Protocol	Memory	Package Size	Hardware Development Tool
MKW41Z512VHT4	Bluetooth Low Energy and IEEE 802.15.4	512 KB Flash, 128 KB RAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN	FRDM-KW41Z USB-KW41Z
MKW41Z256VHT4		256 KB Flash, 64 KB SRAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN
MKW41Z512CAT4R		512 KB Flash, 128 KB RAM	3.9 mm x 3.8 mm 75-pin WLCSP
MKW31Z512VHT4	Bluetooth Low Energy	512 KB Flash, 128 KB RAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN
MKW31Z256VHT4		256 KB Flash, 64 KB SRAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN
MKW31Z512CAT4R		512 KB Flash, 128 KB RAM	3.9 mm x 3.8 mm 75-pin WLCSP
MKW21Z512VHT4	IEEE 802.15.4	512 KB Flash, 128 KB RAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN
MKW21Z256VHT4	IEEE 802.15.4	256 KB Flash, 64 KB SRAM	7 mm x 7 mm x 1 mm 48-pin Laminate QFN
