High-Performance NFC Controller with Integrated Firmware for Smart Devices

PN7150
  • 新規採用非推奨
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

画像にカーソルを合わせると拡大表示されます。

Please check the new online NFC Antenna Tool for tag and reader devices.

Optimized for fast design-in, NXP’s PN7150 NFC solutions fully comply with the NFC Forum, including Linux® and AndroidTM drivers and support NCI 1.0 host communication. Latest supported Android is Android 11. For later newer Android versions, please use PN7160.

PN7150 is the high-performance version of PN7120, the plug’n play NFC solution for easy integration into any OS environment, reducing Bill of Material (BOM) size and cost. PN71xx controllers are ideal for home-automation applications such as gateways and work seamlessly with NFC connected tags.

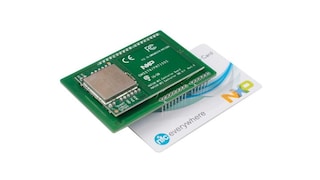

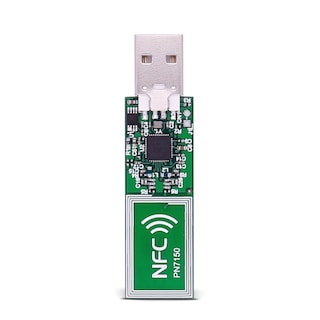

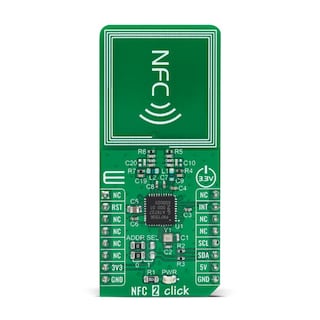

These NFC controllers support the most popular platforms, Raspberry Pi®, BeagleBone® Black and any boards featuring an Arduino® stackable header, including Kinetis®, LPCXpresso and i.MX boards.

PN7150B0HN is ready to support your development today, tomorrow and beyond through its longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs.

Learn more

製品詳細

セクションを選択:

ブロック図

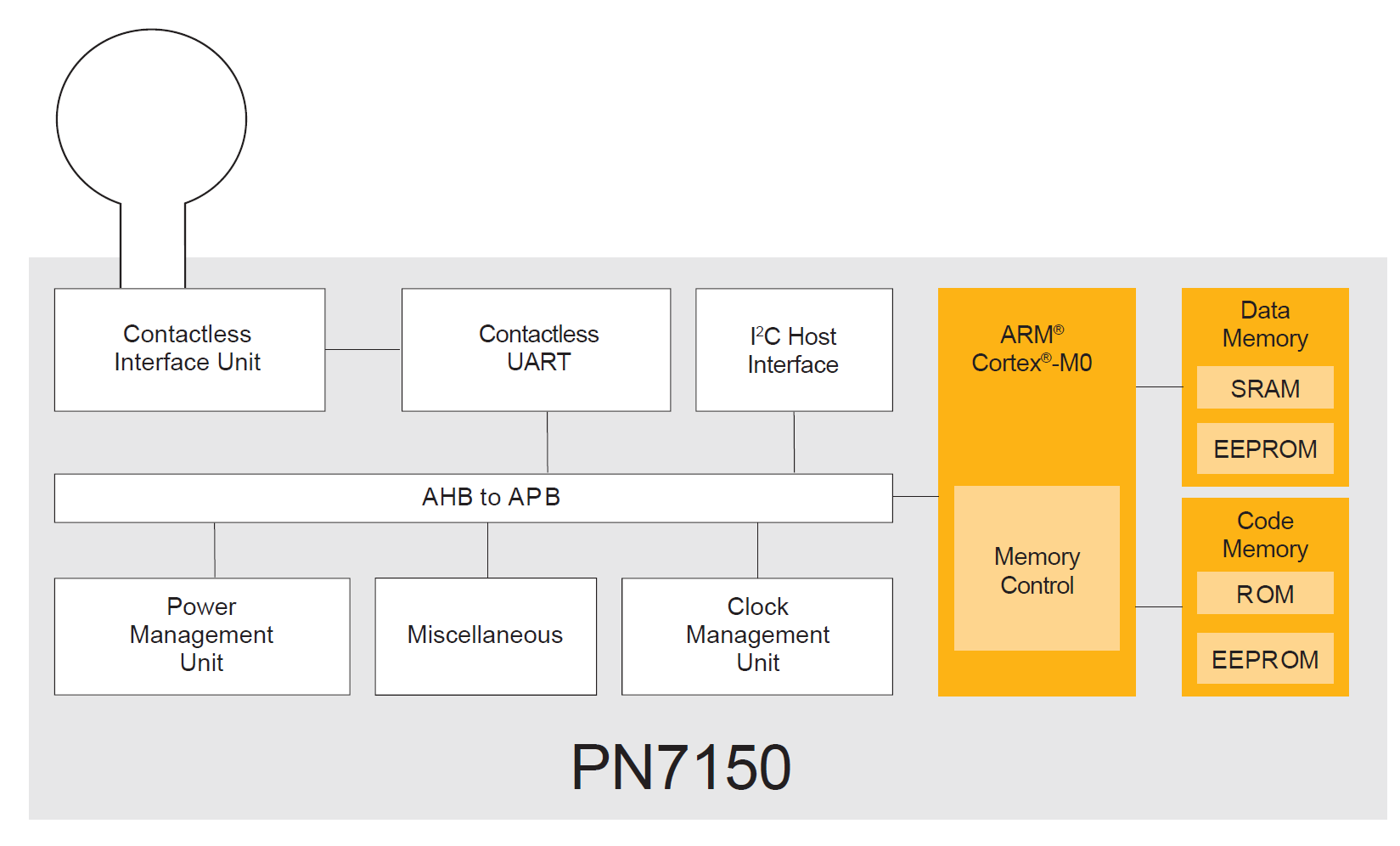

High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface

High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface
図を取得する PDF

Features

Full hardware and software compatibility

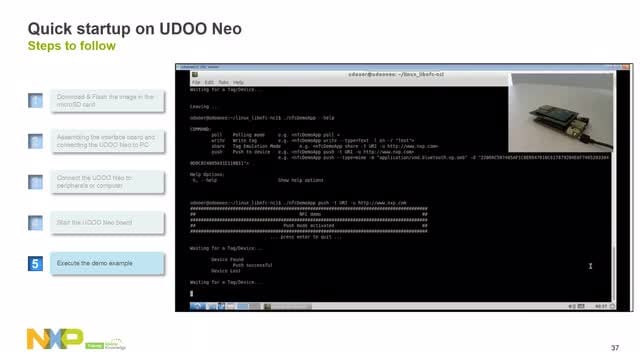

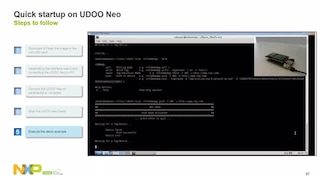

  • Support for Linux, Android, RTOS and NullOS

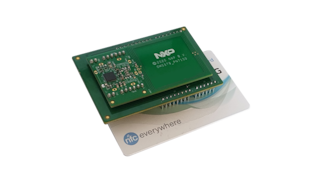

  • Interface to Raspberry Pi, BeagleBone Black, and all boards with Arduino®-compatible header

All NFC operating modes

  • Read/Write Mode: ISO/IEC 14443 A and B up to 848 kbit/s, FeliCa at 212 and 424 kbit/s, MIFARE Classic with 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693
  • All peer-to-peer modes
  • Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A and B) at 106 kbit/s, NFC Forum T3T (FeliCa, PN7150 only)

Flexible host interface

  • Supply voltage: 1.8 to 3.3 V
  • I2C interface: 3.4 Mbit/s
  • NCI 1.0-compliant protocol
  • IRQ signal for improved synchronization

Complete, power-efficient NFC control

  • RF driver: 3.0 to 4.75 V, 180mA max (PN7150); 2.7 to 3.3 V, 180mA max (PN7120)
  • Implemented according to device requirements v1.3
  • Fully configurable polling loop with low-power mode
  • Load modulation scheme: active (PN7150), passive (PN7120)

Standard packages

  • HVQFN40 (PN7150)
  • VFBGA49 (PN7120)

Key Benefits

  • Seamless integration of NFC into any application, especially those with OS systems
  • Plug-and-play NFC operation with many platforms, including most LPC, QorIQ®, Kinetis and i.MX boards
  • All typical NFC use cases, including pairing, personalization, extended user interface, maintenance, etc
  • Fast deployment of advanced, fully interoperable NFC functionality, with a lower overall cost
