PNEV512R
EXPLORE-NFC - Exclusive from element14.
コンパクトリスト
EXPLORE-NFC - Exclusive from element14

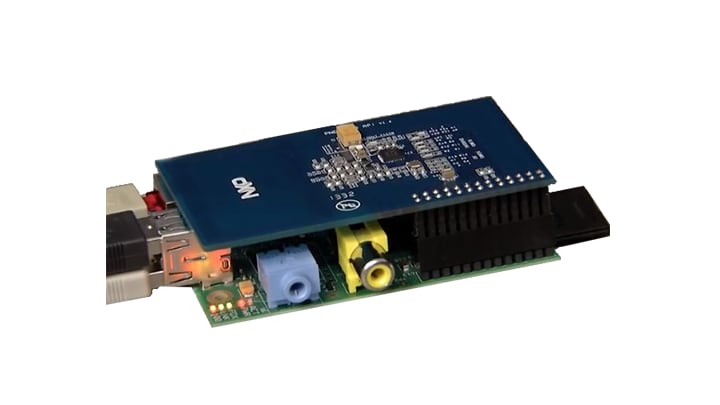

EXPLORE-NFC is a high-performance full NFC expansion board for the Raspberry Pi, only available through element14: exploreNFC
製品詳細
対応製品
RFID
NFCリーダ
- PN5120A0ET: Full NFC Forum-Compliant Frontend
- PN5120A0HN: Full NFC Frontend
- PN5120A0HN1: Full NFC Frontend
- PN512AA0HN1: Full NFC Frontend
Features
- Based on NXP® PN512 full NFC forum-compliant NFC IC, meeting compliance with all 3 NFC modes (Reader, P2P, and Card Emulation)
- Reader mode supports 4 NFC tag types and NXP MIFARE® proprietary command
Software
- Software available for Card Polling: find out which contactless smart card you have in your pocket
- Software available for P2P Communication: transmit data from the RaspberryPI to the NFC enabled cell phone through NFC
- Software available for Card Emulation: implement your Paper Chase Game using NFC on the RaspberryPI together with your NFC enabled cell phone
- Integrated high-performance antenna.
- Complete with MIFARE Ultralight® RFID card
購入オプション
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
1-5 件/全 6 ソフトウェア・ファイル
-
アプリケーション例 ソフトウェア
Schematics and BOM for EXPLORE-NFC
-
BSPとデバイスドライバ

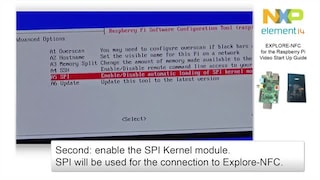

Neard EXPLORE-NFC Dev - Using NeardAL with EXPLORE-NFC. This package contains the sources of all the components.
-
BSPとデバイスドライバ
Neard EXPLORE-NFC - Using NeardAL with EXPLORE-NFC. This package contains all software packages to get started working with the EXPLORE-NFC on the Raspberry Pi using the Raspbian Wheezy or Jessie image.
-
BSPとデバイスドライバ
NFC Reader Library for Linux V4.010.03.001609
-
BSPとデバイスドライバ
Card Emulation example for the Raspberry Pi. Emulates a Type 2 Tag.
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
