TEA2016AAT Programming Board and Development Samples
The TEA2016 is a digital configurable LLC and PFC combo controller for high efficiency resonant power supplies. It includes both the LLC controller functionality and PFC controller operating in DCM and QR mode. The TEA2016AAT comes in a low profile and narrow body-width SO16 package.
The TEA2016AAT digital architecture is based on a high-speed configurable hardware state machine ensuring very reliable real-time performance. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.
製品詳細
対応製品
パワーマネージメント
PFC内蔵AC-DCコントローラ
- TEA2016: 共振電源用デジタルLLC＆PFCコンボ・コントローラ
Features
TEA2016 Features
-
Several parameters can easily be configured, like:
- Operating frequencies to be outside the audible area at all operating modes
- Soft start and soft stop in burst mode, reducing the audible noise
- Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
- Independently configurable levels and timers
- All protections can independently be set to latch, safe restart, or latched after several attempts to restart (Patent 82096505US01)
TEA2016AAT Dev

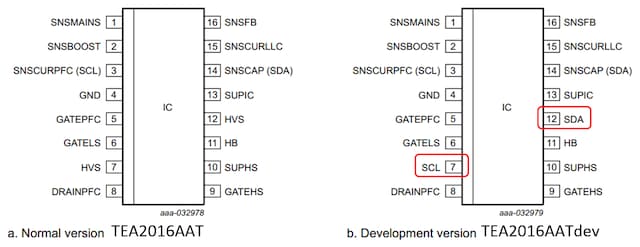

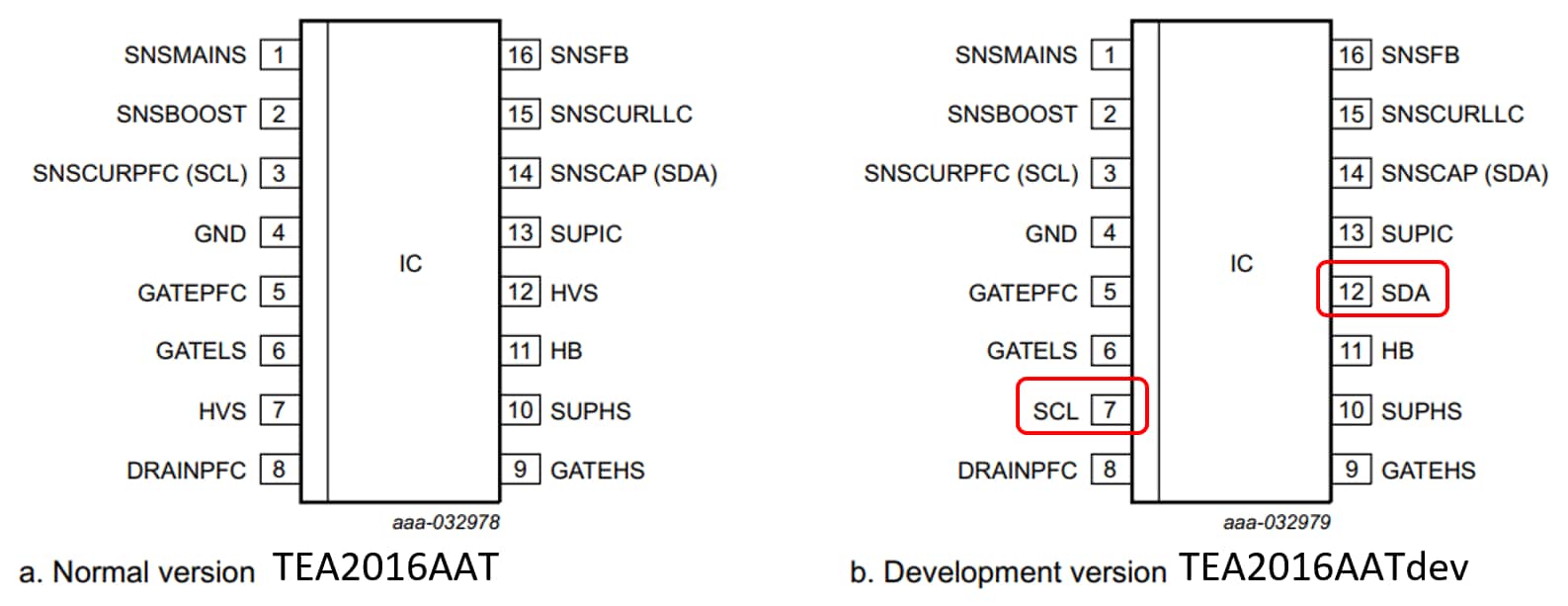

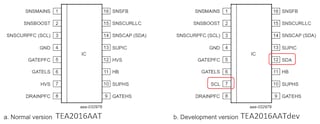

- Connections to the IC's second I²C interface are provided on the high-voltage spacer pins 7 and 12, which are normally not connected (High-Voltage Spacer pin)
- This enables easy modification of parameter settings while the IC is operating: operation can be changed “on the fly”

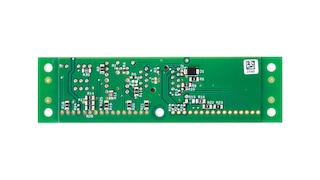

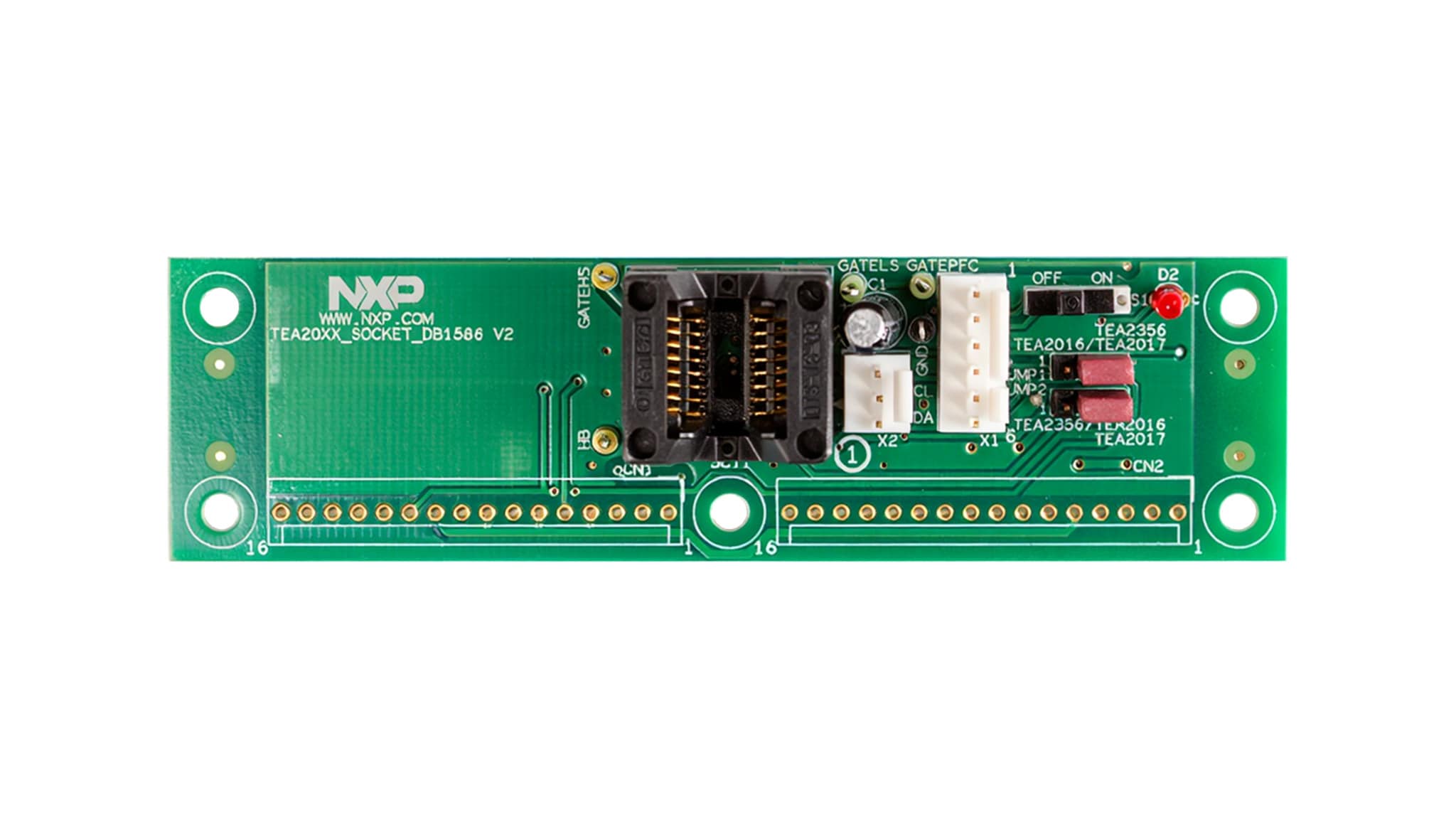

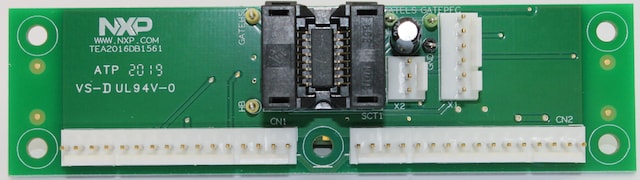

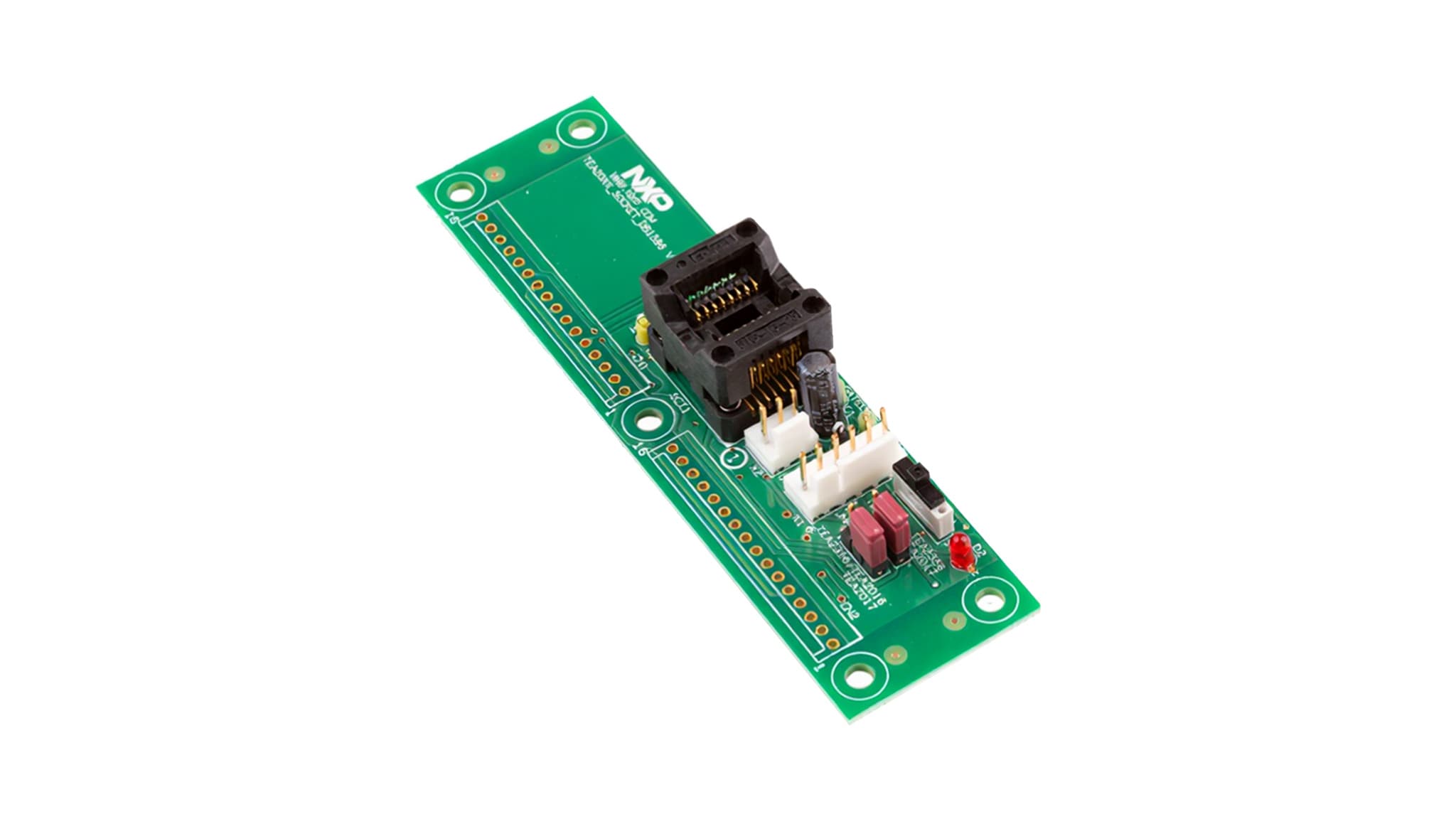

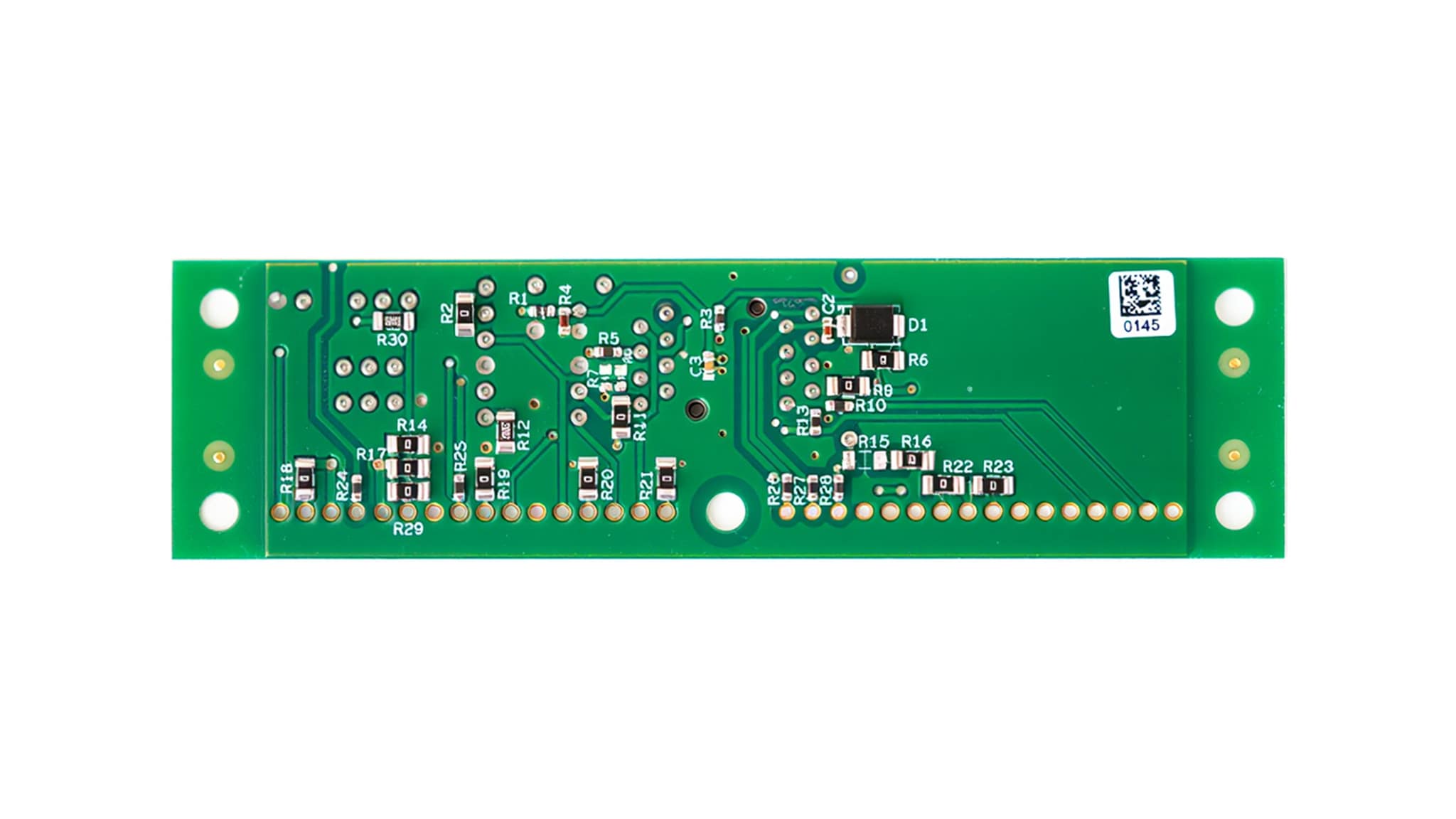

TEA2016DB1561 Programming Board
- This board can be used to get familiar with programming TEA2016AATdev samples. A sample can be soldered to the board for this purpose
- Adding an IC socket (not included) will make the TEA2016DB1561 programming board suitable for programming small series of ICs
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類
7 ドキュメント
アプリケーション・ノート (1)
ファクト・シート (2)
-
TEA2016/TEA2095 ICs - Fact Sheet[TEA2016-2095-FS]
-
NXP GreenChip ICs TEA2016 and TEA1995[TEA20161995FSDAS]
ユーザ・ガイド (4)
-
Getting Started with the RDK01DB1561[GS-RDK01DB1561]はじめに
-
RDK01DB1561 programming kit - Quick start guide[UM11522]はじめに
