MC33660 ISO K Line Serial Link Evaluation Kit

KIT33660EFEVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

The KIT33660 evaluation board supports the MC33660, a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications.

  • Designed to interface between the vehicle’s on-board MCU and systems off-board the vehicle via the special ISO K line
  • The MC33660 is designed to meet the Diagnostic System ISO 9141 specification
  • The device’s K line bus driver’s output is fully protected against bus shorts and over-temperature conditions

製品詳細

対応製品

インターフェース

オートモーティブLINソリューション

  • MC33660: ISO K Line Serial Link Interface

Features

Power Management

  • Operates over wide supply voltage of 8.0 to 18 V
  • Operating temperature of -40 °C to 125 °C
  • Standby mode: no VBAT current drain with VDD at 5.0 V
  • Low current drain during operation with VDD at 5.0 V

General Specifications

  • Interfaces directly to standard CMOS microprocessors
  • ISO K line pin protected against shorts to battery
  • Thermal shutdown with hysteresis
  • ISO K line pin capable of high currents
  • ISO K line can be driven with up to 10 nF of parasitic capacitance
  • 8.0 kV ESD protection attainable with few additional components

購入オプション

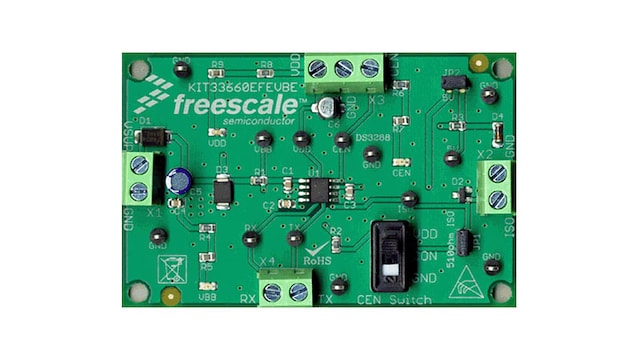

KIT33660EFEVBE-Image

クリックして展開

  • KIT33660EFEVBE
    アクティブ

  • Evaluation Kit - MC33660, ISO K Line Serial Link Interface.

  • Kit Contains:

    • KIT33660EFEVBE Hardware
    • Quick Reference Guide
  • $121.79 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
