NVT4557HK IBIS Model
SIM Card Interface Level Translator with EMI Filter and ESD Protection
NVT4557 アラートの受信

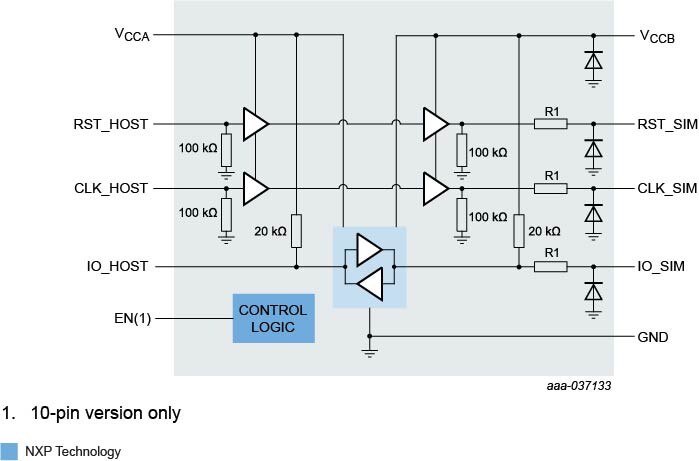

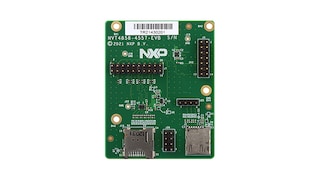

The NVT4557 device is built for interfacing a SIM card with a single low-voltage 1.08 V to 1.95 V host side interface. The NVT4557 contains three 1.65 V to 3.6 V level translators to convert the data, RSTn and CLKn signals between a SIM card and a host microcontroller.
The NVT4557 is compliant with ISO-7816 SIM/smart card interface requirements.
製品詳細
Features
Key Features
- Supports clock speed up to 10 MHz clock
- Compliant with ISO-7816 SIM/Smart card interface requirements
- Support SIM card supply voltages with range of 1.65 V to 3.6 V
- Host microcontroller operating voltage range: 1.08 V to 1.95 V
- Automatic level translation of I/O, RSTn and CLKn between SIM card and host side interface with capacitance isolation
- Incorporates shutdown feature for the SIM card signals according to ISO-7816-3
- Automatic enable and disable through VCCB
- Integrated pull-up and pull-down resistors: no external resistors required
- Integrated EMI filters suppress higher harmonics of digital I/Os
- Integrated 8 kV ESD protection according to IEC 61000-4-2, level 4 on all SIM card contact pins
- Level shifting buffers keep ESD stress away from the host (zero-clamping concept)
- Pb-free, restriction of hazardous substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
- Available in 9-pin WLCSP package in 0.3 mm pitch and 10-pin XQFN10 package with 0.4 mm pitch
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The NVT4557HK is included in the 10-year program.
部品番号： NVT4557HK, NVT4557UK.
比較表
| NVT4555UK | NVT4557UK | NVT4557HK | |
|---|---|---|---|
| SIM Card Level Translator | |||
| Internal LDO | |||
| Package | WLCSP12 | WLCSP9 | XQFN10 |
