OM13315
-

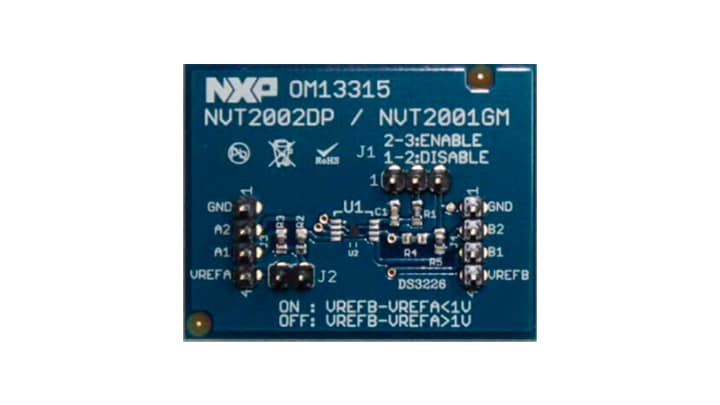

NVT2001GM Demo Board.
NVT2001GM Demo Board
The NVT2001GM (OM13315) and NVT2002DP (OM13318) demo boards are designed to evaluate the NXP 1-channel or 2-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2001GM and NVT2002DP devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), a difference in translation voltage, and the translation direction (high to low voltage, low to high voltage, or bidirectional). The NVT2001GM and NVT2002DP devices allow translations between any voltages from 1.0 V to 5.5 V.
製品詳細
対応製品
アナログとミックスド・シグナル
電圧レベル変換器
- NVT2001_NVT2002: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
Features
Key Features
- Provides bi-directional voltage translation with no direction pin
- Less than 1.5 ns maximum propagation delay
- Lock-up free operation
- ESD protection exceeds 4 kV HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
- High-impedance An and Bn pins for EN = LOW
- Low 3.5: ON-state connection between input and output ports provides less signal distortion
Connectivity
- 5 V tolerant I/O ports to support mixed-mode signal operation
- Flow through pinout for ease of printed-circuit board trace routing
Power Management
- Allows voltage level translation between:
- 1.0 V Vref(A) and 1.8 V, 2.5 V, 3.3 V or 5 V Vref(B)
- 1.2 V Vref(A) and 1.8 V, 2.5 V, 3.3 V or 5 V Vref(B)
- 1.8 V Vref(A) and 3.3 V or 5 V Vref(B)
- 2.5 V Vref(A) and 5 V Vref(B)
- 3.3 V Vref(A) and 5 V Vref(B)
