OM13514
-

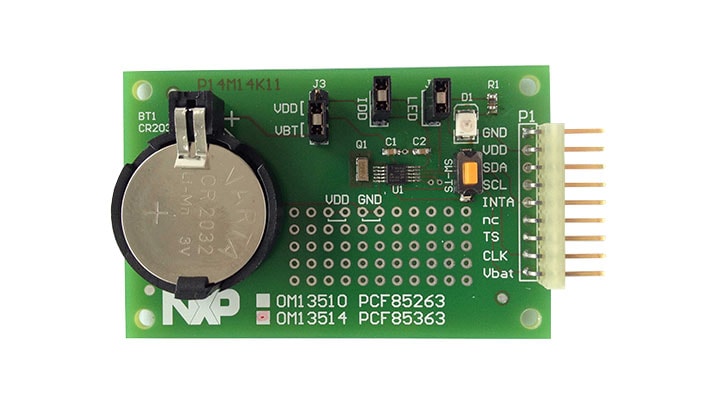

PC evaluation board for the I2C-bus RTC PCF85363A.
PC Evaluation Board for the I²C-bus RTC PCF85363A
OM13514 アラートの受信
The OM13514 is the ideal evaluation and demo board to be used in the design phase of any project; just power and I²C-bus must be connected.
製品詳細
対応製品
アナログとミックスド・シグナル
リアルタイム・クロック
- PCF85363A: Tiny Real-Time Clock/Calendar with 64 B RAM, Alarm Function, Battery Switch-Over Time Stamp Input and I²C-Bus
Features
Key Features
- Battery back-up
- 2 alarm facilities with 2 configurable interrupt outputs
- Time stamp
- 64 Bytes of RAM
- Tracking time or stopwatch, with 1/100 s resolution
- A scratch pad area is available to host some custom circuitry
Power Management
-
Battery on board for autonomous operation:
- Can be switched off by placing Jumper
J3to VDD
- Can be switched off by placing Jumper
-
Easy measurements of power consumption:
- Jumper
J2to open, to link in a μA-meter
- Jumper
Connectivity
- Connector P1 100 mil (2.54 mm) pin pitch
- Access to all pins
Components
- Push bottom SW-TS to trigger timestamp
