Programmable Gate Driver for Solenoid Control

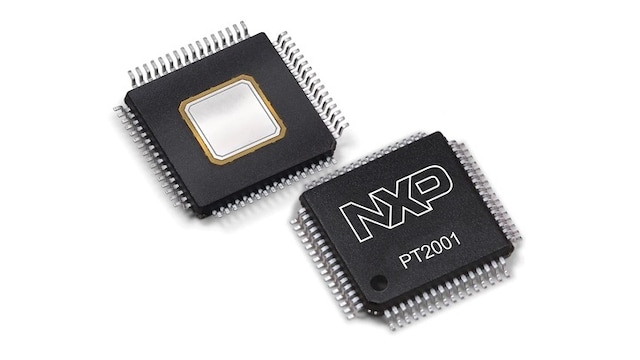

The PT2001 is a programmable gate driver IC for precision solenoid control applications, which makes the component very flexible and relieves the main microcontroller from the intensive task of the actuator control.
The chip integrates four microcores used to control, five external MOSFET high-side pre-drivers, seven external MOSFET low-side pre-drivers, a DC-DC converter, integrated end of injection detection, current measurement and diagnostics.
製品詳細
ブロック図
Features
Key Features
- Battery voltage range, 5 V < VBATT < 32 V
- Pre-drive operating voltage up to 72 V, 80 V
- Ambient operating temperature -40 °C (Min), 125 °C (Max)
- 5 High-side pre-drive PWM capability up to 100 KHz
- 7 Low-side pre-drive PWM capability up to 100 KHz
- All pre-drivers have four selectable slew rates
- 12 selectable, pre-defined VDS monitoring thresholds
- ISO26262 compliant development
- Encryption for microcode protection
- Integrated End of Injection detection
- Power train control and pre-driver device function
- 4 Channels
