Differential and Gauge Compensated Pressure Sensor (0 to 50 kPa)

MPXx2050 アクティブ

The MPXx2050 series delivers silicon piezoresistive pressure sensors for use in a wide selection of medical and industrial devices.

  • Provides a highly accurate and linear voltage output directly proportional to the applied pressure.
  • Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
  • Offers a laser-trimmed chip for precise span, offset calibration and temperature compensation

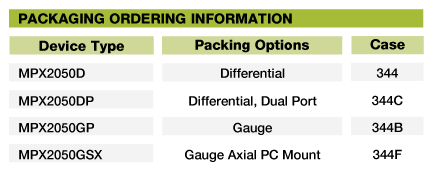

ブロック図

MPXX2050

図を取得する PDF

Features

Key Features

  • Temperature compensated over 0° to +85 °C
  • Silicon shear stress strain gauge
  • Available in rails or tape-in-reel shipping options
  • Ratiometric to supply voltage
  • Differential and gauge options
  • ±0.25 percent linearity
