Pressure Sensor Waterlevel Evaluation Board

KITMPVZ5004EVK アクティブ

画像にカーソルを合わせると拡大表示されます。

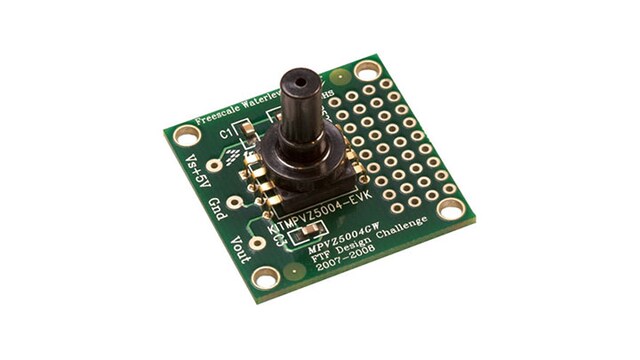

KITMPVZ5004EVK is a simple waterlevel evaluation board designed for easy connection to the pressure sensor. The filter circuitry has been added to the output of the sensor, and the only connections required are +5V, Ground, and the Vout to an ADC. The media resistant sensor is designed to measure up to 40cm of H2O via a tube that should be connected to the port. More information on waterlevel can be found in our app note AN1950. For FTF Design Contest Participants, this can be used to get feedback when a waterlevel has reached a particular height, for control/feedback systems.

製品詳細

対応製品

センサ

差圧/ゲージ圧センサ（最大10 kPa）

  • MPXx2010: Differential and Gauge, Compensated Pressure Sensor (0 to 10 kPa)

購入オプション

KITMPVZ5004EVK-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
N true 0 TSPKITMPVZ5004EVKja 2 アプリケーション・ノート Application Note t789 1 ファクト・シート Fact Sheet t523 1 ja 1 1 4 English The purpose for this reference design is to allow the user to evaluate a pressure sensor for not only water level sensing to replace a mechanical switch, but also for water flow measurement, leak detection, and other solutions for smart appliances. 10lyDc80 TSP 392.4 KB None None documents None 10lyDc80 /docs/en/application-note/AN1950.pdf 392403 /docs/en/application-note/AN1950.pdf AN1950 N N 2016-10-31 AN1950 Water Level Monitoring /docs/en/application-note/AN1950.pdf /docs/en/application-note/AN1950.pdf Application Note N Y 645036621402383989 2022-12-07 pdf N en Feb 2, 2007 Application Note t789 アプリケーション・ノート Application Note Y N AN1950 Water Level Monitoring false ja ja ファクト・シート Fact Sheet 1 2 13 English Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. 1092086607381736729272 TSP 2.2 MB None None documents None 1092086607381736729272 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2216251 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf SNSRSOLUTNTMFS documents N N 2016-10-31 Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Fact Sheet N 736675474163315314 2025-02-25 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N Sensor Solutions false 0 KITMPVZ5004EVK downloads ja true 0 Y TSP アプリケーション・ノート 1 /docs/en/application-note/AN1950.pdf 2016-10-31 10lyDc80 TSP 1 Feb 2, 2007 Application Note アプリケーション・ノート The purpose for this reference design is to allow the user to evaluate a pressure sensor for not only water level sensing to replace a mechanical switch, but also for water flow measurement, leak detection, and other solutions for smart appliances. None /docs/en/application-note/AN1950.pdf English 392403 None Application Note 2022-12-07 N /docs/en/application-note/AN1950.pdf AN1950 Water Level Monitoring /docs/en/application-note/AN1950.pdf documents 645036621402383989 Application Note N Y en None Y t789 pdf 4 N N AN1950 Water Level Monitoring 392.4 KB AN1950 N 10lyDc80 ファクト・シート 1 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2016-10-31 1092086607381736729272 TSP 2 Feb 12, 2020 Fact Sheet Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. None /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf English documents 2216251 None 736675474163315314 2025-02-25 N /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 13 N N Sensor Solutions 2.2 MB SNSRSOLUTNTMFS N 1092086607381736729272 true Y Tools
