ワンチップ・ソリューション、AI/ML機能を備えたスケーラブルなオーディオDSP処理
コンパクトリスト
AI- and ML-Based Audio Processor for Consumer Electronics and Robotics
- このページでは、試作品の情報を掲載しています。ここに記載されている仕様や情報は、予告なく変更されることがあります。追加情報については、 または営業担当者にお問い合わせください。

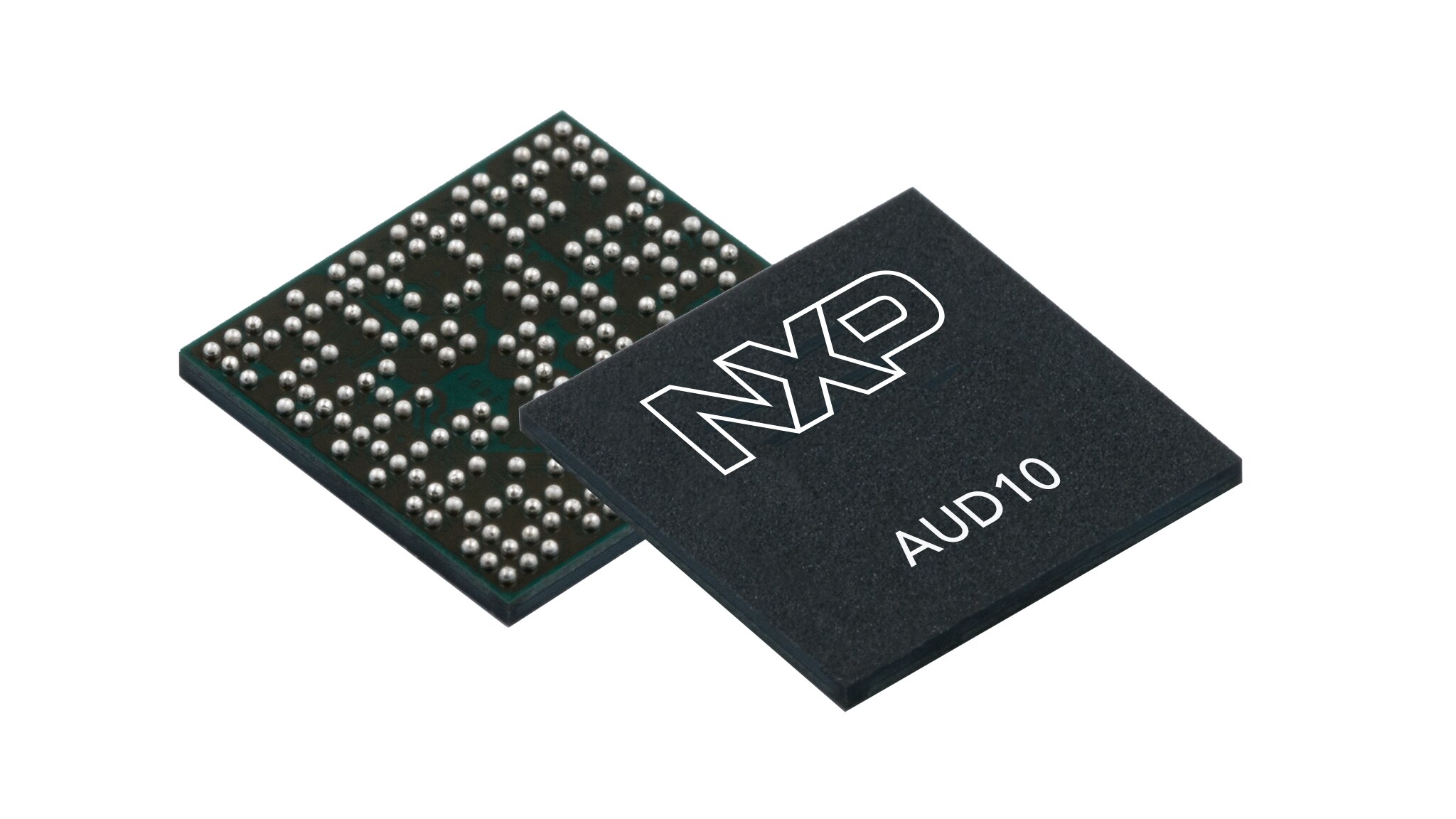

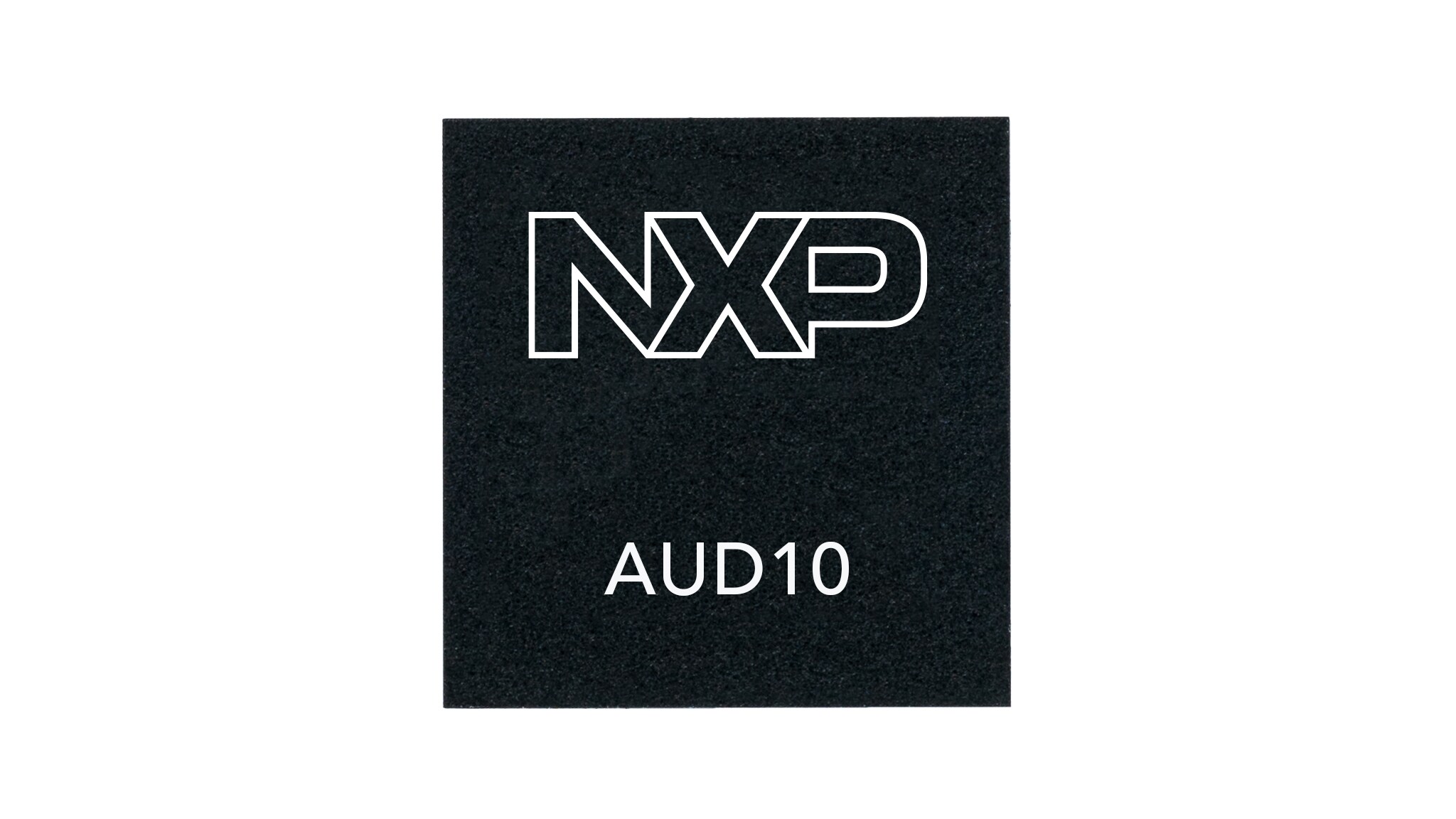

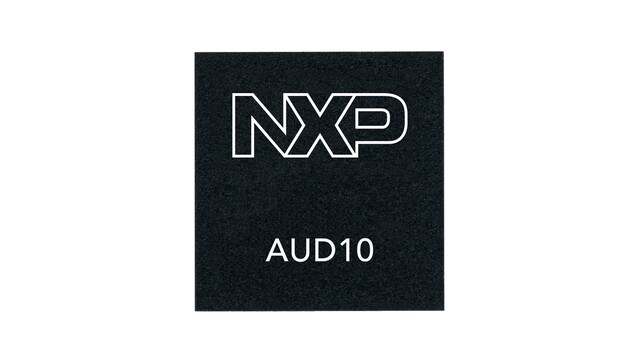

AUD10 is a scalable audio chip solution that combines HiFi 5 audio digital signal processors (DSPs), an Arm® Cortex®-M7 microcontroller (MCU) with both analog and digital audio interfaces. It offers a multi-purpose solution for professional and semi-professional audio, robotics and industrial audio applications. AUD10 features a large static random-access memory (SRAM) memory on-chip and supports both Peripheral Component Interconnect Express (PCIe) and Gigabit Ethernet. AUD10 supports AI/ML accelerators and includes NXP hardware-based bi-quad accelerators.
製品詳細
Features
Advanced Audio
- Two high-performance floating-point HiFi 5 audio DSPs on board, including neural network accelerators
- Broad range of audio algorithms through an extensive third-party ecosystem
- 12 configurable audio analog-to-digital converters (ADCs)
- 20 integrated asynchronous sample rate converters
- Fully programmable digital audio input/output port supports a wide variety of digital audio interface formats
- Support for DSP Concepts® Audio Weaver® tool
Connectivity
- Two general-purpose Serial Peripheral Interface (SPI) ports
- PCIe 3.1-compliant interface with data rate support of 2.5 Gb/s and 5.0 Gb/s
- Second PCIe interface or Gigabit Ethernet interface via Serial Gigabit Media Independent Interface (SGMII)
Package
- 9 mm x 9 mm FC-CSP package
Audio Control
- Integrated Arm Cortex-M7 core for audio control middleware
