CodeWarrior® Development Studio for ColdFire® Architectures: Linux® Editions (Classic IDE) v2.5

CW-COLDFIRE-LINUX

画像にカーソルを合わせると拡大表示されます。

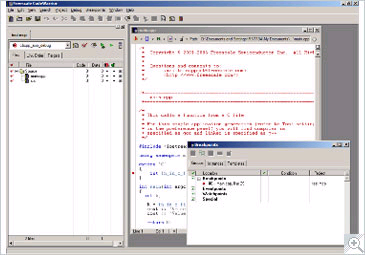

CodeWarrior® Development Studio for ColdFire® Architectures Linux Application Edition and Linux® Platform Edition v2.5 are all-inclusive tool suites designed to accelerate embedded Linux® application development for ColdFire processors.

The Linux Platform Edition gives you the ability to deploy and debug a Linux kernel, in addition to creating Linux applications. You can simultaneously debug an application process while using a JTAG connection to debug the kernel — all with source code views and visibility into the memory translations associated with the Linux OS.

The Linux Application Edition is available for Linux and Windows® operating systems and allows application development on an existing platform, which has a stable Linux kernel and drivers. This tool suite gives you access to the ColdFire processor registers and cache. It also handles all MMU translations for productive source code debugging of applications and loadable modules operating in user mode. The tool suites include the GNU C++ Compiler (GCC) and CodeWarrior project manager, source-level debug and search engine.

ソフトウェア詳細

Features

    New Features for Version 2.5
  • New BSPs supported: M5253DEMO, M52277EVB, M5373EVB and M54451EVB
  • Build tools: Sourcery G++ GNU toolchain for ColdFire® architectures from CodeSourcery
  • Application-level debugging using CodeWarrior® AppTRK:
    • GCC 4.1, 4.2, 4.3 for uClinux with DWARF2 debug format for MCF5208, MCF5253, MCF52277, MCF5329, MCF5373
    • GCC 4.1, 4.2, 4.3 for embedded Linux with DWARF2 debug format for MCF5474, MCF5475, MCF5484, MCF5485 (with serial connectivity), MCF54455
  • uCLinux kernel and module debugging: M5208EVB, M5253EVB, M5253DEMO, M5272C3, M5282EVB, M52277EVB, M5329EVB and M5373EVB boards (Linux Platform Edition only)
  • Linux kernel and module debugging: M5475EVB, M5474LITE, M5485EVB and M54455EVB boards (Linux Platform Edition only)
  • Bootloader (u-boot) debugging: M5329EVB, M5253EVB, M5253DEMO, M5373EVB, M52277EVB, M5475EVB, M5485EVB and M54455EVB boards. (Linux Platform Edition Only)
  • Host platforms:
    • Windows XP/Vista® 32-bit (Windows Application Edition only)
    • Red Hat® 9
    • Red Hat Enterprise Edition 3.0
    • Red Hat Enterprise Edition 4.0
    • Red Hat Enterprise Edition 5.0
  • Online help and documentation
  • Includes 12-month technical support
  • Free 30-day evaluation license available

対応製品

  • MCF520X: Integrated ColdFire® V2 External Memory and Ethernet Microprocessors
  • MCF5227X: V2マイクロプロセッサ（タッチスクリーン、LCDコントローラ、USB機能搭載）
  • MCF525X: Integrated ColdFire® V2 Microprocessor
  • MCF527X: ColdFire® V2統合型マイクロプロセッサ
  • MCF528X: Integrated ColdFire® V2 Ethernet, CAN and Flash Microcontrollers
  • MCF532X: ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN
  • MCF537X: Coldfire V3 Microprocessor with Ethernet, USB and Encryption
  • MCF5445X: 32ビット・マイクロプロセッサ（USB On-The-Go、イーサネット、PCI、DDR2/DDRコントローラ、暗号化機能搭載）
  • MCF547X: ColdFire® V4 Microprocessor with Ethernet and Encryption
  • MCF548X: ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

システム要件

ダウンロード

フィルタ

1-5 の 7 ダウンロード

全て表示

注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

ドキュメント

クイック・リファレンス ドキュメンテーションの種類.

フィルタ

1-5 の 11 ドキュメント

全て表示

サポート

お困りのことは何ですか？?

  • Narrow your search
検索

ライセンスと登録サポート

ハウツー・ビデオ（ライセンス）

    License Manager Installers

    These downloads contain the necessary software to install the FLEXlm license manager.  The license manager software should be installed on the license server machine which will facilitate floating licenses for your NXP product.

    Please locate below the appropriate download for your license server machine.  If you are not sure, you should consult with your license server administrator.

    Below is a table that outlines which Operating System versions we officially support and test with our license manager.
    NOTE: Any installation or use outside of this scope will not be officially supported.


    Installer Versions Supported
     Windows  Win2003, Win2008, Win7, Win 8, Win 10
     Windows Server  2019, 1903, 1909, 20H2
     Linux   Red Hat EP v5.x, Red Hat EP v6.x, SUSE 11 Ubuntu 12.04

    USB Dongle Drivers

    These downloads are applicable for using a USB dongle to license your NXP product. You should receive documentation within your USB dongle kit that has detailed instructions for getting your product up and running with a license tied to the dongle. These downloads along with the most recent Dongle QuickStart Guide are listed below for your convenience.
