PF502x Embedded Software Driver
PF502x-SW-DRIVER アラートの受信
This embedded software solution provides high-level support for PF502x family of PMICs.
The driver provides an abstraction of the device, enabling easy configuration of its functional blocks such as watchdog, regulators, clocks, safety features etc. The driver also provides complete register map of the device.
Implementation of the PF502x software driver is generic, making the driver suitable for any microcontroller fitted with I2C module.
Example project for KL25Z microcontroller is a part of the package.
ソフトウェア詳細
Features
PF502x SW Driver
- I2C communication abstraction
- Watchdog settings and refresh
- Regulators and safety features configuration
- Complete register map

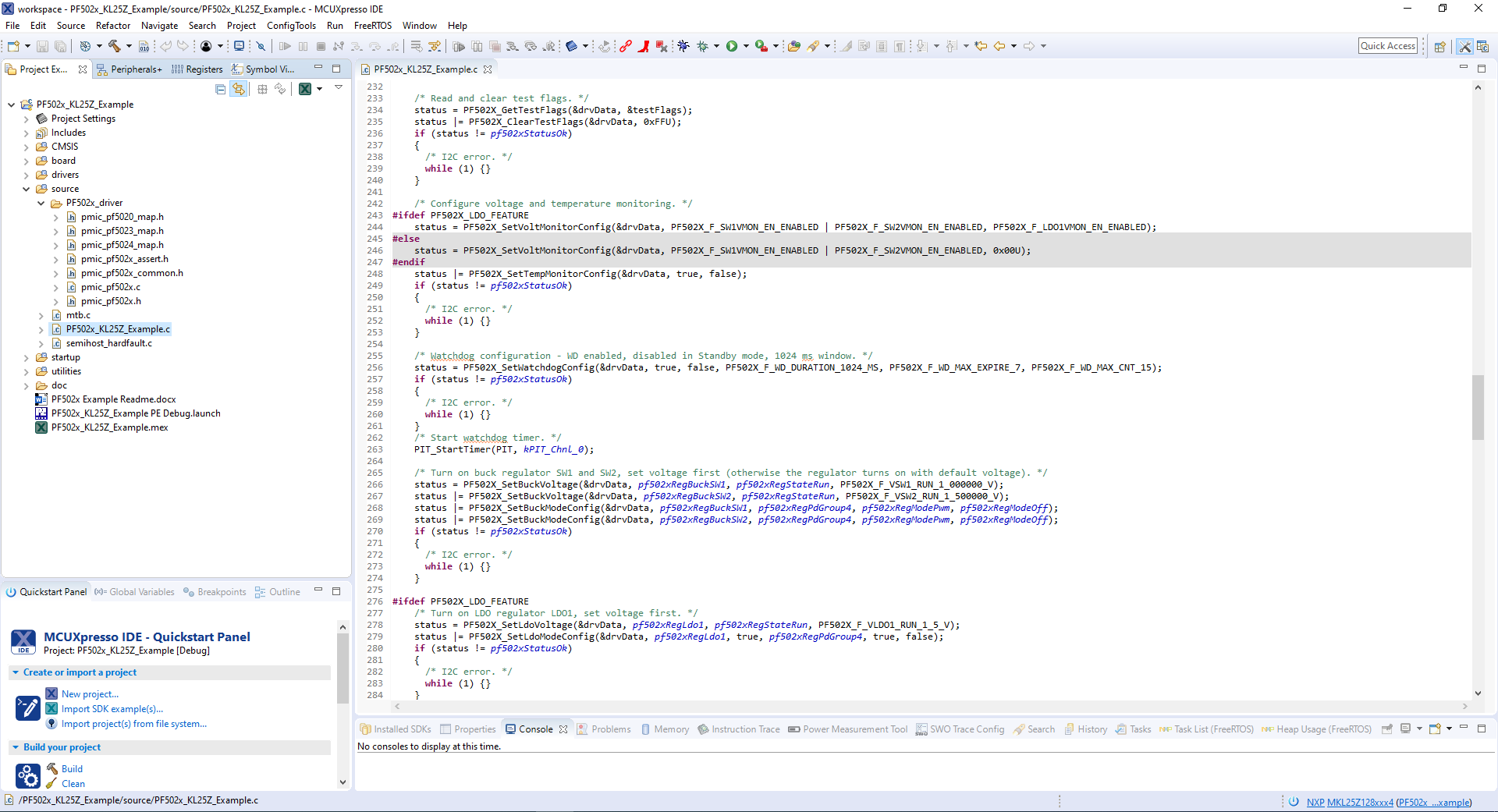

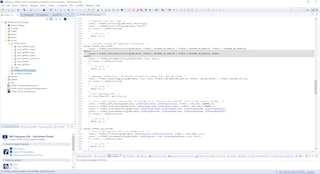

MCUXpresso example project
- Example project for PF502x and KL25Z evaluation board
対応製品
- PF5024: Multi-Channel (4) PMIC for Automotive Applications – 4 High Power, Fit for ASIL B Safety Level
- PF5023: Multi-Channel (3) PMIC for Automotive Applications – 3 High Power, Fit for ASIL B Safety Level
- PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
システム要件
Software
- MCUXpresso IDE (version 11.1.1 or newer)
- FRDM-KL25Z SDK (version 2.2.0) (can be downloaded via MCUXpresso SDK builder)
Hardware
- FRDM-KL25Z development kit platform
- KITPF502xFRDMEVM / KITPF502xSKTEVM
ダウンロード
