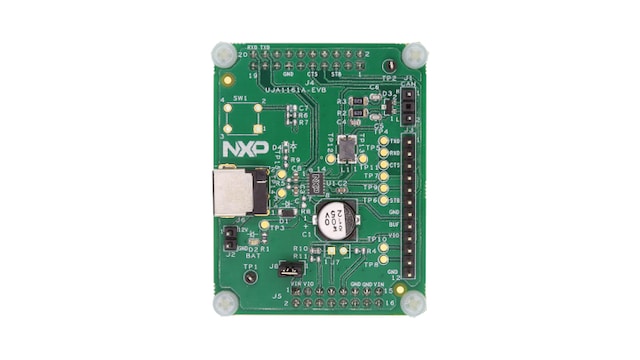

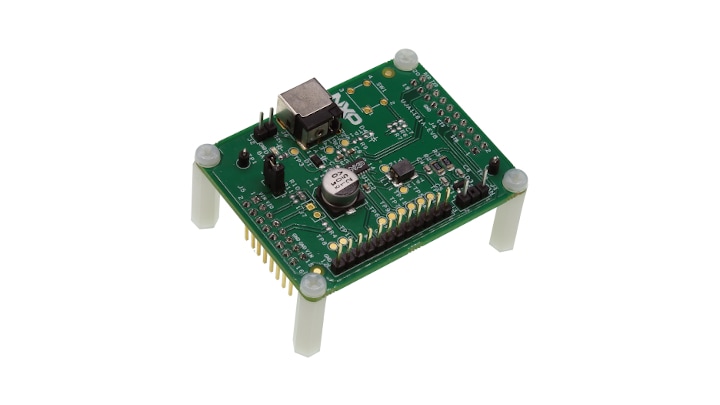

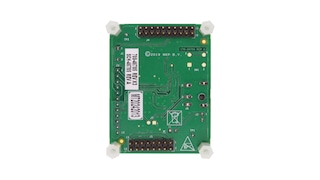

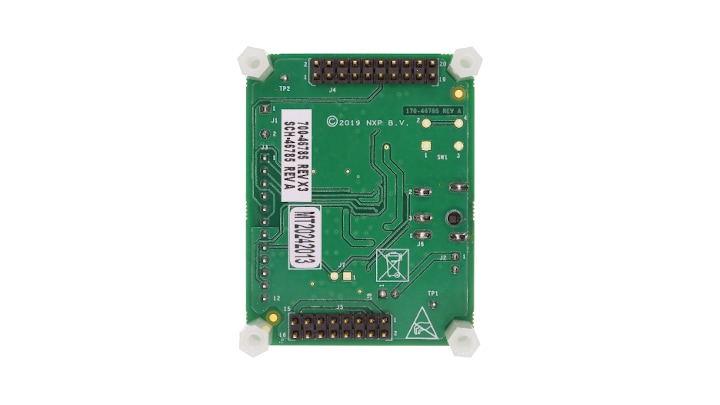

UJA1161A Evaluation Board

UJA1161A-EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

The UJA1161A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1161A Self-Supplied CAN Transceiver. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

対応製品

インターフェース

CAN with Flexible Data Rate

  • UJA1161ATK: Self-Supplied High-Speed CAN Transceiver with Standby Mode

Features

Key Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

購入オプション

UJA1161A-EVB-Image

クリックして展開

  • UJA1161A-EVB
    アクティブ

  • UJA1161A Evaluation Board.

  • Kit Contains:

    • UJA1161A Evaluation Board
    • UJA116xA-EVB Manual
  • $81.40 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 20
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
