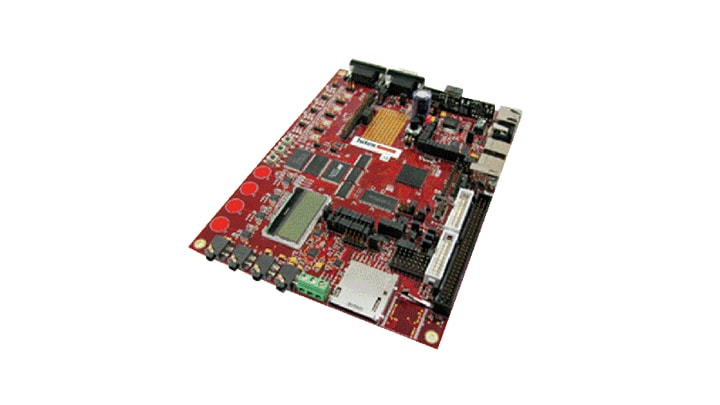

Hitex LPC4350 Evaluation board

OM13031
アクティブ

画像にカーソルを合わせると拡大表示されます。

The Hitex LPC4350 Evaluation board allows you to quickly and easily evaluate the LPC4300 family of microcontrollers. The microcontroller, board and the accompanying features make it a great starting point for your next Cortex-M4 project.

Populated with the LPC4350 to demonstrate LPC4300 features, the LPC4350 offers optimized dual-core performance, large internal memories and advanced peripherals.

Note: Same as Hitex LPC1850 Evaluation Board, but with LPC4350 component replacing LPC1850.

Order Number: OM13031

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

LPC4300 Cortex-M4/M0

  • LPC4310FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4310FET100: Dual-core Cortex®-M4/M0, 168 kB SRAM, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4320FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4320FET100: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4330FBD144: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET100: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET180: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4330FET256: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4333FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4337FET256: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC
  • LPC4350FET180: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4350FET256: Dual-core Cortex®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
  • LPC4353FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores
  • LPC4357FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4/M0 Cores

Features

Connectivity

  • CAN
  • UART
  • Ethernet
  • USB (Host, Device, OTG)
  • SD card

Power Management

  • Power-over-Ethernet

Debug

  • Debug with standard Arm JTAG and JTAG + Trace connector

Sensors

  • Temperature sensor

Display

  • Small onboard display and NXP® standard display

Audio

  • Audio IN an OUT, microphone IN, headphones OUT and a D-Class amplifier

Support

  • Ready for Jennic ZigBee module

購入オプション

OM13031-Image

クリックして展開

OM13031
アクティブ

Hitex LPC4350 Evaluation board.

    $391.00 USD
    保留中の在庫
    カートに入れる
