PF5200 Socketed Evaluation Board

KITPF5200SKTEVM
アクティブ

画像にカーソルを合わせると拡大表示されます。

The KITPF5200SKTEVM kit provides an integrated platform for evaluating designs based on NXP’s PF5200 dual-channel PMIC. All PF5200 features can be accessed and monitored in a test environment. (Limitations related to the PF5200 package restrict output current to 1 A.)

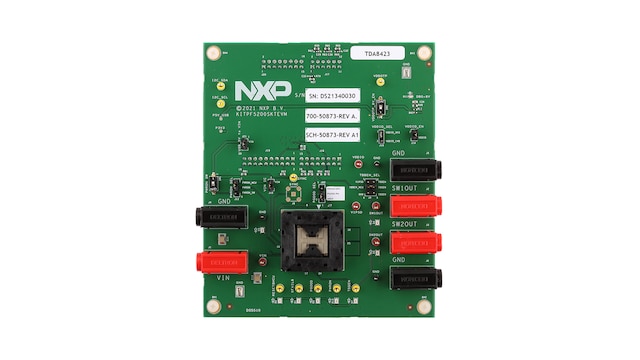

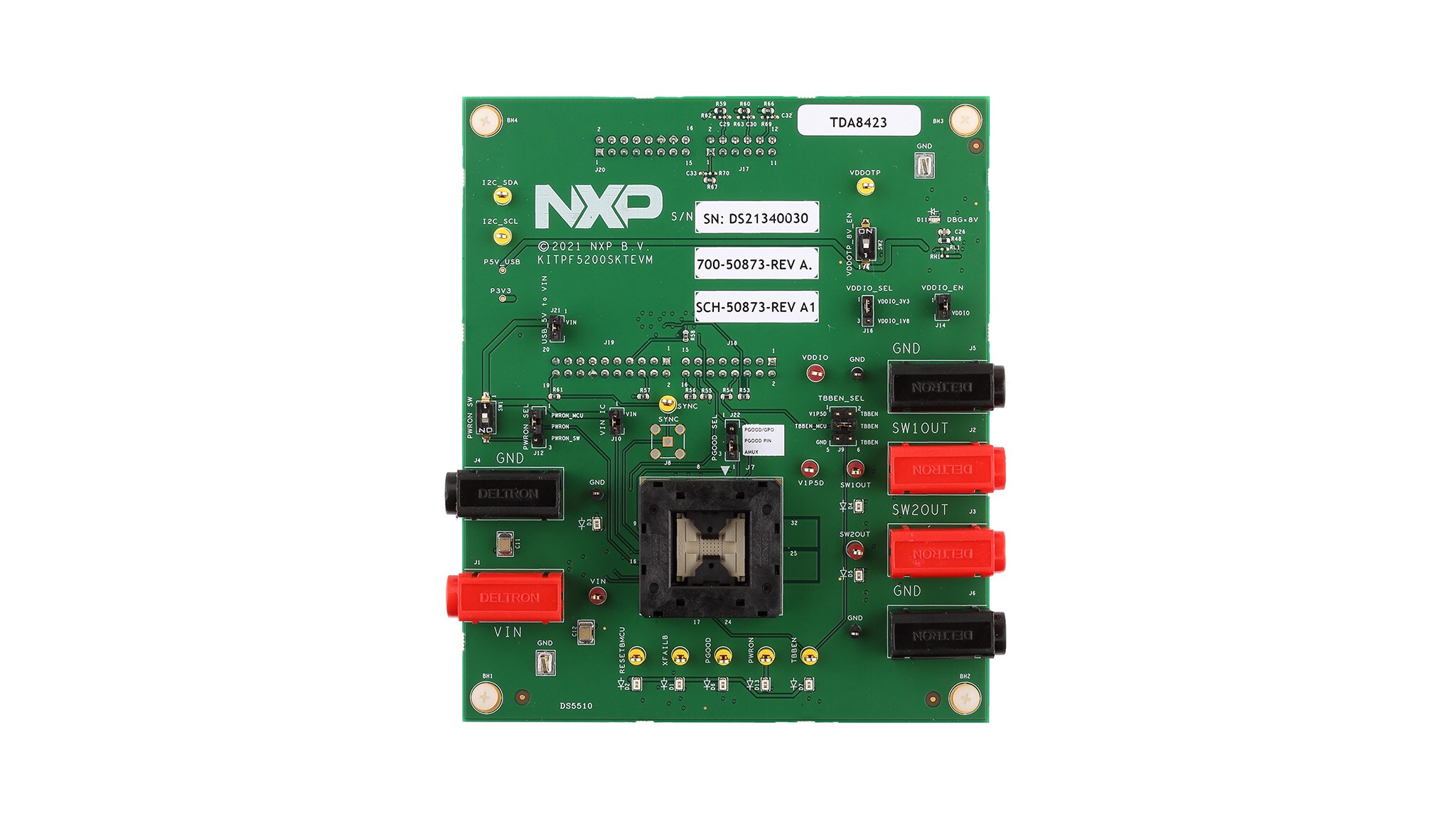

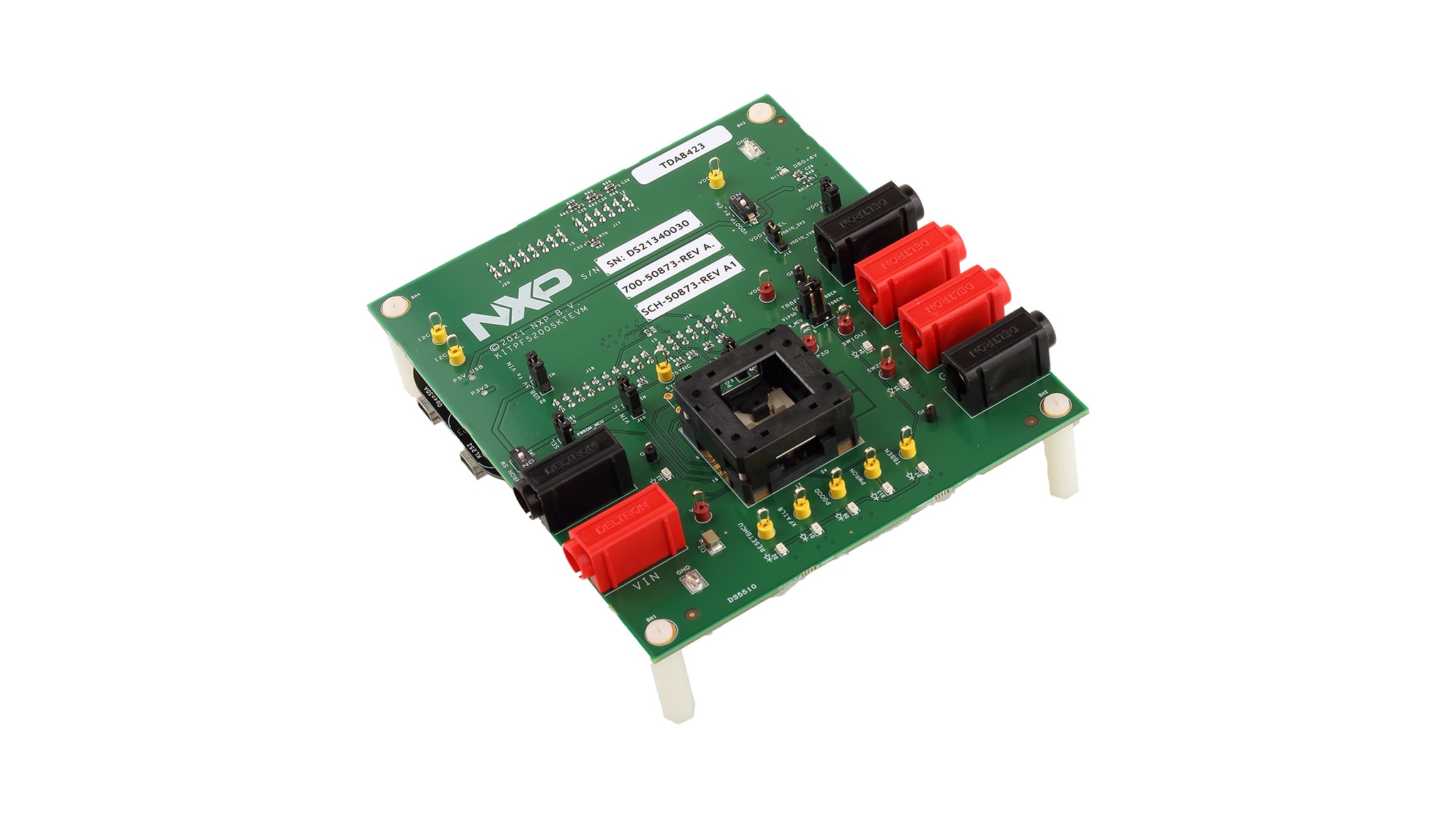

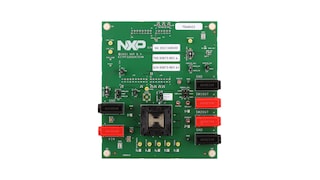

The kit hardware consists of the KITPF5200SKTEVM evaluation board, a FRDM-KL25Z microcontroller board and the USB cable required to connect the FRDM-KL25Z to the PC. The KITPF5200SKTEVM evaluation board features a socket that allows users to flash an individual PF5200 using the device’s one-time-programming (OTP) feature. Connectors, jumpers and switches on the board can be used to configure an evaluation environment that meets specific design requirements. The board also contains LEDs and test points that provide a means of monitoring performance in real time.

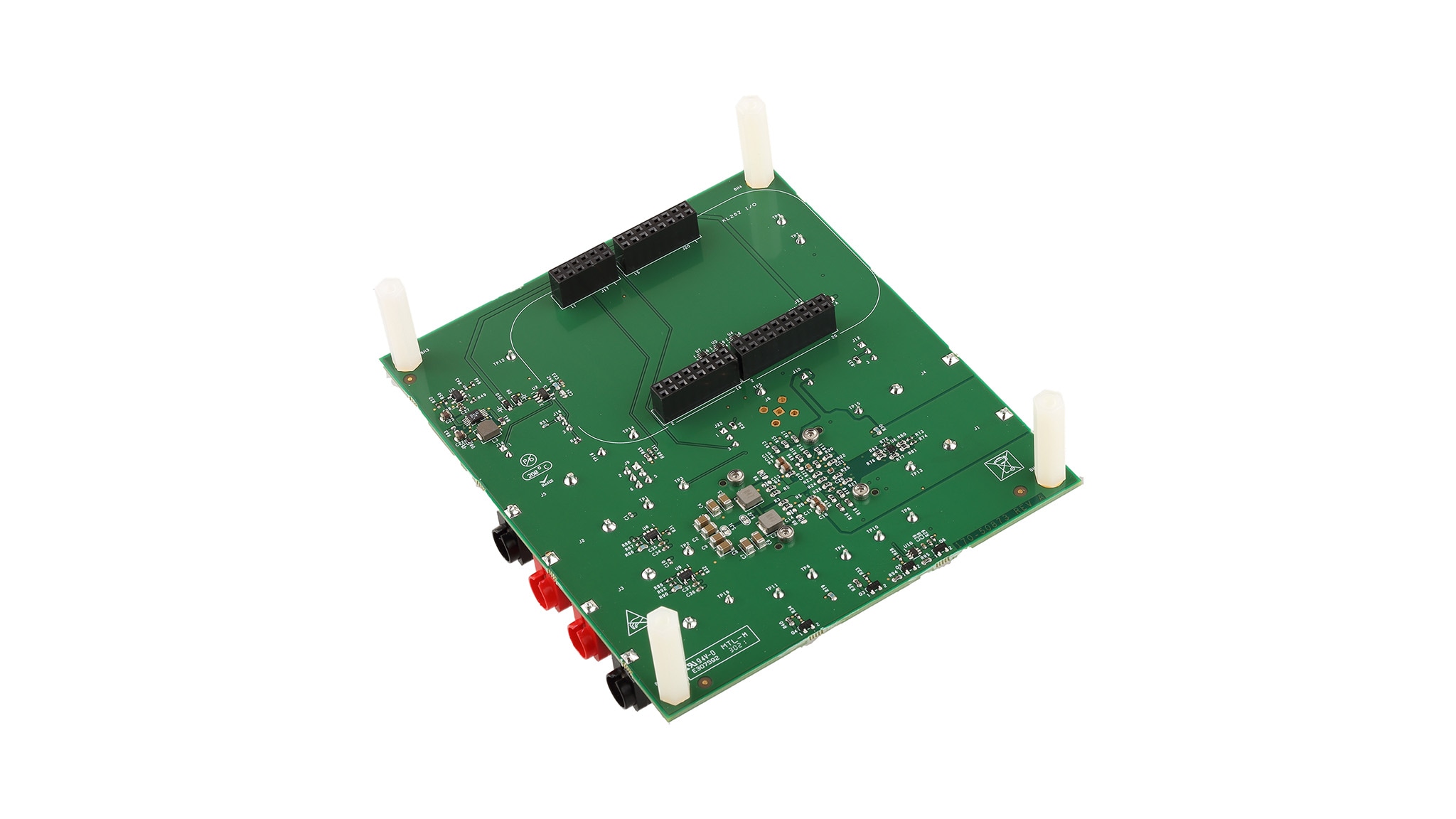

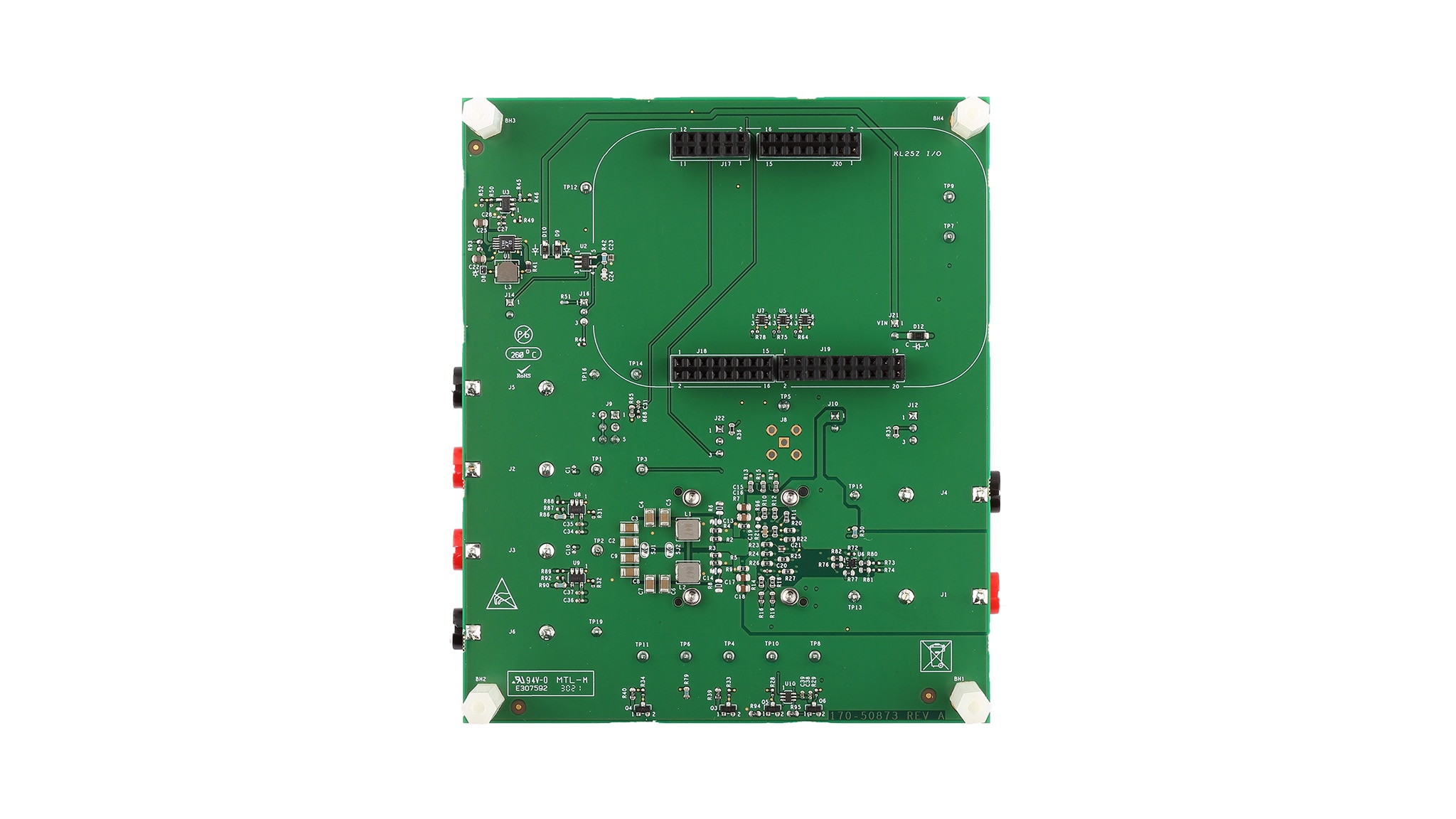

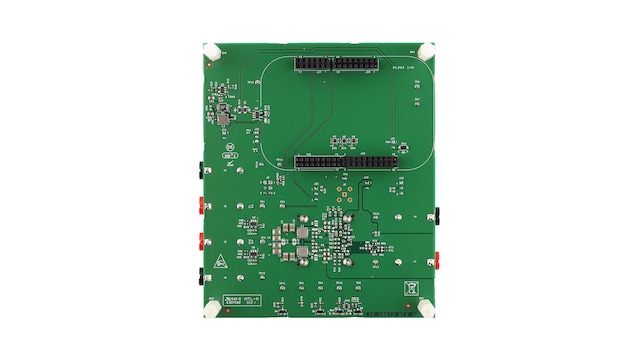

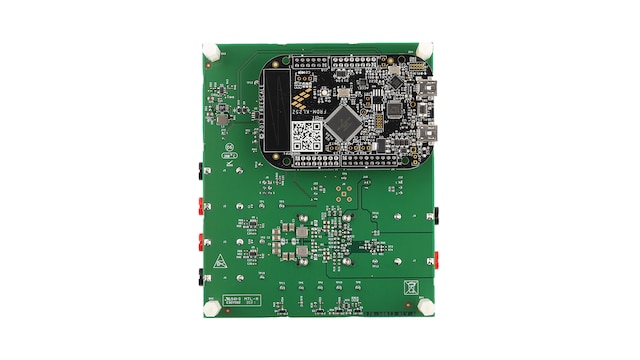

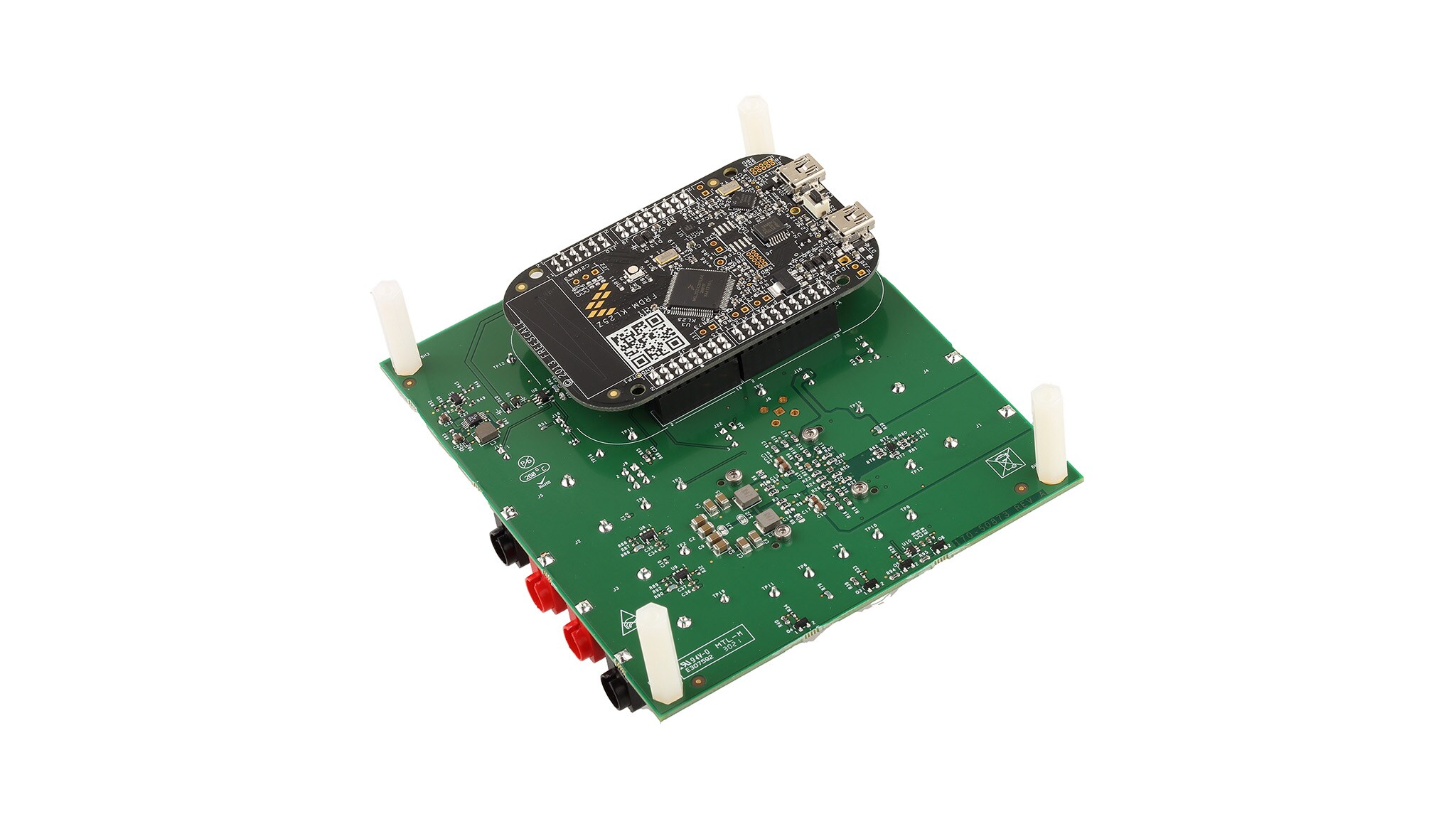

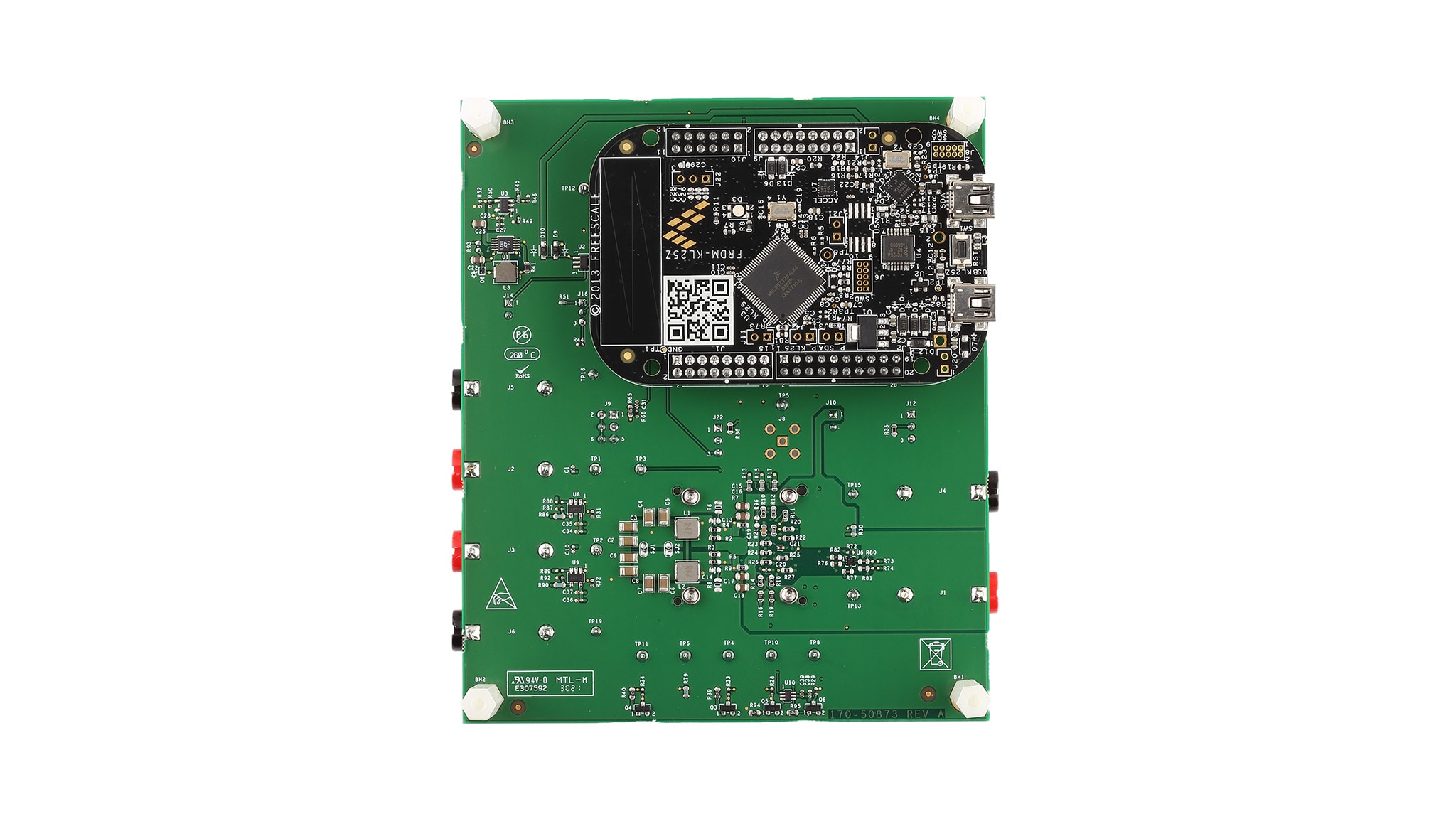

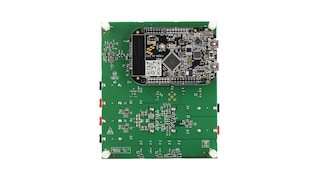

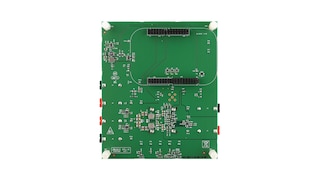

The FRDM-KL25Z is mounted to Arduino® connectors on the bottom of the board. The role of the FRDM-KL25Z is to manage SPI communication between the KITPF5200SKTEVM board and the GUI installed on the PC. The FRDM-KL25Z draws power from the USB cable connected to the PC.

対応製品

パワーマネージメント

PMIC

  • PF5200: 車載アプリケーション向けデュアル・チャネルPMIC - 高効率LVBUCK x 2、ASIL Bセーフティ・レベルに適合

Features

System Features

  • USB to I²C communication via the FRDM-KL25Z interface
  • Selectable OTP or TBB operation
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

PMIC Features

  • Two high efficiency buck converters
  • Watchdog timer/monitor
  • Monitoring circuit to fit ASIL B safety level
  • One-time programmable device configuration
  • 3.4 MHz I²C communication interface
  • 32-pin FC-QFN package with wettable flank

購入オプション

KITPF5200SKTEVM-Image

クリックして展開

  • KITPF5200SKTEVM
    アクティブ

  • PF5200 Socketed Evaluation Board.

  • Kit Contains

    • Assembled and tested KITPF5200SKTEVM and preprogrammed FRDM-KL25Z MCU board in an anti-static bag
    • 3.0 ft. USB-STD A to USB-B-mini cable
    • Jumpers mounted on board
    • Quick Start Guide
  • $320.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 2
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
