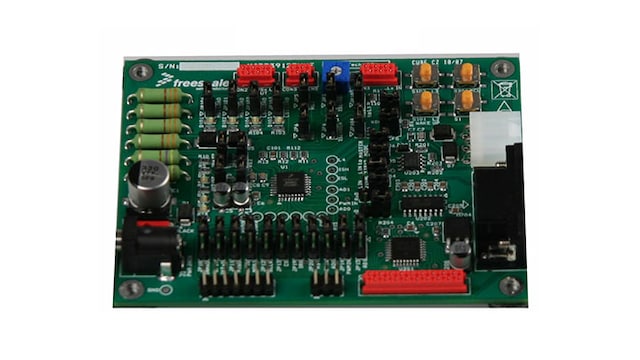

Evaluation Kit - 33912, SBC, DC Motor Pre-Driver

KIT33912EVME アクティブ

画像にカーソルを合わせると拡大表示されます。

The Evaluation Kit supports the 33912, which is a Serial Peripheral Interface (SPI) controlled System Basis Chip (SBC), combining many frequently used functions in an MCU based system, plus a Local Interconnect Network (LIN) transceiver. The 33912 has a 5.0 V, 50 mA low dropout regulator with full protection and reporting features. The device provides full SPI readable diagnostics and a selectable timing watchdog for detecting errant operation. The LIN Protocol Specification 2.0 and 2.1 compliant LIN transceiver has waveshaping circuitry that can be disabled for higher data rates.

The evaluation kit also supports the MC33910 and MC33911.

製品詳細

対応製品

インターフェース

オートモーティブLINソリューション

  • MC33910: LIN SBC with 2 x 60 mA High Side Drivers
  • MC33911: LIN System Basis Chip with DC Motor Predriver
  • MC33912: LIN SBC with DC Motor Predriver and Current Sense

Features

General Specifications

  • Configurable window watchdog

User Components

  • Two 50 mA high side and two 150 mA low side protected switches

Connectivity

  • Full-duplex SPI interface at frequencies up to 4.0 MHz
  • LIN transceiver capable of up to 100 kbit/s with wave shaping
  • Four high-voltage analog/logic Inputs

Power Management

  • 5.0 V low drop regulator with fault detection and low voltage reset (LVR) circuitry
  • Current sense module
  • Switched/protected 5.0 V output (used for Hall sensors)

購入オプション

KIT33912EVME-Image

クリックして展開

  • KIT33912EVME
    アクティブ

  • Evaluation Kit - MC33912, System Basis Chip with DC Motor Pre-driver and Current Sense.

    • KIT33912EVME Hardware
    • Quick Reference Guide
  • $92.92 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
