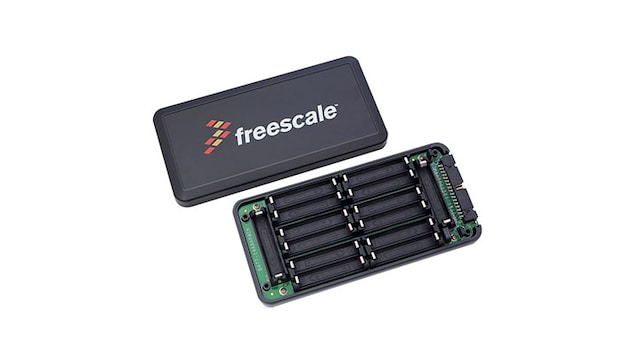

The BATT-14AAAPACK is a configurable battery pack that can be used to supply the MC33771 or MC33772 EVB’s. It is intended to ease the use of these EVB's by emulating a 3-cell to 14-cell battery stack thanks to standard and easily accessible batteries, packed in a compact housing that has the proper EVB compatible 34-pin connectivity.
Customers can now use the MC33771 or MC33772 EVB’s without having to design any additional hardware.
The pack includes 14 battery holders (standard AAA format, also known as LR3 or 10440) connected in series, an optional current sense resistor, as well as configuration jumpers and a 1.3 mm jack for charging.
Battery pack - 14 AAA cells.
