S32R45-PROC
-
The S32R45 Evaluation Board S32R45-PROC supports the development of high-performance 77GHz radar applications.
Kit Contains
- S32R45-PROC Processor board
- Power Supply
- USB and Ethernet Cables

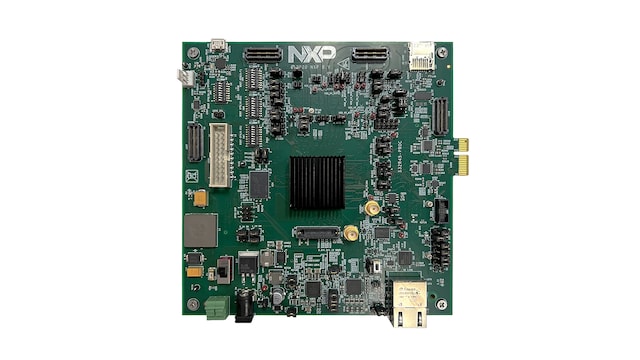

S32R45 Evaluation Board
S32R45-EVB アラートの受信
A comprehensive imaging radar SW development platform comprising of S32R45 and TEF82xx is available from NXP’s partner Novtech.
The S32R45 Evaluation Board S32R45-PROC supports the development of high-performance 77GHz radar applications targeted for automotive use cases, such as cascaded imaging radar, adaptive cruise control, and autonomous emergency braking.
Based on quad Arm® Cortex® A53 cores and triple Arm Cortex M7 lockstep cores in the S32R45 MPU, the S32R45 EVB offers substantial radar processing capabilities, in addition to a wide variety of interfaces (CAN FD, LIN, FlexRay®, Ethernet) to facilitate HW and SW development.
The S32R45 EVB consists of a processor board suitable for development of radar processing for the S32R45 processor.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
S32RレーダーMCU
- S32R45: S32R45イメージング・レーダー向け高性能プロセッサ
Features
Key Features
- S32R45 Radar MPU
- Single 12 V external power supply input with NXP FS8510 and PF8200 PMICs providing all the necessary EVB and MCU voltages
- Boot mode selection via switches on board
Memory
- 512 Mb (64 MByte) Serial NOR Flash memory
- SD card interface
- 32 Gb (4 GByte) SDRAM memory
Connectivity
- Standard 10-pin and 20-pin Arm debug connector and an Aurora trace connector
- Gb Ethernet PHY, with RJ45 connector
- End point PCIe connector
- CAN FD interface on processor board
- UART to Micro USB interface
- Connection to platform board provides additional CAN FD, LIN, FlexRay, Ethernet, PCIe and GPIO access
- Connection to MIPI CSI2 interfaces
