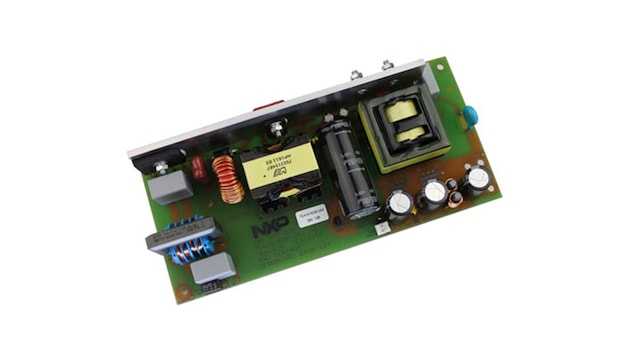

240 W Computing Power Supply
NXP‘s new DCM PFC + LLC resonant controller is based on NXP's novel cycle-by-cycle architecture (capacitive voltage control). The part has been released as a combo in a separate SO8 and SO16 package. The combo controller features very high efficiency at light load (10 % - 30 %) to be compliant with tomorrow's energy efficiency regulations (Energy Star v6, CoC tier 2, 80+ Platinum).
The TEA1916 also features low no-load power below 75 mW and meets EuP lot6. The LLC resonant topology makes it easier to meet Common Mode Noise requirements and 200 % peak power requirements (compared to flyback). Last but not least the part guarantees ease of design while supporting accurate burst mode and reduced audible noise.
製品詳細
対応製品
パワーマネージメント
セカンダリ・サイド・コントローラ
- TEA1995T: GreenChip Dual Synchronous Rectifier (SR) Controller
PFC内蔵AC-DCコントローラ
- TEA19162T: PFC Controller
- TEA19161T: Resonant Power Supply Control IC
- TEA19162HT: PFC Controller
Features
Power Management
- Improved, easier design due to cycle-by-cycle capacitive voltage control, which is linear related to the output power
- Different modes overload ranges ensure highest possible efficiency, especially at lower loads
- Low standby power performance, complying to all regulations while saving BOM cost (e.g. aux. supply can be omitted)
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類
3 ドキュメント
アプリケーション・ノート (1)
-
TEA19161 and TEA19162 controller ICs[AN11801]
カタログ (1)
-
NXP GreenChip ICs TEA1916 and TEA1995[75017644]
