S12XHZ Scalable Instrument Clusters Microcontrollers (MCUs) with CAN

S12XHZ 製造中止
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The industry's first instrumentation cluster MCU with on-chip TFT display driver revamps graphic display capabilities in the low-end automotive dashboard realm.

Our MC9S12XHZ family drives up to six analog gauges, dot matrix displays, LCDs and high-resolution color TFT displays.

S12XHZ complements the S12HZ family's high integration of systems and features:

  • More memory
  • More CAN channels
  • More IIC channels
  • More stepper stall detectors (SSD)
  • Faster bus frequency
  • XGATE coprocessor

ブロック図

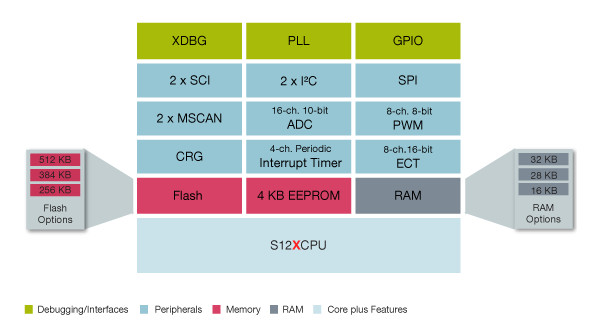

S12XHZ Microcontroller Block Diagram

S12XHZ Microcontroller Block Diagram
図を取得する PDF

Features

Key Features

  • XGATE coprocessor capable for building virtual peripherals and boosting overall performance
  • TFT display software driver capability using the XGATE
  • Up to six gauges/motor high-current outputs

Additional Features

  • S12X CPU @ 40 MHz bus speed
  • XGATE
  • EEPROM
  • LCD driver 32 frontplanes and four backplanes
  • Pulse-width modulator motor controller with 24 high-current drivers
  • Six stepper stall detectors (SSD)
  • Low-power/low-noise Pierce oscillator
  • Non-multiplexed external bus interface (EBI)
  • Analog-to-digital converter (ADC) 16-channel 12-bit resolution and 3μs conversion time
  • Enhance capture timer (ECT)
  • Periodic interrupt timer (PIT)
  • CAN 2.0A/B modules (MSCAN)
  • Serial peripheral interface (SPI)
  • Serial communication interface (SCI)
  • Inter-IC module (IIC)
  • Background debug module (BDM) debugger (xDBG)
  • On-chip voltage regulator

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPS12XHZja 19 アプリケーション・ノート Application Note t789 7 アプリケーション・ノート・ソフトウェア Application Note Software t783 3 エラッタ Errata t522 2 エンジニアリング・ブリテン Technical Notes t521 1 セレクタ・ガイド Selector Guide t528 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 リファレンス・マニュアル Reference Manual t877 1 製品変更のお知らせ Product Change Notice t526 1 製品概要 Product Brief t532 1 ja 4 1 1.01 English S12XCPUV1: This manual describes the features and operation of the central processing unit, or CPU12, used in HCS12 and HCS12X microcontrollers. 68HC12, HCS12, and HCS12X represent three generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. The CPU12 is a high-speed, 16-bit processing unit that has a programming model identical to that of the industry standard M68HC11 central processor unit (CPU). 1086856259148698484141 PSP 3.8 MB Registration without Disclaimer None documents Extended 1086856259148698484141 /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf 3825036 /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf S12XCPUV1 Y N 2016-10-31 S12XCPUV1 - Reference Manual /webapp/Download?colCode=S12XCPUV1&docLang=en /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Mar 13, 2005 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N S12XCPUV1 - Reference Manual 2 1 English MC9S12XHZ512FS: The MC9S12XHZ512 MCU is the industry's first instrumentation cluster MCU featuring an integrated thin-film transistor (TFT) display drive capability. The S12XHZ family is complemented by the low-end S12HZ family, which is based on NXP’s high volume S12 architecture and boasts 15 members, ranging from the ultra low-cost 32 KB ROM versions to devices with up to 256 KB of flash memory. 1187807754142720266758 PSP 226.7 KB None None documents None 1187807754142720266758 /docs/en/fact-sheet/MC9S12XHZ512FS.pdf 226674 /docs/en/fact-sheet/MC9S12XHZ512FS.pdf MC9S12XHZ512FS N 2007-08-22 9S12XHZ Family Single chip solution for instrument cluster - Fact Sheet /docs/en/fact-sheet/MC9S12XHZ512FS.pdf /docs/en/fact-sheet/MC9S12XHZ512FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Mar 13, 2008 Fact Sheet t523 ファクト・シート Fact Sheet Y N 9S12XHZ Family Single chip solution for instrument cluster - Fact Sheet 3 S912XHZ256F1VAL 1.06 English MC912XHZ family of microcontrollers is a fully pin-compatible extension to the existing MC9S12HZ family. It offers not only a larger memory but also incorporates all the architectural benefits of the new S12X-based family to deliver significantly higher performance. The MC9S12XHZ family retains the low cost, power consumption, EMC and code-size efficiency advantages. 1159823013738703694915 PSP 5.7 MB None None documents None 1159823013738703694915 /docs/en/data-sheet/MC9S12XHZ512.pdf 5659779 /docs/en/data-sheet/MC9S12XHZ512.pdf MC9S12XHZ512 N 2006-10-02 MC9S12XHZ512 - Data Sheet /docs/en/data-sheet/MC9S12XHZ512.pdf /docs/en/data-sheet/MC9S12XHZ512.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Oct 13, 2010 Data Sheet t520 データ・シート Data Sheet Y N MC9S12XHZ512 - Data Sheet 4 4.1 English Discusses MC9S12XHZ Family, the 16-bit microcontroller with an on-chip TFT display for instrumentation clusters 1159851326909695829845 PSP 369.8 KB None None documents None 1159851326909695829845 /docs/en/product-brief/MC9S12XHZ512PB.pdf 369756 /docs/en/product-brief/MC9S12XHZ512PB.pdf MC9S12XHZ512PB N 2006-10-02 MC9S12XHZ-Family product brief /docs/en/product-brief/MC9S12XHZ512PB.pdf /docs/en/product-brief/MC9S12XHZ512PB.pdf Product Brief N Y 899114358132306053 2022-12-07 pdf en Jan 4, 2007 Product Brief t532 製品概要 Product Brief N N MC9S12XHZ-Family product brief false ja ja アプリケーション・ノート Application Note 7 5 0 English Presenting information about Galvanically Isolated Circuit Board that provides electrical isolation between a development tool and an application. 1450347856433701644145 PSP 2.0 MB None None documents None 1450347856433701644145 /docs/en/application-note/AN5233.pdf 2000386 /docs/en/application-note/AN5233.pdf AN5233 documents N N 2021-07-21 AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note /docs/en/application-note/AN5233.pdf /docs/en/application-note/AN5233.pdf Application Note N 645036621402383989 2023-06-07 pdf N en Dec 16, 2015 645036621402383989 Application Note Y N AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note 6 1 English AN3330SW.zip /docs/en/application-note-software/AN3330SW.zip /webapp/sps/download/license.jsp?colCode=AN3330SW&docLang=en 1171478115353710498114 PSP 322.1 KB None None documents None 1171478115353710498114 /docs/en/application-note/AN3330.pdf 322144 /docs/en/application-note/AN3330.pdf AN3330 documents N 2007-02-14 Introduction to the Stepper Stall Detector Module /docs/en/application-note/AN3330.pdf /docs/en/application-note/AN3330.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 26, 2010 645036621402383989 Application Note Y N Introduction to the Stepper Stall Detector Module 7 0 English The XGATE peripheral coprocessor includes a safety feature called Software Error Detection. The Software Error Detection feature lets the XGATE detect conditions which should not occur during program execution. The detection of these conditions indicate that there are problems in the application code 1195161900057704918141 PSP 536.1 KB None None documents None 1195161900057704918141 /docs/en/application-note/AN3555.pdf 536057 /docs/en/application-note/AN3555.pdf AN3555 documents N 2007-11-17 Investigating XGATE Software Errors /docs/en/application-note/AN3555.pdf /docs/en/application-note/AN3555.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 15, 2007 645036621402383989 Application Note Y N Investigating XGATE Software Errors 8 0 English S12HZ, S12XHZ, 9S12XHZ512 MCU 1187994940369737051456 PSP 166.3 KB None None documents None 1187994940369737051456 /docs/en/application-note/AN3510.pdf 166300 /docs/en/application-note/AN3510.pdf AN3510 documents N 2007-08-24 S12HZ and S12XHZ Family Compatibility /docs/en/application-note/AN3510.pdf /docs/en/application-note/AN3510.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 27, 2007 645036621402383989 Application Note Y N S12HZ and S12XHZ Family Compatibility 9 0 English AN3493SW.zip /docs/en/application-note-software/AN3493SW.zip /webapp/sps/download/license.jsp?colCode=AN3493SW&docLang=en AN3493: This driver allows an S12X to directly drive a TFT LCD panel using general-purpose I/O and the XGATE. The driver provides all timing and data signals required by the panel and a simple color encoding scheme that minimizes the size of the internal RAM required to store complex graphics. 1183994964344718854921 PSP 277.4 KB None None documents None 1183994964344718854921 /docs/en/application-note/AN3493.pdf 277407 /docs/en/application-note/AN3493.pdf AN3493 documents N 2007-07-09 AN3493, XGATE Library: Driving a TFT LCD Panel - Application Notes /docs/en/application-note/AN3493.pdf /docs/en/application-note/AN3493.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 9, 2007 645036621402383989 Application Note Y N AN3493, XGATE Library: Driving a TFT LCD Panel - Application Notes 10 0 English AN3458: The XGATE is a coprocessor for the S12X(E) CPU that can serve multiple purposes. It can be used as a DMA controller, it can run driver code for the MCU?s peripherals, it can generate low-latency system responses, and it can be used for many other applications. 1179158393519712251328 PSP 200.5 KB None None documents None 1179158393519712251328 /docs/en/application-note/AN3458.pdf 200547 /docs/en/application-note/AN3458.pdf AN3458 documents N 2007-05-14 AN3458, Debugging XGATE Code Debug Features of S12X(E) MCUs - Application Notes /docs/en/application-note/AN3458.pdf /docs/en/application-note/AN3458.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 14, 2007 645036621402383989 Application Note Y N AN3458, Debugging XGATE Code Debug Features of S12X(E) MCUs - Application Notes 11 0 English AN3333SW.zip /docs/en/application-note-software/AN3333SW.zip /webapp/sps/download/license.jsp?colCode=AN3333SW&docLang=en AN3333: The XGATE signal gateway package is a collection of header and source files in the C programming language, enabling you to create a CAN and LIN signal level automotive body gateway. The gateway structure detailed in this application note is flexible enough to allow extensions and/or modifications to satisfy a particular environment?s requirements. 1162938001802691645284 PSP 745.3 KB None None documents None 1162938001802691645284 /docs/en/application-note/AN3333.pdf 745321 /docs/en/application-note/AN3333.pdf AN3333 documents N 2006-11-07 AN3333, XGATE Library: Signal Gateway - Application Notes /docs/en/application-note/AN3333.pdf /docs/en/application-note/AN3333.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 7, 2006 645036621402383989 Application Note Y N AN3333, XGATE Library: Signal Gateway - Application Notes アプリケーション・ノート・ソフトウェア Application Note Software 3 12 0 English This driver allows an S12X to directly drive a TFT LCD
panel using general-purpose I/O and the XGATE. The
driver provides all timing and data signals required by
the panel and a simple color encoding scheme that
minimizes the size of the internal RAM required to store complex graphics. The implementation described supports a panel up to approximately 30,000 pixels with 16-bit color resolution. 1183994966612720190475 PSP 203.3 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 1183994966612720190475 /docs/en/application-note-software/AN3493SW.zip 203330 /docs/en/application-note-software/AN3493SW.zip AN3493SW documents N 2016-10-31 Software for AN3493 /webapp/sps/download/license.jsp?colCode=AN3493SW&lang_cd=ja /docs/en/application-note-software/AN3493SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Jul 9, 2007 789425793691620447 Application Note Software N Software for AN3493 13 0 English AN3333 application note discusses how to create a CAN and LIN signal level automotive body gateway with the XGATE coprocessor in a 16bit mcu architecture. 1163517293987711193741 PSP 185.7 KB Click-Thru Software Licensing Agreement-No Registration 1057242594560695394396 documents None 1163517293987711193741 /docs/en/application-note-software/AN3333SW.zip 185654 /docs/en/application-note-software/AN3333SW.zip AN3333SW documents N 2006-11-14 AN3333 Application Note Software package /webapp/sps/download/license.jsp?colCode=AN3333SW&lang_cd=ja /docs/en/application-note-software/AN3333SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Nov 14, 2006 789425793691620447 Application Note Software D N AN3333 Application Note Software package 14 0 English 1171478119095710424945 PSP 2.0 MB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 1171478119095710424945 /docs/en/application-note-software/AN3330SW.zip 2030152 /docs/en/application-note-software/AN3330SW.zip AN3330SW documents N 2016-10-31 Introduction to the Stepper Stall Detector Module - Software /webapp/sps/download/license.jsp?colCode=AN3330SW&lang_cd=ja /docs/en/application-note-software/AN3330SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Feb 14, 2006 789425793691620447 Application Note Software N Introduction to the Stepper Stall Detector Module - Software エンジニアリング・ブリテン Technical Notes 1 15 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA™) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=ja /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin エラッタ Errata 2 16 Rev. April 16 English Mask Set Errata For MC9S12XHZ512, Mask 0M80F 1171626774234719301238 PSP 58.7 KB None None documents None 1171626774234719301238 /docs/en/errata/MSE9S12XHZ512_0M80F.htm 58722 /docs/en/errata/MSE9S12XHZ512_0M80F.htm MSE9S12XHZ512_0M80F documents N N 2007-02-16 MSE9S12XHZ512_0M80F Mask Set Errata /docs/en/errata/MSE9S12XHZ512_0M80F.htm /docs/en/errata/MSE9S12XHZ512_0M80F.htm Errata N 155452329886410597 2022-12-07 htm N en Nov 6, 2012 155452329886410597 Errata Y N MSE9S12XHZ512_0M80F Mask Set Errata 17 Rev. April 16 English Mask Set Errata For MC9S12XHZ512, Mask 1M80F 1206002274512724940036 PSP 58.7 KB None None documents None 1206002274512724940036 /docs/en/errata/MSE9S12XHZ512_1M80F.htm 58722 /docs/en/errata/MSE9S12XHZ512_1M80F.htm MSE9S12XHZ512_1M80F documents N N 2008-03-20 MSE9S12XHZ512_1M80F Mask Set Errata /docs/en/errata/MSE9S12XHZ512_1M80F.htm /docs/en/errata/MSE9S12XHZ512_1M80F.htm Errata N 155452329886410597 2022-12-07 htm N en Nov 6, 2012 155452329886410597 Errata Y N MSE9S12XHZ512_1M80F Mask Set Errata 製品変更のお知らせ Product Change Notice 1 18 0 English 1402342755646718103182 PSP 223.2 KB None None documents None 1402342755646718103182 /docs/en/product-change-notice/PCN16253.htm 223217 /docs/en/product-change-notice/PCN16253.htm PCN16253 documents N 2014-06-09 0.25um ATMC and TSMCFAB3/11 KLM QFP Copper Wire and Leadframe Flag Conversion Qualification /docs/en/product-change-notice/PCN16253.htm /docs/en/product-change-notice/PCN16253.htm Product Change Notice N 454076741825495278 2022-12-07 htm en Jun 9, 2014 454076741825495278 Product Change Notice D N 0.25um ATMC and TSMCFAB3/11 KLM QFP Copper Wire and Leadframe Flag Conversion Qualification セレクタ・ガイド Selector Guide 1 19 3 English Use this document to select adaptor cards to evaluate S12X Family. 1175690648883730091874 PSP 79.6 KB None None documents None 1175690648883730091874 /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf 79620 /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf SGS12XDTRCRDFLYR documents N 2007-04-04 S12X Daughter Card Selector Guide /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Jun 27, 2008 553557935274807777 Selector Guide Y N S12X Daughter Card Selector Guide false 0 S12XHZ downloads ja true 1 Y PSP Y Y アプリケーション・ノート 7 /docs/en/application-note/AN5233.pdf 2021-07-21 1450347856433701644145 PSP 5 Dec 16, 2015 Application Note Presenting information about Galvanically Isolated Circuit Board that provides electrical isolation between a development tool and an application. None /docs/en/application-note/AN5233.pdf English documents 2000386 None 645036621402383989 2023-06-07 N /docs/en/application-note/AN5233.pdf AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note /docs/en/application-note/AN5233.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note 2.0 MB AN5233 N 1450347856433701644145 /docs/en/application-note/AN3330.pdf 2007-02-14 1171478115353710498114 PSP 6 Nov 26, 2010 Application Note None /docs/en/application-note/AN3330.pdf English documents 322144 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3330.pdf Introduction to the Stepper Stall Detector Module /docs/en/application-note/AN3330.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Introduction to the Stepper Stall Detector Module 322.1 KB AN3330 N 1171478115353710498114 /docs/en/application-note/AN3555.pdf 2007-11-17 1195161900057704918141 PSP 7 Nov 15, 2007 Application Note The XGATE peripheral coprocessor includes a safety feature called Software Error Detection. The Software Error Detection feature lets the XGATE detect conditions which should not occur during program execution. The detection of these conditions indicate that there are problems in the application code None /docs/en/application-note/AN3555.pdf English documents 536057 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3555.pdf Investigating XGATE Software Errors /docs/en/application-note/AN3555.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Investigating XGATE Software Errors 536.1 KB AN3555 N 1195161900057704918141 /docs/en/application-note/AN3510.pdf 2007-08-24 1187994940369737051456 PSP 8 Aug 27, 2007 Application Note S12HZ, S12XHZ, 9S12XHZ512 MCU None /docs/en/application-note/AN3510.pdf English documents 166300 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3510.pdf S12HZ and S12XHZ Family Compatibility /docs/en/application-note/AN3510.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N S12HZ and S12XHZ Family Compatibility 166.3 KB AN3510 N 1187994940369737051456 /docs/en/application-note/AN3493.pdf 2007-07-09 1183994964344718854921 PSP 9 Jul 9, 2007 Application Note AN3493: This driver allows an S12X to directly drive a TFT LCD panel using general-purpose I/O and the XGATE. The driver provides all timing and data signals required by the panel and a simple color encoding scheme that minimizes the size of the internal RAM required to store complex graphics. None /docs/en/application-note/AN3493.pdf English documents 277407 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3493.pdf AN3493, XGATE Library: Driving a TFT LCD Panel - Application Notes /docs/en/application-note/AN3493.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3493, XGATE Library: Driving a TFT LCD Panel - Application Notes 277.4 KB AN3493 N 1183994964344718854921 /docs/en/application-note/AN3458.pdf 2007-05-14 1179158393519712251328 PSP 10 May 14, 2007 Application Note AN3458: The XGATE is a coprocessor for the S12X(E) CPU that can serve multiple purposes. It can be used as a DMA controller, it can run driver code for the MCU?s peripherals, it can generate low-latency system responses, and it can be used for many other applications. None /docs/en/application-note/AN3458.pdf English documents 200547 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3458.pdf AN3458, Debugging XGATE Code Debug Features of S12X(E) MCUs - Application Notes /docs/en/application-note/AN3458.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3458, Debugging XGATE Code Debug Features of S12X(E) MCUs - Application Notes 200.5 KB AN3458 N 1179158393519712251328 /docs/en/application-note/AN3333.pdf 2006-11-07 1162938001802691645284 PSP 11 Nov 7, 2006 Application Note AN3333: The XGATE signal gateway package is a collection of header and source files in the C programming language, enabling you to create a CAN and LIN signal level automotive body gateway. The gateway structure detailed in this application note is flexible enough to allow extensions and/or modifications to satisfy a particular environment?s requirements. None /docs/en/application-note/AN3333.pdf English documents 745321 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3333.pdf AN3333, XGATE Library: Signal Gateway - Application Notes /docs/en/application-note/AN3333.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3333, XGATE Library: Signal Gateway - Application Notes 745.3 KB AN3333 N 1162938001802691645284 アプリケーション・ノート・ソフトウェア 3 /docs/en/application-note-software/AN3493SW.zip 2016-10-31 1183994966612720190475 PSP 12 Jul 9, 2007 Application Note Software This driver allows an S12X to directly drive a TFT LCD
panel using general-purpose I/O and the XGATE. The
driver provides all timing and data signals required by
the panel and a simple color encoding scheme that
minimizes the size of the internal RAM required to store complex graphics. The implementation described supports a panel up to approximately 30,000 pixels with 16-bit color resolution. Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN3493SW.zip English documents 203330 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN3493SW&lang_cd=ja Software for AN3493 /docs/en/application-note-software/AN3493SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software for AN3493 203.3 KB AN3493SW N 1183994966612720190475 /docs/en/application-note-software/AN3333SW.zip 2006-11-14 1163517293987711193741 PSP 13 Nov 14, 2006 Application Note Software AN3333 application note discusses how to create a CAN and LIN signal level automotive body gateway with the XGATE coprocessor in a 16bit mcu architecture. Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN3333SW.zip English documents 185654 1057242594560695394396 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN3333SW&lang_cd=ja AN3333 Application Note Software package /docs/en/application-note-software/AN3333SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N AN3333 Application Note Software package 185.7 KB AN3333SW N 1163517293987711193741 /docs/en/application-note-software/AN3330SW.zip 2016-10-31 1171478119095710424945 PSP 14 Feb 14, 2006 Application Note Software Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN3330SW.zip English documents 2030152 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN3330SW&lang_cd=ja Introduction to the Stepper Stall Detector Module - Software /docs/en/application-note-software/AN3330SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Introduction to the Stepper Stall Detector Module - Software 2.0 MB AN3330SW N 1171478119095710424945 エラッタ 2 /docs/en/errata/MSE9S12XHZ512_0M80F.htm 2007-02-16 1171626774234719301238 PSP 16 Nov 6, 2012 Errata Mask Set Errata For MC9S12XHZ512, Mask 0M80F None /docs/en/errata/MSE9S12XHZ512_0M80F.htm English documents 58722 None 155452329886410597 2022-12-07 N /docs/en/errata/MSE9S12XHZ512_0M80F.htm MSE9S12XHZ512_0M80F Mask Set Errata /docs/en/errata/MSE9S12XHZ512_0M80F.htm documents 155452329886410597 Errata N en None Y htm Rev. April 16 N N MSE9S12XHZ512_0M80F Mask Set Errata 58.7 KB MSE9S12XHZ512_0M80F N 1171626774234719301238 /docs/en/errata/MSE9S12XHZ512_1M80F.htm 2008-03-20 1206002274512724940036 PSP 17 Nov 6, 2012 Errata Mask Set Errata For MC9S12XHZ512, Mask 1M80F None /docs/en/errata/MSE9S12XHZ512_1M80F.htm English documents 58722 None 155452329886410597 2022-12-07 N /docs/en/errata/MSE9S12XHZ512_1M80F.htm MSE9S12XHZ512_1M80F Mask Set Errata /docs/en/errata/MSE9S12XHZ512_1M80F.htm documents 155452329886410597 Errata N en None Y htm Rev. April 16 N N MSE9S12XHZ512_1M80F Mask Set Errata 58.7 KB MSE9S12XHZ512_1M80F N 1206002274512724940036 エンジニアリング・ブリテン 1 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 15 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA™) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=ja MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 セレクタ・ガイド 1 /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf 2007-04-04 1175690648883730091874 PSP 19 Jun 27, 2008 Selector Guide Use this document to select adaptor cards to evaluate S12X Family. None /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf English documents 79620 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf S12X Daughter Card Selector Guide /docs/en/product-selector-guide/SGS12XDTRCRDFLYR.pdf documents 553557935274807777 Selector Guide N en None Y pdf 3 N S12X Daughter Card Selector Guide 79.6 KB SGS12XDTRCRDFLYR N 1175690648883730091874 データ・シート 1 /docs/en/data-sheet/MC9S12XHZ512.pdf 2006-10-02 1159823013738703694915 PSP 3 Oct 13, 2010 Data Sheet データ・シート MC912XHZ family of microcontrollers is a fully pin-compatible extension to the existing MC9S12HZ family. It offers not only a larger memory but also incorporates all the architectural benefits of the new S12X-based family to deliver significantly higher performance. The MC9S12XHZ family retains the low cost, power consumption, EMC and code-size efficiency advantages. None /docs/en/data-sheet/MC9S12XHZ512.pdf English 5659779 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC9S12XHZ512.pdf MC9S12XHZ512 - Data Sheet /docs/en/data-sheet/MC9S12XHZ512.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 1.06 N MC9S12XHZ512 - Data Sheet 5.7 MB S912XHZ256F1VAL MC9S12XHZ512 N 1159823013738703694915 ファクト・シート 1 /docs/en/fact-sheet/MC9S12XHZ512FS.pdf 2007-08-22 1187807754142720266758 PSP 2 Mar 13, 2008 Fact Sheet ファクト・シート MC9S12XHZ512FS: The MC9S12XHZ512 MCU is the industry's first instrumentation cluster MCU featuring an integrated thin-film transistor (TFT) display drive capability. The S12XHZ family is complemented by the low-end S12HZ family, which is based on NXP’s high volume S12 architecture and boasts 15 members, ranging from the ultra low-cost 32 KB ROM versions to devices with up to 256 KB of flash memory. None /docs/en/fact-sheet/MC9S12XHZ512FS.pdf English 226674 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/MC9S12XHZ512FS.pdf 9S12XHZ Family Single chip solution for instrument cluster - Fact Sheet /docs/en/fact-sheet/MC9S12XHZ512FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N 9S12XHZ Family Single chip solution for instrument cluster - Fact Sheet 226.7 KB MC9S12XHZ512FS N 1187807754142720266758 リファレンス・マニュアル 1 /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf 2016-10-31 1086856259148698484141 PSP 1 Mar 13, 2005 Reference Manual リファレンス・マニュアル S12XCPUV1: This manual describes the features and operation of the central processing unit, or CPU12, used in HCS12 and HCS12X microcontrollers. 68HC12, HCS12, and HCS12X represent three generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. The CPU12 is a high-speed, 16-bit processing unit that has a programming model identical to that of the industry standard M68HC11 central processor unit (CPU). Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf English 3825036 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=S12XCPUV1&docLang=en S12XCPUV1 - Reference Manual /secured/assets/documents/en/reference-manual/S12XCPUV1.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 1.01 Y N S12XCPUV1 - Reference Manual 3.8 MB S12XCPUV1 N 1086856259148698484141 製品変更のお知らせ 1 /docs/en/product-change-notice/PCN16253.htm 2014-06-09 1402342755646718103182 PSP 18 Jun 9, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16253.htm English documents 223217 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16253.htm 0.25um ATMC and TSMCFAB3/11 KLM QFP Copper Wire and Leadframe Flag Conversion Qualification /docs/en/product-change-notice/PCN16253.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N 0.25um ATMC and TSMCFAB3/11 KLM QFP Copper Wire and Leadframe Flag Conversion Qualification 223.2 KB PCN16253 N 1402342755646718103182 製品概要 1 /docs/en/product-brief/MC9S12XHZ512PB.pdf 2006-10-02 1159851326909695829845 PSP 4 Jan 4, 2007 Product Brief 製品概要 Discusses MC9S12XHZ Family, the 16-bit microcontroller with an on-chip TFT display for instrumentation clusters None /docs/en/product-brief/MC9S12XHZ512PB.pdf English 369756 None Product Brief 2022-12-07 /docs/en/product-brief/MC9S12XHZ512PB.pdf MC9S12XHZ-Family product brief /docs/en/product-brief/MC9S12XHZ512PB.pdf documents 899114358132306053 Product Brief N Y en None N t532 pdf 4.1 N MC9S12XHZ-Family product brief 369.8 KB MC9S12XHZ512PB N 1159851326909695829845 true Y Products
