PowerQUICC® Processor with CPM (2 SCC, 1 SMC), 10/100 Ethernet

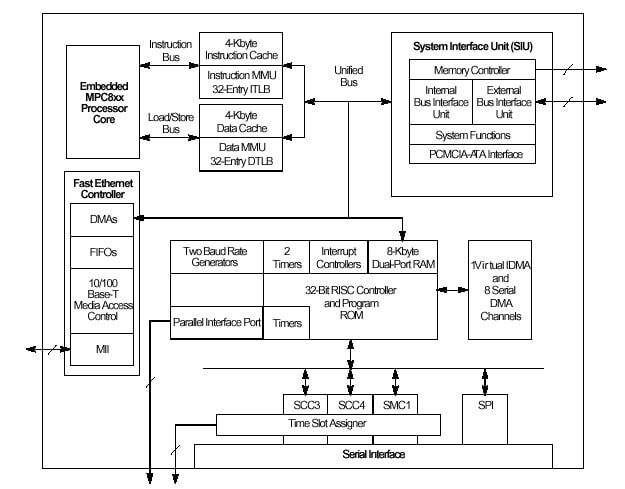

The MPC852T PowerQUICC® processor delivers a versatile, integrated solution for controller applications such as communications and networking products.
- Offers ideal support for ethernet to ethernet applications such as line card
- Provides superior performance over traditional architectures by offloading communications intensive processing from the embedded core
- Includes strong third-party tools support through NXP®.s Design Alliance Program
製品詳細
Features
- Maximum frequency operation of the external bus is 66 MHz in 1:1 mode
- Single-issue, 32-bit core (compatible with Power Architecture technology) with 32, 32-bit general-purpose registers (GPRs)
- Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits)
- 32 address lines
- Memory controller (eight banks)
- General-purpose timers
- System integration unit (SIU)
- Interrupts
- Communications processor module (CPM)
- Two baud rate generators
- Two SCCs (serial communication controllers) (10BaseT Ethernet, HDLC, Transparent)
- One SMC (serial management channel)
- One SPI (serial peripheral interface)
- Fast Ethernet controller (FEC)
- PCMCIA interface
- Debug interface
- 1.8 V Core and 3.3 V I/O operation with 5-V TTL compatibility
- 256-pin, 23*23 1.27 ball pitch (BGA) package
比較表
MPC866 Family Versions and Masks
| Qual | Process | Mask | IMMR [16:31] | |
|---|---|---|---|---|
| Rev 0.3 | MC | HiP6W | 3L90H | 0x0800 |
| Rev A.0 | MC | HiP6W | 0L96R | 0x0801 |
