Name: QorIQ Qonverge B4420 Baseband Processor
Availability: BackOrder

製品詳細

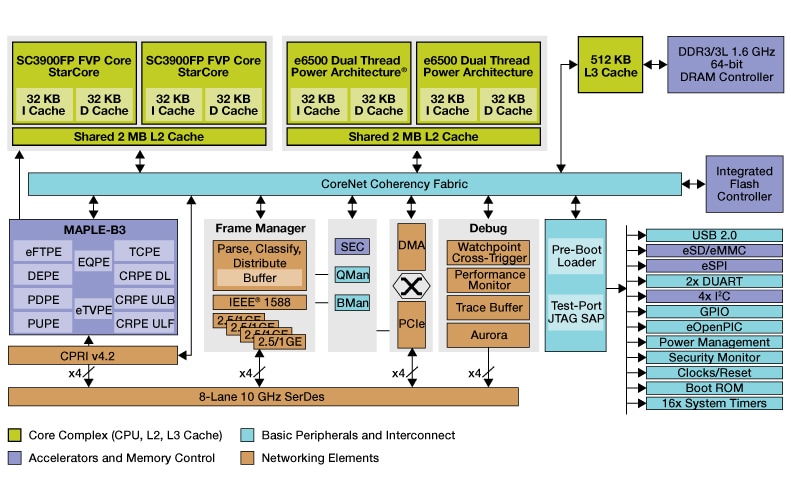

ブロック図

B4420 BD IMG

図を取得する PDF

Features

Core Complex

Two e6500 dual-thread cores built on Power Architecture® technology up to 1.6 GHz with AltiVec® 128-bit SIMD engines
Two SC3900FP Fixed/Floating-point DSP cores built on StarCore®. Technology up to 1.2 GHz, each delivering 38.4 GMacs/Core for Fixed Point or 19.2 GFlops/Core for Floating Point.

Accelerators and Memory Controllers

Queue Manager and Buffer Manager for simplified sharing of network interfaces and hardware accelerators and management of buffer pools
Datapath Acceleration Architecture for packet parsing, classifying and distribution
Multi-accelerator platform engine for baseband (MAPLE-B) for LTE, LTE-Advanced and WCDMA (HSPA/HSPA+)
DDR3/3L SDRAM 1.6 GHz 64-bit memory controllers with ECC and interleaving support with attached 512 KB L3 cache
Integrated security acceleration (SEC 5.3)
Trust architecture secure boot
Enhanced serial peripheral interfaces (eSPI)
Enhanced secure digital host controller (eSD/eMMC)
Four I²C controllers
Integrated flash controller supporting NAND and NOR flash and general SRAM

Basic Peripherals and Interconnect

Four Aurora trace interfaces
Four UART controller
CoreNet® – Internal non-blocking switch fabric for full cache coherent system
USB 2.0 controller
JTAG - Test Access Port (TAP) and Boundary Scan Architecture compliant with IEEE® Std. 1149.1 and 1149.6
GPIOs
32-bit timers

Networking and Antenna interfaces

High-speed interfaces multiplexed into 8 SerDes 10G ports
- Three Ethernet Interfaces supporting 2.5G/1G with IEEE 1588.2 support
- Four CPRI 4.2 controllers running at up to 9.8G
- Four lanes PCI Express® v2.0 controllers at up to 5G

Package

Package – FC-PBGA, 33 mm x 33 mm, 1020 pins, 1 mm pitch, Pb-free
