Getting Started with the TEA2017DK1003 Development Kit

最終更新日時： Jan 19, 2023サポート TEA2017DK1003 | TEA2017 Dev kit

このドキュメントの内容

  • 1

    Get Started

お客様の TEA2017DK1003 | TEA2017 Dev kit

このドキュメントの内容

1. Get Started

1.1 Kit Content and Packing List

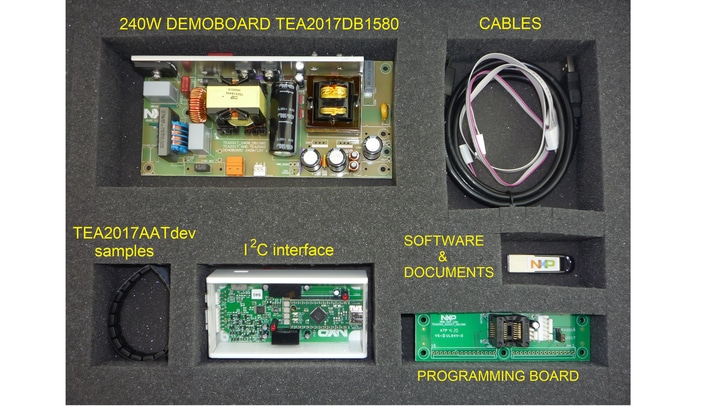

Figure 1.TEA2017DK1003 Development Kit

The TEA2017DK1003 development kit contents include:

  • TEA2017DB1580 240 W 12 V 20 A demo board
  • USB-I2C interface board
  • TEA20xx_socket_DB1586 programming board
  • TEA2017AATdev IC samples
  • USB, 3-pin and 6-pin connection cables
  • USB memory stick with Ringo software and documents

    • 1.2 Required Equipment

    • AC mains source
    • Power analyzer (optional)
    • Electronic load (minimum: 20 A at 12 V)
    • Oscilloscope for observing operation behavior
    • Windows PC and USB for parameter modifications via software and interface

    1.3 System Requirements

    • PC with Windows (software tested for Windows 7 and Windows 10 but also works on XP, Vista and Windows 8)
    • 64-bit and 32-bit versions of Ringo software available

    1.4 User Manuals

    The Ringo software package contains documents and tools.

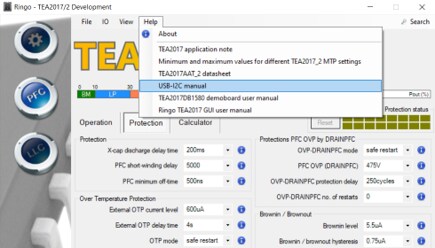

    Figure 2.Ringo software
