1. Installation

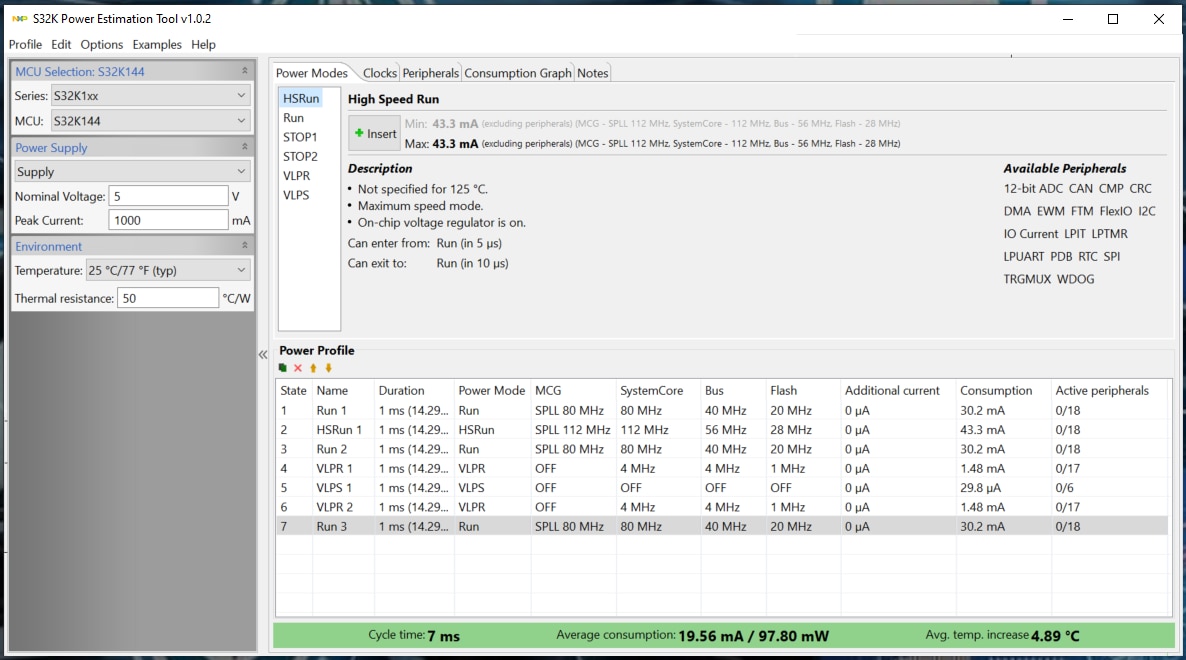

The S32K Power Estimation Tool (PET) provides a user interface to generate a power profile for an application use case easily and calculate a first estimate of the average power consumption.
This information should only be considered as an initial reference.
1.1 S32K Power Estimation Tool Installation
- Download and execute the S32K_Power_Estimation_Tool_1.0.2.exe installer
-

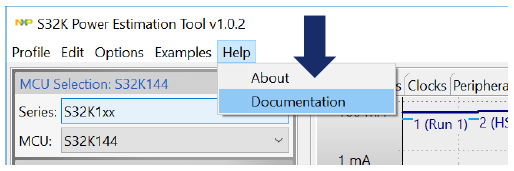

After a successful installation, you can find the S32K PET user’s guide at
C:\NXP\S32K Power Estimation Tool\docor just by clicking Help > Documentation at the top menu
1.2 Limitations

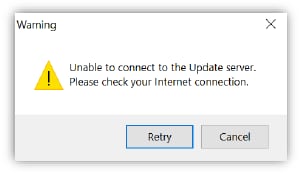

The S32K PET currently DOES NOT handle automatically redirection to proxy authenticated web pages. If you get a warning alert while running the application, you may be in an advanced authenticated network.
1.3 Short-term Workaround
Open the
kpet.batfile, locatedC:\NXP\S32K Power Estimation Tool\bin- Replace “http” by “https” in the second line
- Restart the application, once updated
