The MTRCKTDPS5643L motor control development kit is ideal for applications requiring two PMSM motors, like active suspension or electric powertrain. The kit is designed to enable rapid prototyping and evaluation of the motor control application without having to wait for the final hardware design. The kit includes a 32-bit NXP® MPC5643L based controller board and the 3-phase low-voltage power stage board.

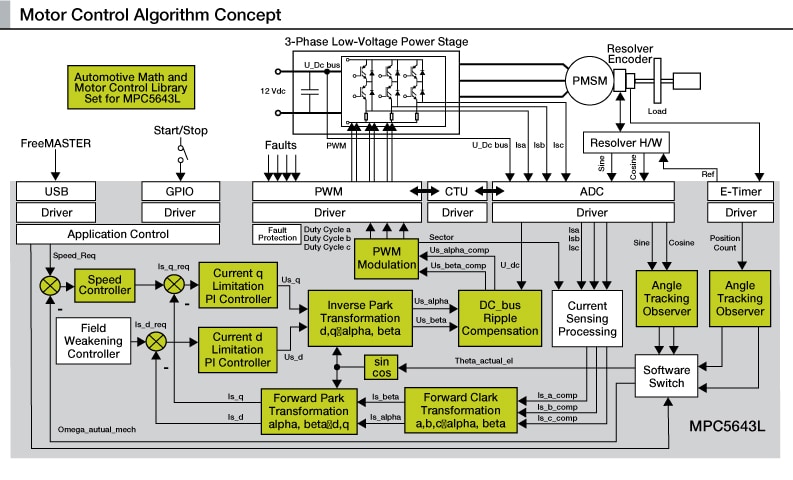

An integral part of the automotive motor control development kit is the application software which provides a complete reference implementation of the PMSM motor control application and also takes advantage of the Automotive Math and Motor Control Library Set.
図を選択する。:
The NXP MTRCKTDPS5643L motor control development kit is ideal for applications requiring two PMSM motors, such as active suspension or electric powertrain

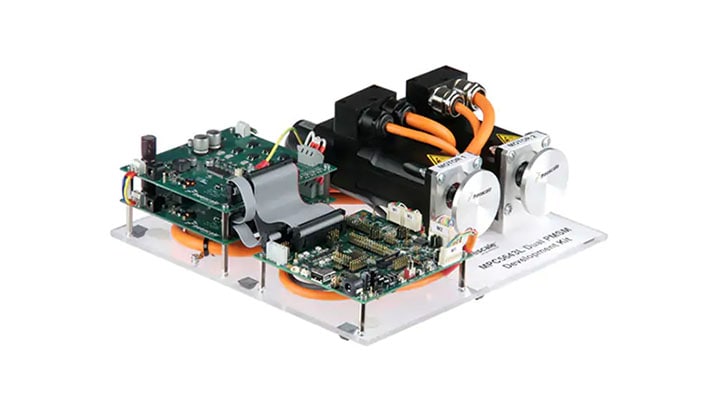

MTRCCBP5643L with two 3-phase PMSM motors.
MPC5643L Development Board for dual 3-phase PMSM.
クイック・リファレンス ドキュメンテーションの種類.
5 ドキュメント
2 ソフトウェア・ファイル
