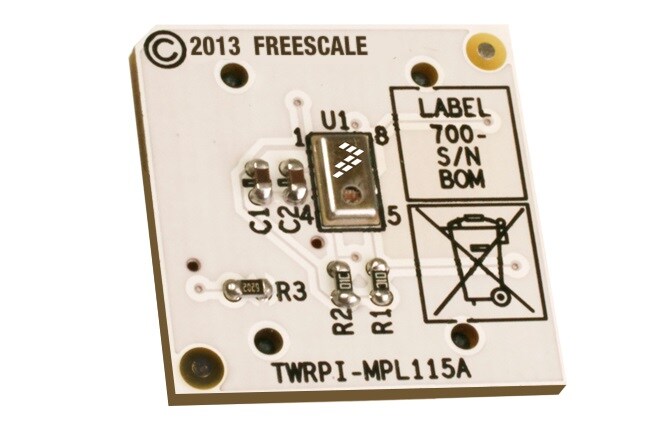

Tower System Digital Barometer Plug-In

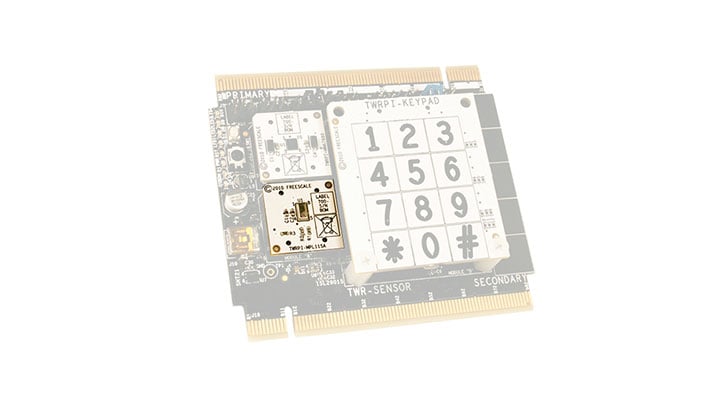

It's easy to integrate barometric sensors into your embedded designs using the Tower® System with the TWR-MPL115A Digital Barometer Plug-In (TWRPI). This plug-in, or daughter card, is compatible with Tower System modules that feature Tower plug-in sockets and brings the MPL115A barometer to your designs in a snap.
製品詳細
対応製品
センサ
気圧 15 ～ 150 kPa
- MPL115A: Absolute Digital Pressure Sensor (50 to 115 kPa)
Features
Connectivity
- Compatible with the Tower® System modules that use swappable plug-ins (TWRPIs)
Sensors
- MPL115A2 I2C digital barometer
- Digitized pressure and temperature information together with programmed calibration coefficients for host micro use
- 50 kPa to 115 kPa absolute pressure with 1 kPa accuracy
