EasyEVSE Entry-level Development Platform
- 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。
The EasyEVSE development platform provides hardware configuration instructions and example software to quickly set up a secure connection between a simulated electric vehicle supply equipment (EVSE) for an entry level charging station. This modular scalable platform is the foundation for developing secure wireless cloud connectivity and enable the on-chip secure enclave, accurate energy billing, OCPP (Open Charge Pont Protocol) and Matter communication.
製品詳細

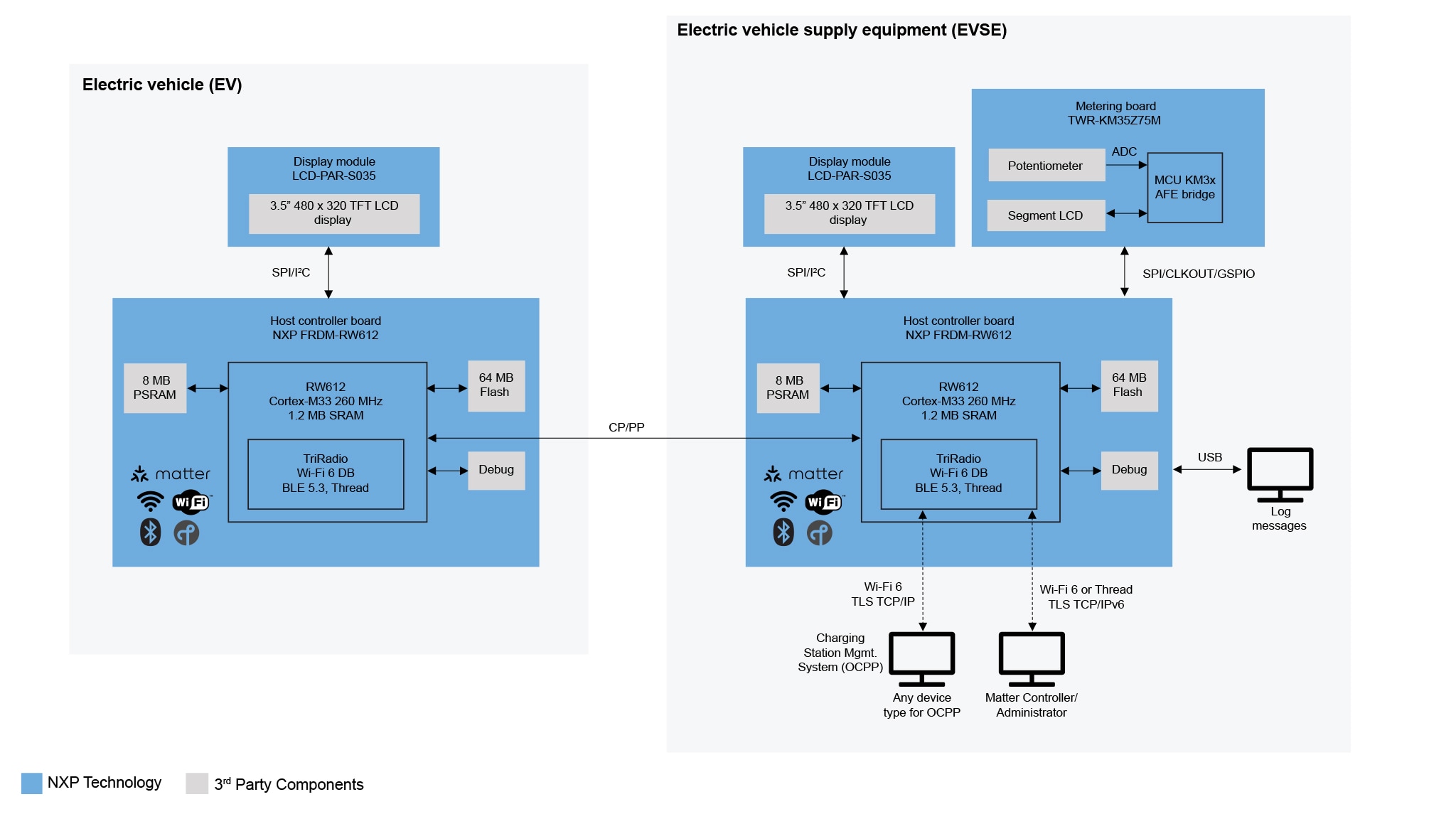

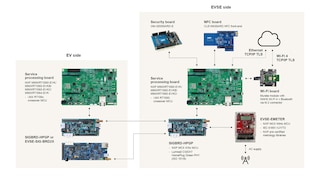

ブロック図
Features
Processors
- RW612 Wireless MCU with integrated Tri-radio
- 1x 260 MHz Arm Cortex-M33
- On-chip 1.2 MB SRAM
- PSRAM interface for memory expansion
- RMMI/Fast Ethernet, USB-Type C, SPI, I²C, I²S, UART, SDIO 3.0
- Security (secure enclave and Arm TrustZone-M)
- Matter over Wi-Fi
- Matter over Thread
- RTC and watchdog timers
- 32-bit general purpose timers/PWM
- 16-bit ADC and 10-bit DAC
- Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
- Bluetooth LE radio
- 802.15.4 radio supporting Zigbee and Thread
- LCD interface
- MKM35Z512 Metrology MCU
- Arm Cortex-M0, up to 75 MHz
- 4 x 24-bit Sigma Delta ADC, 16ch, 16-bit SAR ADC, up to 4 PGA
- Tamper detection, random number generator, MMCAU, CRC
Connectors
- Arduino® Header (with FRDM expansion rows)
- FRDM Header
- Pmod™
- mikroBUS™
Tools and OS Support
- MCUXpresso SDK and FreeRTOS
Required Hardware

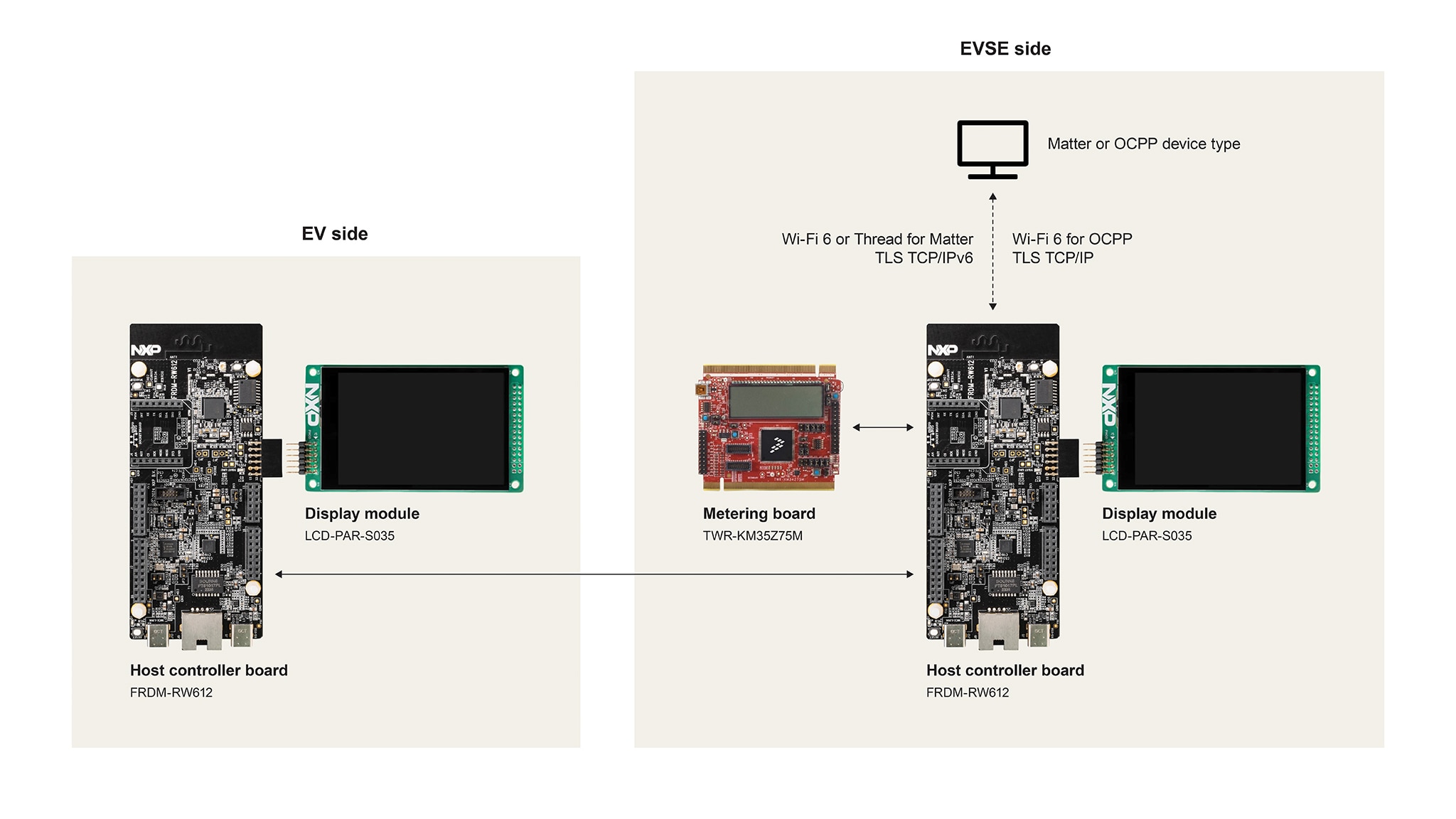

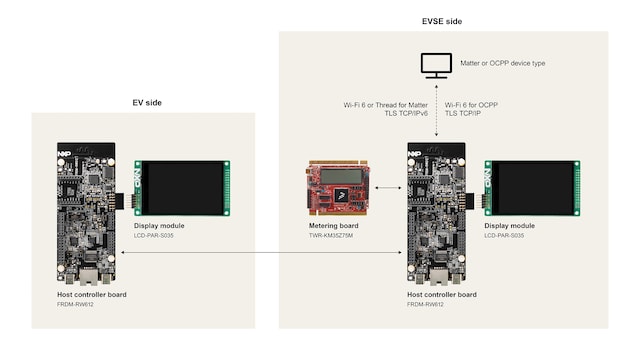

To run the EasyEVSE EasyEVSE Entry-level Development Platform, the following hardware and wires are needed:
Electric Vehicle Supply Equipment (EVSE) Side
- 1 x FRDM-RW612
- 1 x TWR-KM35Z75M
- 1x LCD-PAR-S035
Electric Vehicle (EV) Side
- 1 x FRDM-RW612
- 1x LCD-PAR-S035
Additional Miscellaneous Hardware
- EVSE side: 7 x male-to-female 2.54-mm jumper cables to connect the FRDM-RW612 on the EVSE side with the TWR-KM35Z75M board
- EVSE to EV: 3 x male-to-male 2.54-mm jumper cable to connect the FRDM-RW612 on the EVSE side with the FRDM-RW612 on the EV side
Product Table
| Part Number | Board Description | |
|---|---|---|
| Service Processing Board (choose one) | FRDM-RW612 | FRDM-RW612 is a compact and scalable development board for rapid prototyping of the RW61x series of Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 tri-radio wireless MCUs |
| Metering Board | TWR-KM35Z75M | Tower System development board for Kinetis KM35 metrology MCUs |
| Display Panel (choose one) | LCD-PAR-S035 | 3.5” 480x320 IPS TFT LCD module |
