Wi-Fi® 6 1x1 Concurrent Dual Wi-Fi (CDW) and Bluetooth® 5.3 Combo SoC

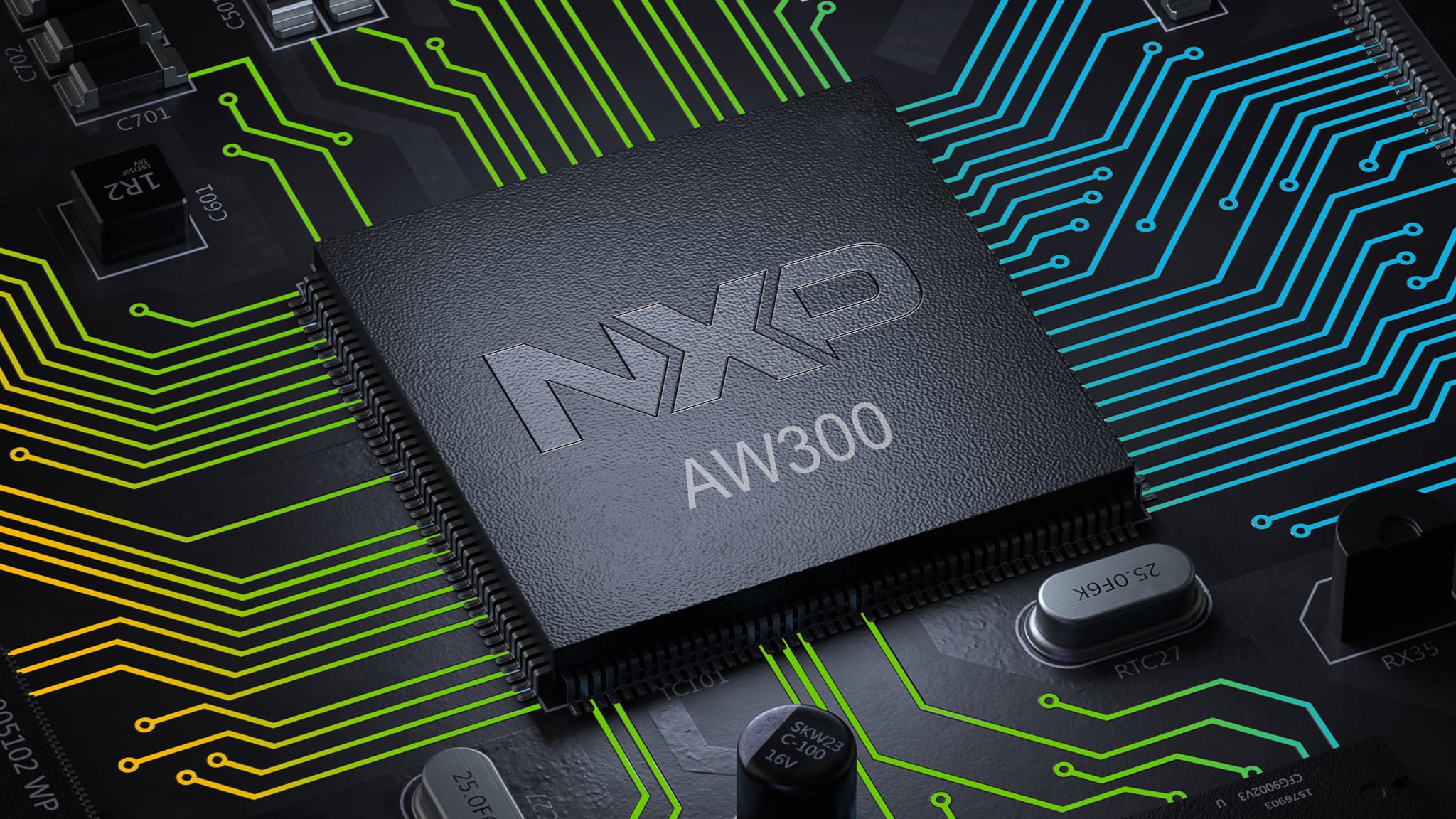

AW300: Bluetooth/ Bluetooth Low Energy Controller for Automotive Solutions
The AW300 is a Bluetooth/ Bluetooth Low Energy single-chip solution optimized for the automotive market with AEC-Q100 Grade 2 and AEC-Q100 Grade 3 qualification. The device supports Bluetooth Profiles such as hands free (HFP), advanced audio distribution profile (A2DP) for audio streaming as well as additional profiles like dual wideband speech (WBS). For Bluetooth Low Energy, the AW300 supports 2 Mbit/s high-speed data rate, long range and extended advertising. In addition, LE Audio and Auracast™ Broadcast Audio are supported using Isochronous channels for a better overall audio experience.
製品詳細
ブロック図
図を選択する。:
Features
Bluetooth Key Features
- Bluetooth LE 2 Mbit/s, Long Range, Advertising Extensions
- Isochronous channels (ISOC) supporting LE Audio and Auracast™ Broadcast Audio
- SCO/eSCO voice support with HFP profile
- Bluetooth and Bluetooth LE audio and voice profiles
- UART host interface
General Features
- AEC-Q100 Grade 2 (-40 °C to +105 °C)
- AEC-Q100 Grade 3 (-40 °C to +85 °C)
- External coexistence interface for connection to external radios such as LTE
