The i.MX287 multimedia applications processor offers an ideal fit for portable devices that require rich user interfaces with high color displays for presented information and user interaction.

Reduces system cost and complexity
Provides greater flexibility in system design
Provides a high level of peripheral integration: display, connectivity, real-time control, security, networking
Optimizes performance and power consumption
Backed by strong enablement for designing differentiated products in less time

データシート

リファレンス・マニュアル

製品詳細

ブロック図

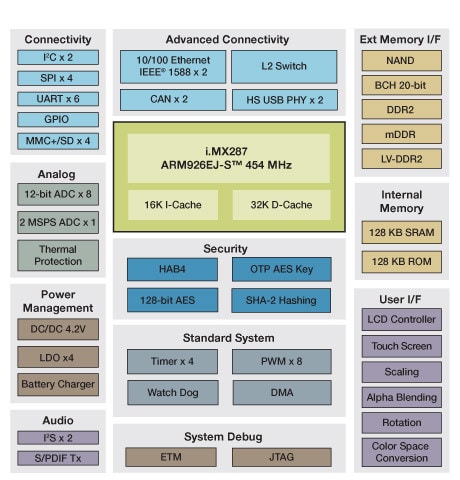

i.MX287 Multimedia Applications Processor Block Diagram

i.MX287 Multimedia Applications Processor Block Diagram

図を取得する PDF

Features

454MHz Arm926EJ-S™ core with 16KB/32KB Cache
PMU with high efficiency on-chip DC/DC, supports Li-Ion batteries
10/100 Dual IEEE^® 1588 Ethernet with RMII support and L2 Switch
Dual CAN interfaces
LCD Controller with Touchscreen
NAND support – SLC/MLC and eMMC 4.4 managed
Hardware BCH (up to 20-bit correction)
200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support
Dual High-speed USB with embedded PHY
8 General purpose 12-bit ADC channels and single 2 Msps ADC channel
Temperature sensor for thermal protection
Multiple connectivity ports (UARTs, SSP, SDIO, SPI, I2C, I2S)
3.3V I/O, 10 year lifetime (Industrial)
Package and Temperature
- 289 BGA 14x14mm .8mm
- -40C to +85C (Industrial)
This product is included in NXP's product longevity program, with assured supply for a minimum of 15 years after launch

設計・リソース

設計・ファイル

3 設計・ファイル

^モデル
i.MX28 Processors IBIS Model Files

ZIP改訂 2Jan 24, 2011 00:00:00371.2 KBIMX28IBIS
サインインが必要です

ダウンロード
^モデル
i.MX28 BSDL File

ZIP改訂 2Sep 20, 2011 00:00:007.3 KBIMX28BSDL
サインインが必要です

ダウンロード
^{プリント基板と回路図}
i.MX28 Reference Schematics

ZIP改訂 DJun 18, 2015 00:00:001.2 MBIMX28REFSCH
サインインが必要です

ダウンロード

ハードウェア

1-5 の 7 ハードウェア提供

^{評価・開発ボード}
i.MX28 Evaluation Kit注目

MCIMX28EVKJ
^{エミュレータ、プローブ、プログラマ}
Tool and documentation for downloading i.MX28 image during manufacturing

I.MX28_MFG_TOOL_LINUX
サインインが必要です
^{エミュレータ、プローブ、プログラマ}
IMX_MFG_TOOL

IMXMFG_TOOL
サインインが必要です
追加ハードウェアを利用可能パートナー・ソリューションの特集を表示.
^{エミュレータ、プローブ、プログラマ}
Command-line tool used to download a firmware image to target platform to run in RAM. Supports i.MX23/28/508 platforms.

IMX_SB_LOADER
^{エミュレータ、プローブ、プログラマ}
Source Code for the i.MX manufacturing tool used for downloading OS images to the i.MX53, i.MX51, i.MX50, i.MX28 and i.MX23.

IMX_MFG_TOOL_SOURCE
サインインが必要です
^{エミュレータ、プローブ、プログラマ}
Windows Tool for the creation of boot SD cards for the i.MX platforms. Includes binaries and sources files.

CF_IMAGER
サインインが必要です
^{エミュレータ、プローブ、プログラマ}
IMX_OTP_TOOLS

IMX_OPT_TOOLS

1-5 の 27 ハードウェア提供

^{評価・開発ボード}
Ka-Ro TX Mainboard 7 Development Kit

Development system for Ka-Ro TX standard modules: TX25, TX27, TX28, TX28S, TX51, TX53, TX6Q, TXDL, TXS and the new TXUL based on the i.MX 6 Ultra Lite processor

By Ka-Ro electronics GmbH Gold パートナー
^{評価・開発ボード}

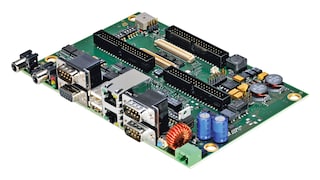

STKa28

ARM 9 Evaluation Board based on i.MX287

By TQ-Systems GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum パートナー
^{テストアクセサリとデバッガ}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Universal Access Device 3+ (UAD3+)

The UAD3+, equipped with up to 4 GB of trace memory and powerful interfaces to target and host, is the right solution for trace, multicore debugging, profiling and code c...

By PLS Development Tools Gold パートナー
^{テストアクセサリとデバッガ}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
TRACE32 JTAG/SWD Debugger for ARM

Lauterbach is making world class microprocessor development tools since 1979. TRACE32 debug and real-time trace solutions support the whole range of NXP processors.

By Lauterbach Gold パートナー
^{テストアクセサリとデバッガ}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum パートナー
^{テストアクセサリとデバッガ}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Universal Access Device 2next (UAD2next

The (UAD2next) combines the state-of-the-art debugging features and CAN with trace capabilities. It can be extended by plugin trace modules supporting e.g. ARM CoreSight ...

By PLS Development Tools Gold パートナー
^{テストアクセサリとデバッガ}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold パートナー
^{テストアクセサリとデバッガ}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum パートナー
^{テストアクセサリとデバッガ}
Universal Access Device 2pro (UAD2pro)

The UAD2pro offers fast and flexible communication between Universal Debug Engine on the Host PC and the microcontroller target. Host interface is USB 2.0. Target interfa...

By PLS Development Tools Gold パートナー
^{テストアクセサリとデバッガ}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum パートナー
^{コンパニオン・シリコンとモジュール}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold パートナー
^{コンパニオン・シリコンとモジュール}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold パートナー
^{コンパニオン・シリコンとモジュール}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold パートナー
^{組込みボードソリューション}

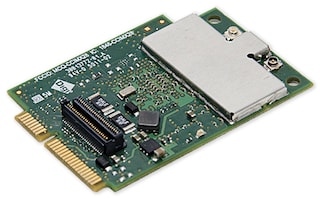

ConnectCard WiFi i.MX28
