OM13085
-

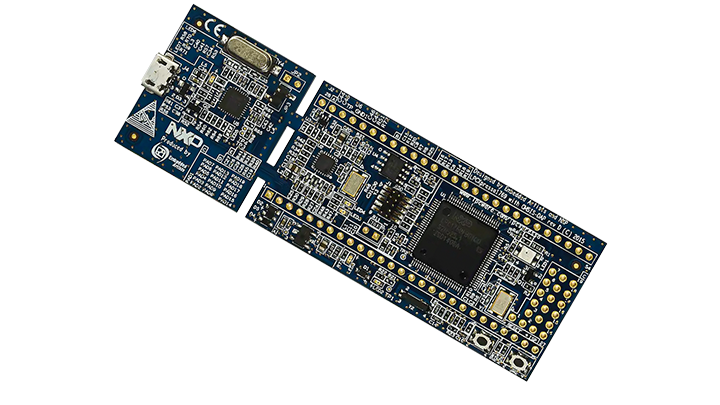

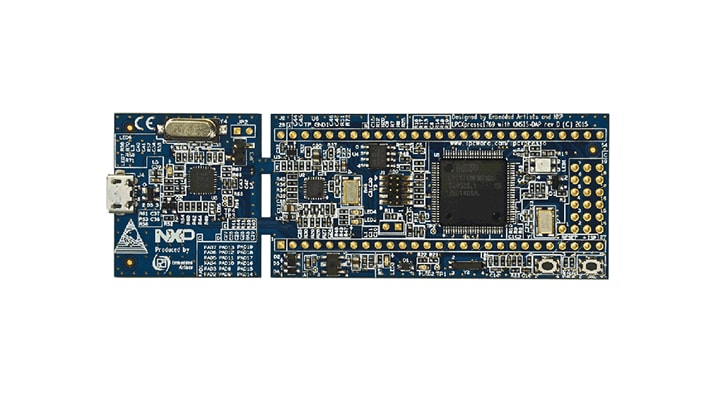

LPCXpresso board for LPC1769 with CMSIS DAP probe.
設計・ファイル
2 設計・ファイル
-
プリント基板と回路図
LPCXpresso LPC1769 CMSIS-DAP rev D
-
プリント基板と回路図
LPCXpresso LPC1769 with CMSIS DAP - BOM
LPCXpresso board for LPC1769 with CMSIS DAP probe
OM13085 アラートの受信
Pioneered by NXP® and Embedded Artists, the LPCXpresso™ development platform includes low-cost LPCXpresso target boards to get you up and running quickly. Designed for simple, rapid prototyping and evaluation, LPCXpresso™ development boards work with the LPCXpresso IDE and other common partner toolchains. LPCXpresso™ is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.
This LPCXpresso™ board is populated with the LPC1769 to demonstrate and enable evaluate of the features of the LPC1700 product series. The board includes an on-board, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.
Note: When using the OM13085 board with the LPCXpresso IDE, version 7.9.0 that tool is required.
Order Number: OM13085
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
LPC1700 Cortex-M3
- LPC1769FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
Features
Microcontroller
- LPC1769 Cortex-M3-based microcontroller
Debug
- Integrated CMSIS-DAP debug probe
- Debug probe section of the board can be snapped off to reduce board size
- 10-pin SWD connector for use with an external debug probe
Connectivity
- Ethernet 10/100 PHY
- LPCXpresso/mbed debug expansion connectors
User Components
- Reset and ISP boot mode buttons
- Tricolor LED
購入オプション
設計・リソース
ソフトウェア
1 ソフトウェア・ファイル
-
ホストデバイスドライバー
Firmware and drivers for LPC11U35 debug probes
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
