OM11036
-
Keil LPC1758 Evaluation Board.

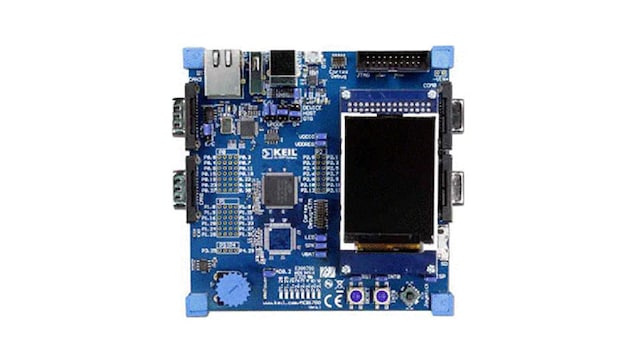

Keil LPC1758 Evaluation Board
OM11036 アラートの受信
- アーカイブス
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The Keil LPC1758 Evaluation Board allows you to quickly and easily evaluate the LPC175x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M3 project.
Populated with the LPC1758 to demonstrate LPC175x features, the LPC1758 board allows the evaluation of the high level integration and low power consumption of the LPC1758. The board requires an external debug probe, such as the LPC-Link2.
Order Number: OM11036
Populated with the LPC1758 to demonstrate LPC175x features, the LPC1758 board allows the evaluation of the high level integration and low power consumption of the LPC1758. The board requires an external debug probe, such as the LPC-Link2.
Order Number: OM11036
製品詳細
Features
Debug
- Debug Interface Connectors
Display
- Color QVGA TFT LCD
Audio
- Amplifier and Speaker
- 10/100 Ethernet Port
- USB 2.0 Full Speed - USB, USB-OTG, and USB Host
- 2 CAN interfaces
- 2 Serial Ports
- SD/MMC Card Interface
- 5-position Joystick and push button
- Analog Voltage Control for ACD Input
- Up to 70 GPIO
