Kinetis® K70 System-On-Module (SOM) and Starter Kit from EmCraft Systems

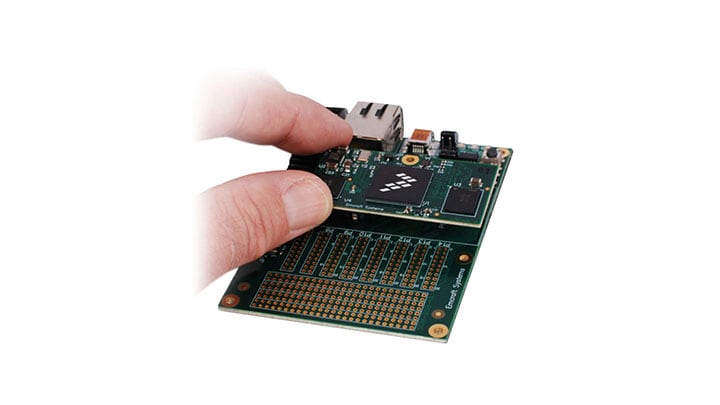

The K70 System-On-Module (SOM) from EmCraft Systems is designed to make it easy, quick, and cost-effective for you to start using the Kinetis K70 or K61 device and uClinux software. This SOM comes preloaded with uClinux and U-Boot. Full source code of the Linux BSP is provided, along with a Linux cross-development environment. Pricing is $49 US in 500-unit quantities.

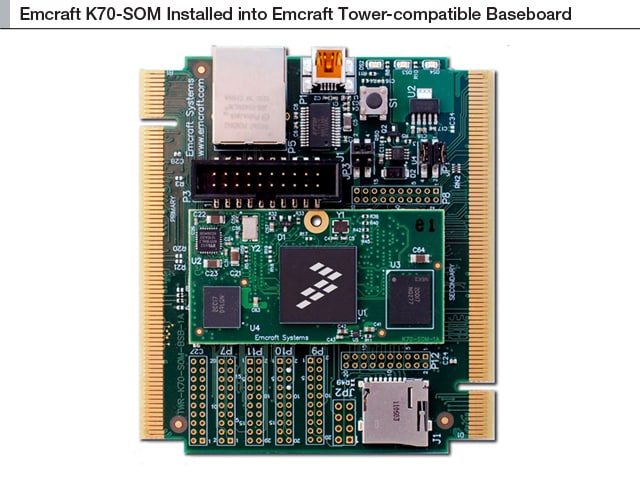

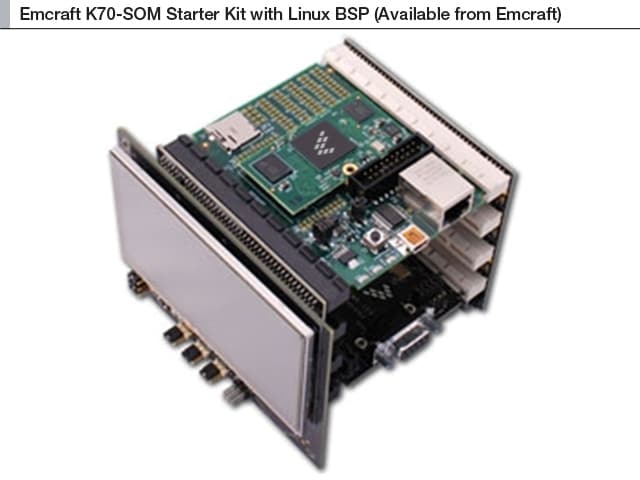

An additional K70-SOM Starter Kit is also available that features the K70 SOM, a baseboard module compatible with the Tower® System and Linux BSP. For more information on the SOM, Linux BSP, and Starter Kit, go to: http://www.emcraft.com/NXP-Kinetis-K70
Purchase Starter Kit from EmCraft Systems for $159 US now.製品詳細
対応製品
プロセッサ＆マイクロコントローラ
K7xグラフィックLCD
- K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core
Features
Hardware Features

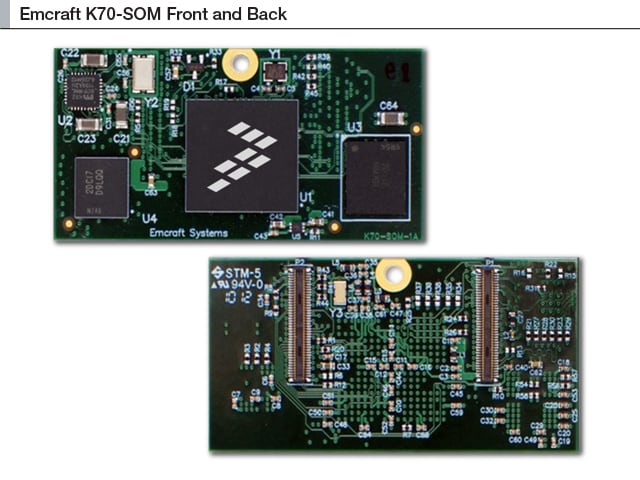

- Compact (30 mm x 57 mm) mezzanine module
- External interface using two 80-pin 0.4mm-pitch connectors
- Compliant with the Restriction of Hazardous Substances (RoHS) directive
- Mounting hole reducing the risk of connector-to-PCB intermittence
- 150 MHz Kinetis® K70 (256-pin MAPBGA)
- Powered from single +3.3 V power supply
- Low-power mode
- Deep-sleep power mode
- On-module clocks
- 64 MB LPDRAM
- 128 MB NAND flash
- Serial console interface
- 802.3 Ethernet interface
- Watchdog Timer (WDT)
- Real-Time Clock (RTC)
- Uncommitted interfaces of K70 available on the interface connectors.
Software Features
- Ethernet device driver and networking (ping, NFS, Telnet, FTP, ntpd, etc.)
- SNMP agent
- Secure shell (ssh) server
- Web server (httpd)
- Frame buffer device driver and QT graphics library
- Flash file system with wear-leveling
- POSIX threads
- Process-to-kernel and process-to-process protection using the Memory Protection Unit (MPU) of the Kinetis core
- Hardened exception handling; an exception triggered by a process affects only the offending process
- Ability to run portions of Linux kernel code from internal Flash of Kinetis
- Loadable kernel modules
