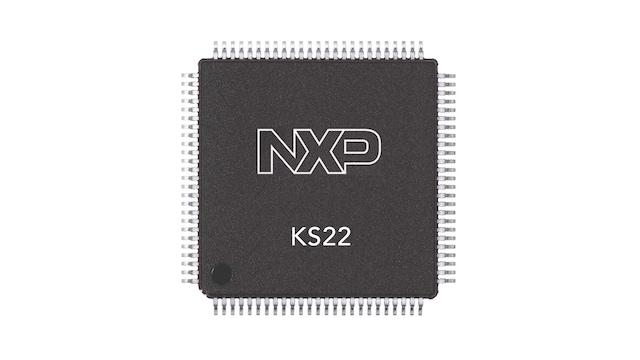

画像にカーソルを合わせると拡大表示されます。

The KS22 and KS20 MCUs are based on the ARM^® Cortex^®-M4 core with 120MHz with FPU, offering full-speed USB 2.0 OTG and dual CAN, in addition to other features like USB crystal-less functionality. These MCUs have 128 KB and 256 KB of flash, 64 KB SRAM as well as LQFP and QFN packages. They provide various levels of integration, with a rich suite of analog, communication, timing and control peripherals.

データ・シート

リファレンス・マニュアル

製品詳細

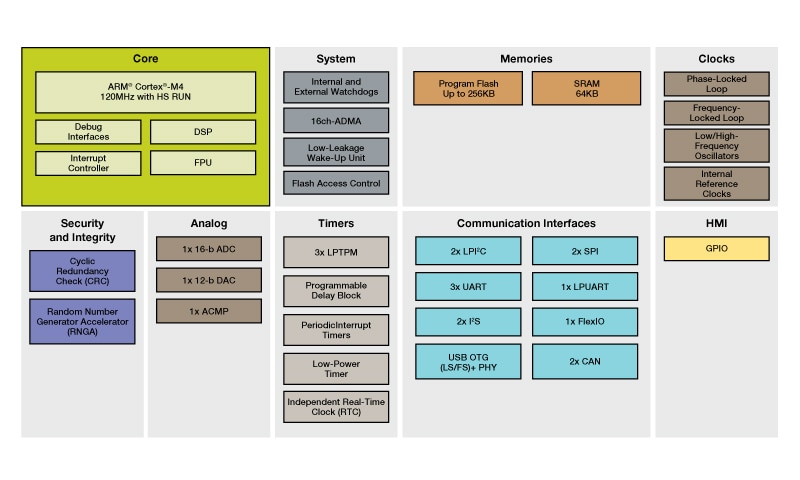

ブロック図

KS2X Block Diagram

図を取得する PDF

Features

Ultra-Low-Power

10 low-power modes with power and clock gating for optimal peripheral activity and recovery times
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to eight internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continual system operation in reduced power state

Flash, SRAM and FlexMemory

128 KB-256 KB Flash. Fast access, high reliability with four-level security protection
64 KB SRAM

Performance

ARM Cortex-M4 core + DSP. 120 MHz, single-cycle MAC, single instruction multiple data (SIMD) extensions, single precision floating point unit
Up to 16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Cross bar switch enables concurrent multi-master bus accesses, increasing bus bandwidth

Mixed-Signal Capability

16-bit analog-to-digital converters (ADCs) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state

Timing and Control

Up tp 3 PWM and 1 TMR, can be operated in low-power mode
Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Intergace (HMI)

Up to 66 controllable GPIO with pin interrupt support

Connectivity and Communications

USB 2.0 On-The-Go (full-speed) with USB crystal-less functionality
1x LPUART that can be operated in low-power mode, 3x UART that support IrDA, one of them support ISO7816 smart card. Support different data side, format, and send/receive settings, compatible with multiple industry communication protocols
2x Inter-IC Sound (I2S) serial interface for audio system interfacing
2x CAN module for industrial network bridging
2x SPI
2x LPI2C, can be operated in low-power mode
1x FlexIO module that can be configured as different interface (e.g. UART/SPI/I2C/I2S), support operating in low-power mode

Reliability, Safety and Security

Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs

購入/パラメータ

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

ドキュメント

クイック・リファレンスドキュメンテーションの種類

4 ドキュメント

コンパクトリスト

Kinetis KS22 Microcontroller Datasheet[KS22P100M120SF0]

PDFJul 21, 2022改訂 3.1

MAPS-KS2XF256 V1.0.0 Suite User Guide[MAPSKS2XF256UG]注目

PDFDec 15, 2015改訂 0
Getting Started with the Kinetis Flashloader[KFLLDRUG]注目

PDFApr 24, 2016改訂 2

KS22 Sub-Family Reference Manual[KS22P100M120SF0RM]

PDFMay 1, 2016改訂 3
