8-bit EEPROM with LIN S08EL and S08SL MCUs

S08EL-SL

S08EL and S08SL 8-bit microcontrollers with embedded Follower LIN Interface Controller (SLIC) and EEPROM help to increase LIN follower performance and reduce development time. NXP® Semiconductors's 8-bit EL and SL families of microcontrollers (MCUs) are designed for LIN follower and general market applications. The EL family is positioned as higher end, offering higher memory and more peripherals, while the SL family is intended for more cost-sensitive applications.

An application focus area of the EL and SL families is' Local Interconnect Network (LIN). LIN is a UART-based, single-leader, multiple-follower networking architecture originally developed for automotive sensor and actuator networking applications.

製品詳細

セクションを選択:

ブロック図

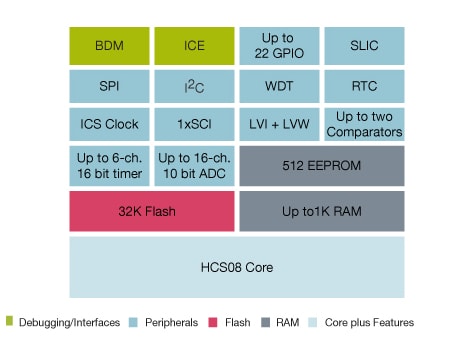

Freescale S08SL Microcontroller Block Diagram

Freescale S08EL-SL Microcontroller Block Diagram
図を取得する PDF

Features

8-Bit HCS08 Central Processing Unit (CPU)

  • Up to 20 MHz internal bus (40 MHz HCS08 Core) frequency offering 2.7 to 5.5V across temperature range of -40°C to 85°C

On-Chip Memory

  • Up to 32K flash read/program/erase over full operating voltage and temperature
  • Up to 512 Bytes EEPROM

Power Saving Modes

  • Two very low-power stop modes
  • Reduced power wait mode
  • Very low-power real-time interrupt for use in run, wait, and stop

Clock Source Options

  • Oscillator (XOSC) — Loop-control Pierce oscillator; Crystal or ceramic resonator range of 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz
  • Internal Clock Source (ICS) — FLL modes; Internal reference clock with trim adjustment

Periperals

  • Follower LIN interface controller (SLIC)— Supports LIN 2.0 and SAE J2602 protocols; up to 120 kbps, full LIN message buffering, automatic bit rate and frame synchronization, checksum generation and verification, UART-like byte transfer mode
  • Analog to digital converter (ADC)—Up to 16-channel, 10-bit resolution
  • Serial communications interface (SCI) —with LIN 2.0 Protocol and SAE J2602 compliance; Leader extended break generation; Follower extended break detection; LIN follower supplement on SCI1; Automatic baud rate correction; Message time-out detection
  • RTC—(Real-time counter) 8-bit modulus counter with binary or decimal based prescaler; External clock source for precise time base, time-of-day calendar or task scheduling functions; Free running on-chip low power oscillator (1 kHz) for cyclic wake-up wit

Input/Output

  • 16 interrupt pins with selectable polarity
  • 22 general purpose input/output (GPIO)s

System Protection

  • Low-voltage detection with reset or interrupt; selectable trip points
  • Flash block protection
  • EEPROM block protect

Hardware Development Support

  • Single-wire background debug interface
  • On-chip in-circuit emulator (ICE) debug with real time bus capture

Product Longevity Program
