TEA1999Tk USB BC1.2 Synchronous Rectifier Controller for Flyback.
- TEA1999DB1504 Demo board
- Quick start guide
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
TEA1999DB1504-GRBR.zip
TEA1999Tk USB BC1.2 Synchronous Rectifier Controller for Flyback
TEA1999DB1504 アラートの受信

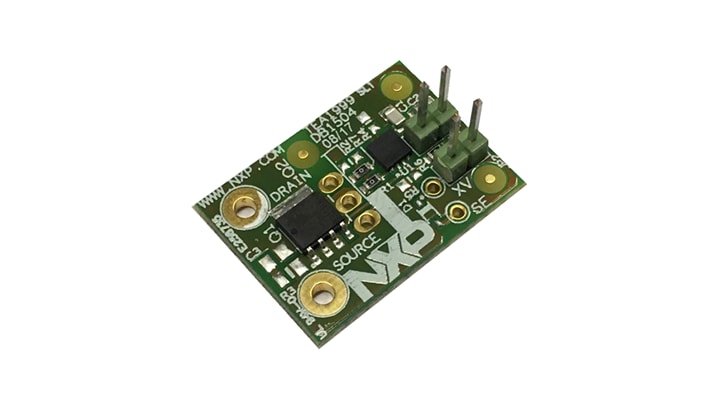

The TEA1999TK add-on board is designed for incorporation into existing flyback power supplies, by replacing the secondary rectifier diode. The add-on board consists of the TEA1999TK SR controller IC and a low-ohmic MOSFET.
It can be used in all power supplies that require a high efficiency, like:- Chargers
- Adapters
- Flyback power supplies with very low and/or variable output voltage
製品詳細
対応製品
パワーマネージメント
セカンダリ・サイド・コントローラ
- TEA1999TK: GreenChip Synchronous Rectifier Controller
Features
Efficiency features
- Adaptive gate drive for maximum efficiency at any load
- Typical supply current in no-load operation below 250 μA
Application features
- Operates in an output voltage range between 26 V and 0 V
- Drain sense pin capable of handling input voltages up to 120 V
- Self-supplying for operation with low output voltage
- Self-supplying for high-side rectification without the use of an auxiliary winding
- Operates with standard and logic level SR MOSFETs
- Supports USB BC, Quick Charge, and smart charging applications
- HVSON8 package
Control features
- Adaptive gate drive for fast turn-off at the end of conduction
- UnderVoltage LockOut (UVLO) with active gate pull-down
- Blanking input for low and high switching frequency
- Enable input for CCM operation and for disabling at start-up or shorted output
